Product Description

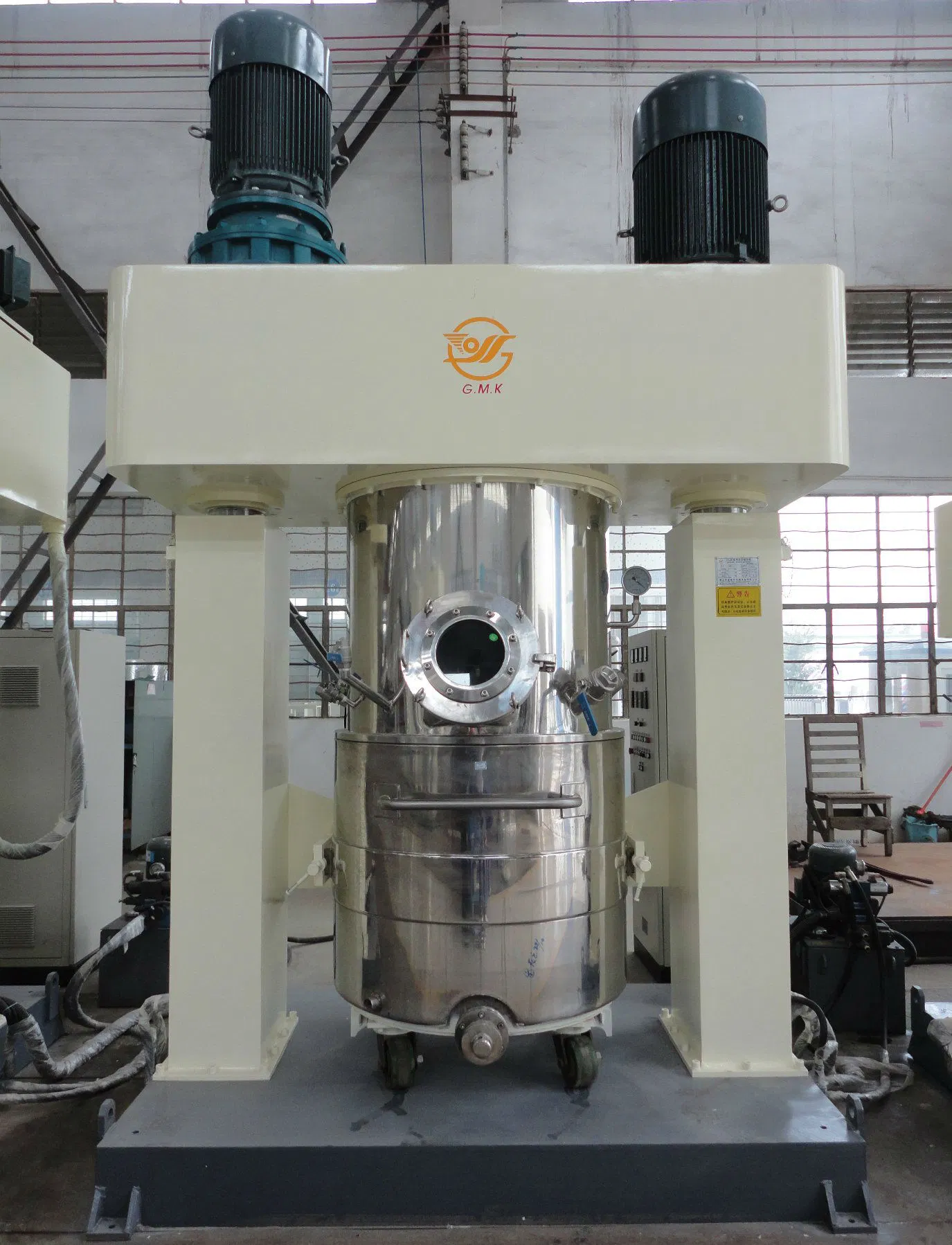

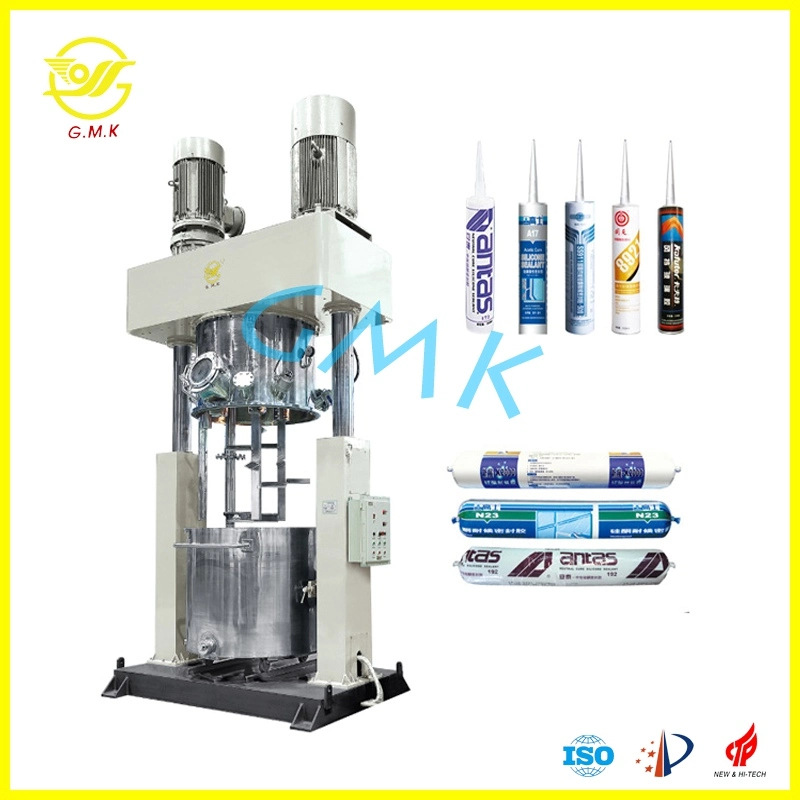

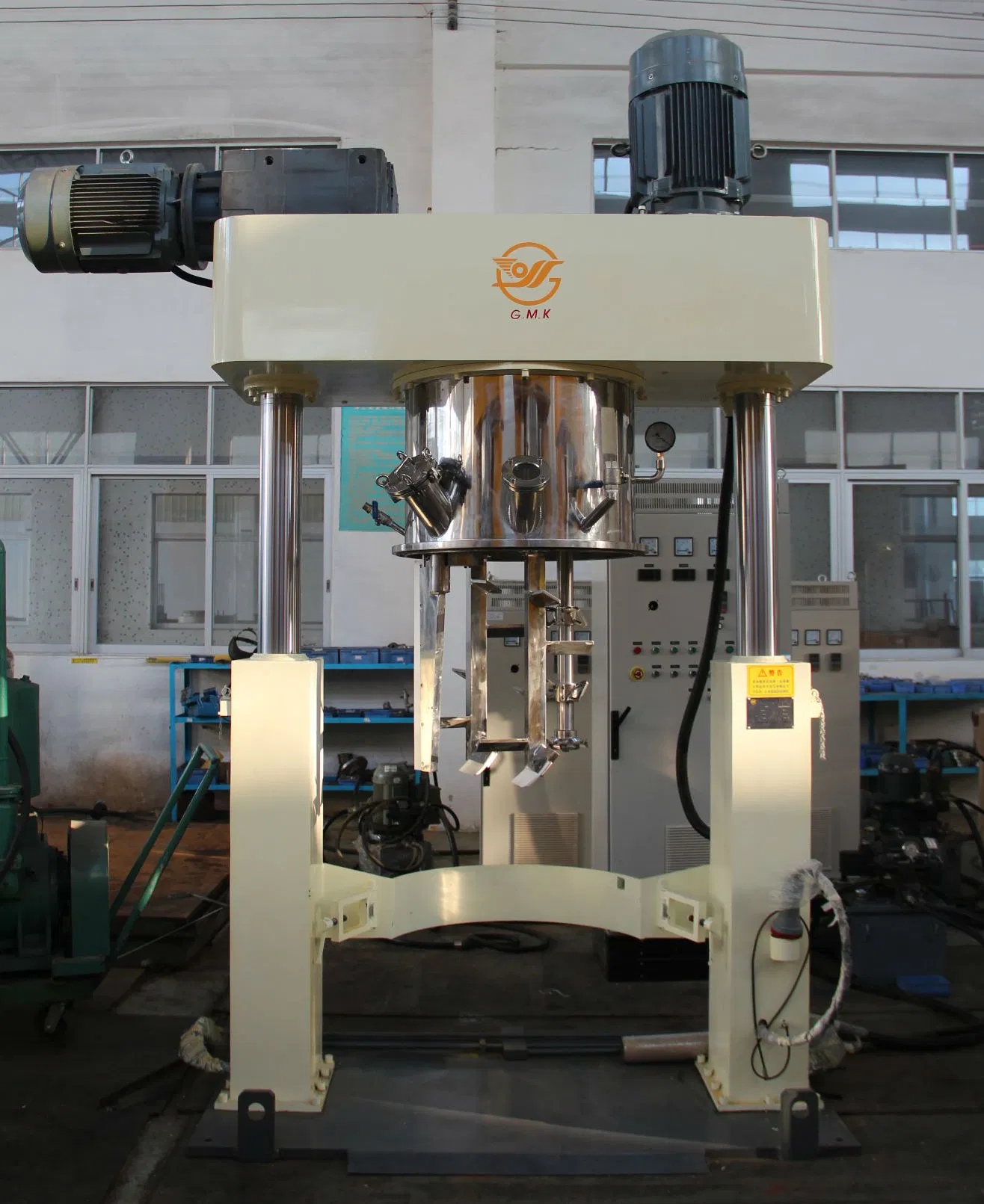

Silicone sealant, Ms, PU sealant mixer Gantry Type Double Planetary Mixer with Disperser
Main Characters
- Dispersing power mixing
- High speed operation (3000 Rpm)
- Vacuum, cooling and heating function
- No dead point mixing design
- Suitable for PU, RTV, HTV, Acrylic sealants
- CN, ISO9001 Certified

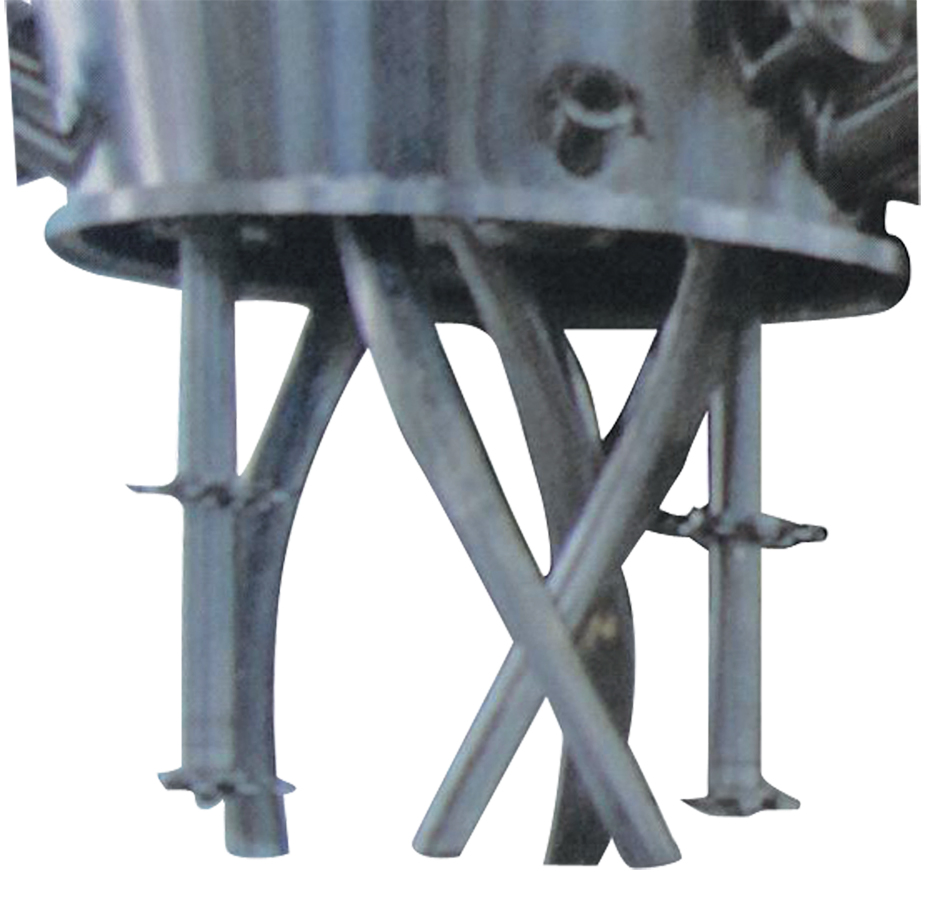

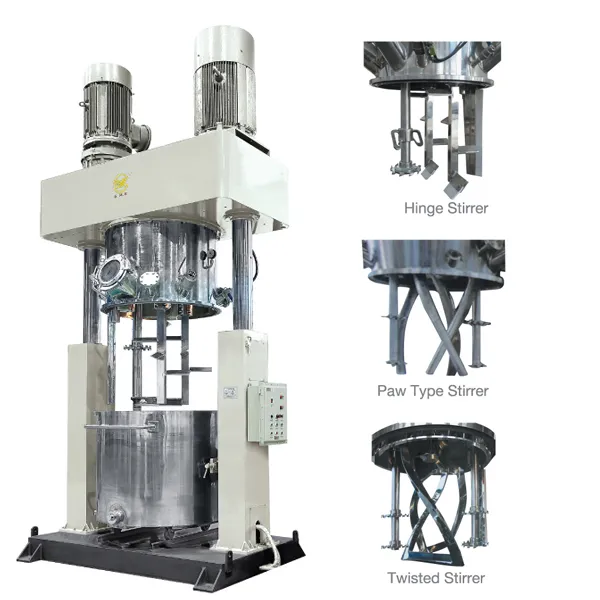

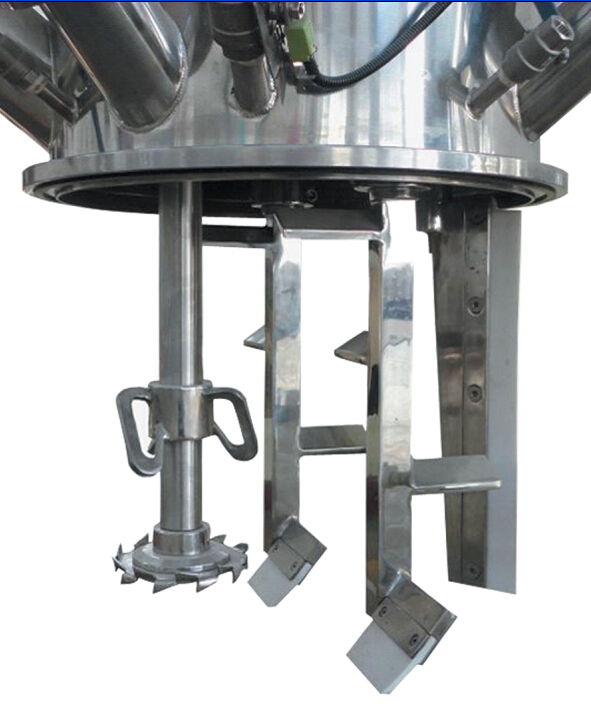

Planetary dispersing power mixer is a kind of no-dead-spot power mixing and dispersion equipment. It adopts unique stirring mechanism, with bottom vessel fixed and unmoved, with dispersion discs and stirrers making planetary movement of revolution and rotation, with speed adjustment by frequency inverter.
It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead spot. An automatic wall scraper mechanism is designed in the vessel, which continuously scrapes the materials adhering to the wall.
The equipment is uniquely sealed, can be pressurized or vacuumized. It is widely used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, grinding, dissolving, homogenizing and emulsification, etc. It is an ideal equipment for production of ink, pigment, adhesive, sealant, paste, lubricant, paint, cosmetics, and additives.
| MODEL |
NOMINAL CAPACITY |
VACUUM DEGREE |
VESSEL TYPE |
DISCHARGE MODE |
| DLH-2.5L | 2.5L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-5L | 5L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-10L | 10L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-20L | 20L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-50L | 50L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-100L | 100L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-200L | 200L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-300L | 300L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-600L | 600L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-1100L | 1100L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-1500L | 1500L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |
| DLH-2000L | 2000L | -0.098MPa | Heating/Cooling Jacket | Plug / Ball valve |

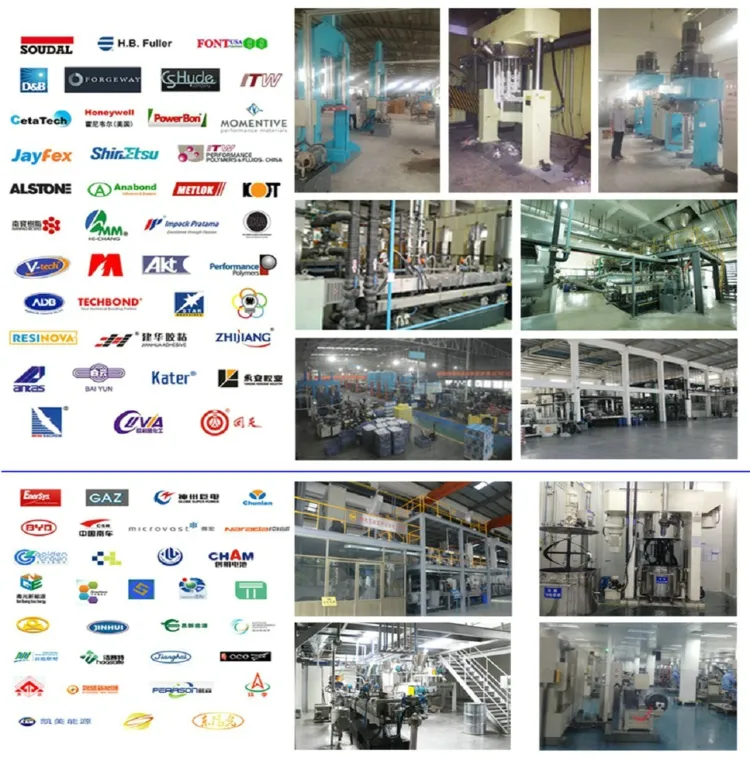

Workshop & Production
Frequently Asked Questions
Q: What types of sealants is this mixer compatible with?
A: This planetary mixer is ideal for PU sealants, RTV sealants, HTV sealants, Acrylic sealants, and MS polymers.
Q: How does the "no-dead-spot" mixing mechanism work?
A: It uses a unique planetary movement where the stirrers revolve and rotate simultaneously. Combined with an automatic wall scraper, it ensures all materials are fully dispersed without any residues on the vessel walls.
Q: Can the mixer handle vacuum and temperature control?
A: Yes, the equipment is uniquely sealed for vacuum operation (-0.098MPa) and features a jacketed vessel for electric, steam, or oil heating, as well as water or oil cooling.
Q: What is the maximum speed and capacity available?
A: The mixer can reach speeds up to 3000 Rpm. We offer a wide range of models with nominal capacities ranging from laboratory scale (2.5L) to industrial production (2000L).
Q: What industries typically use this equipment?
A: It is widely used in chemical, pharmaceutical, foodstuff, building materials, and cosmetics industries for mixing adhesives, pigments, lubricants, and emulsions.
Q: How is the product protected during international shipping?
A: All mixers are professionally packed in robust wooden cases to ensure safety during transit and meet international shipping standards.
