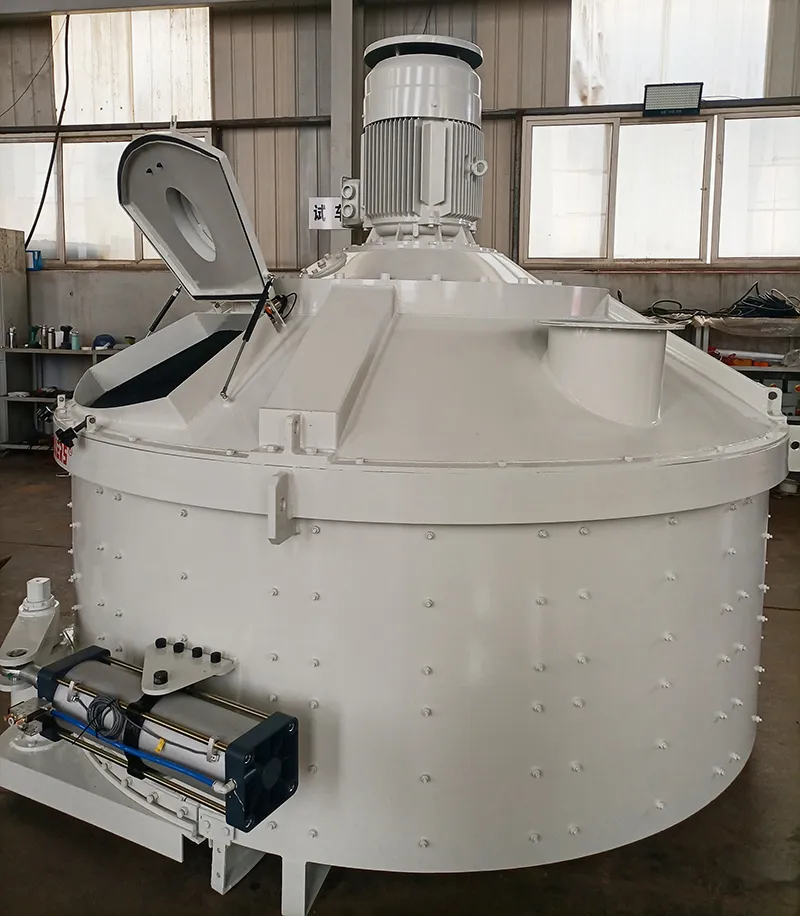

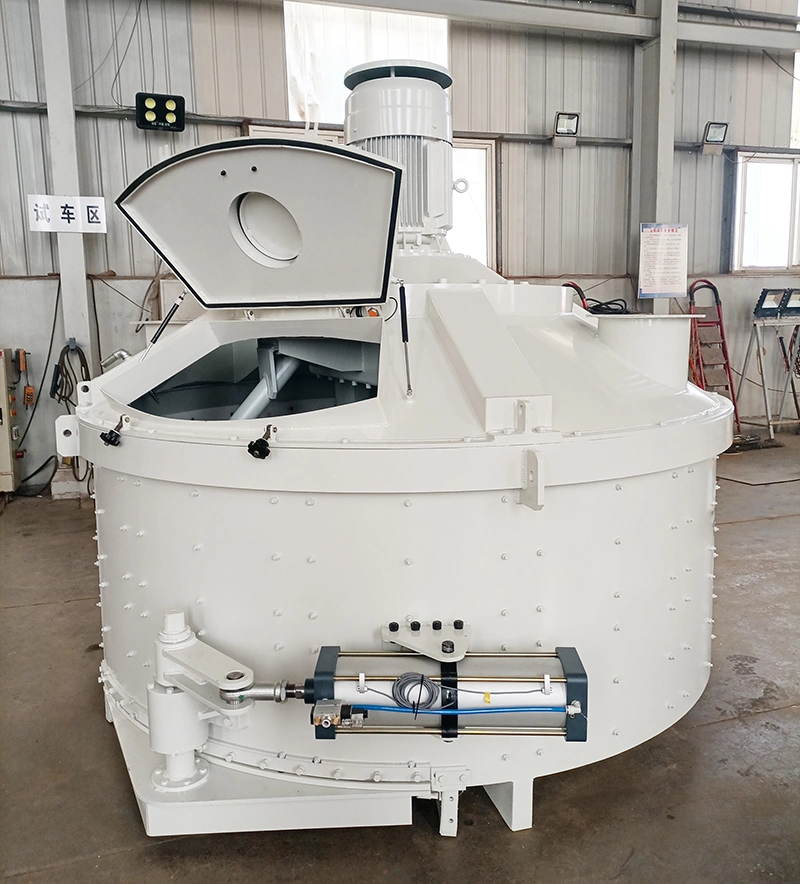

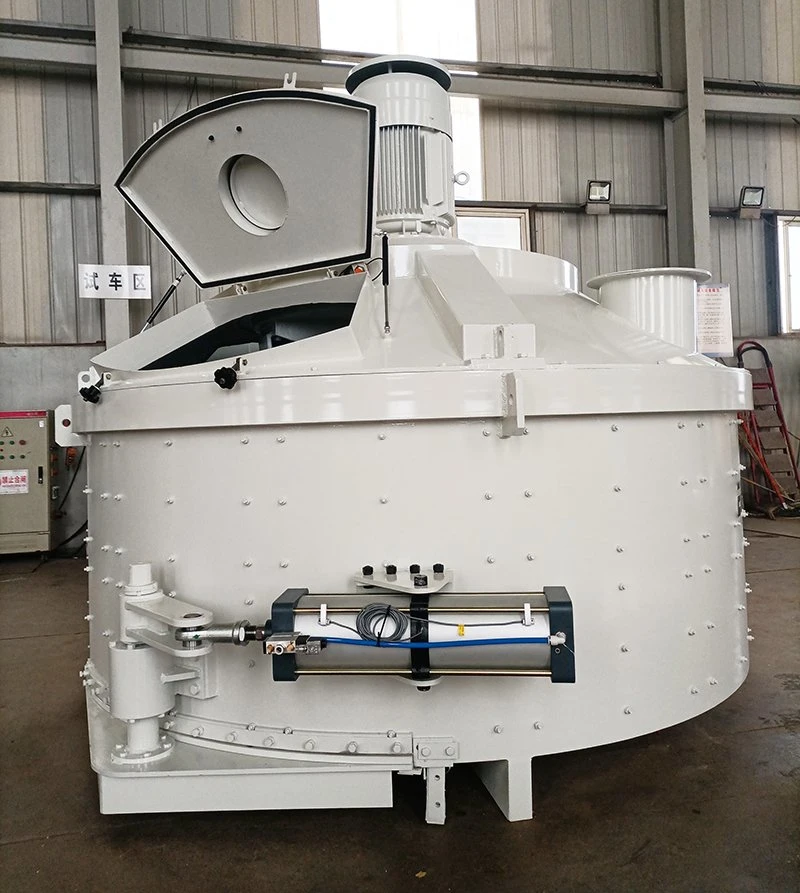

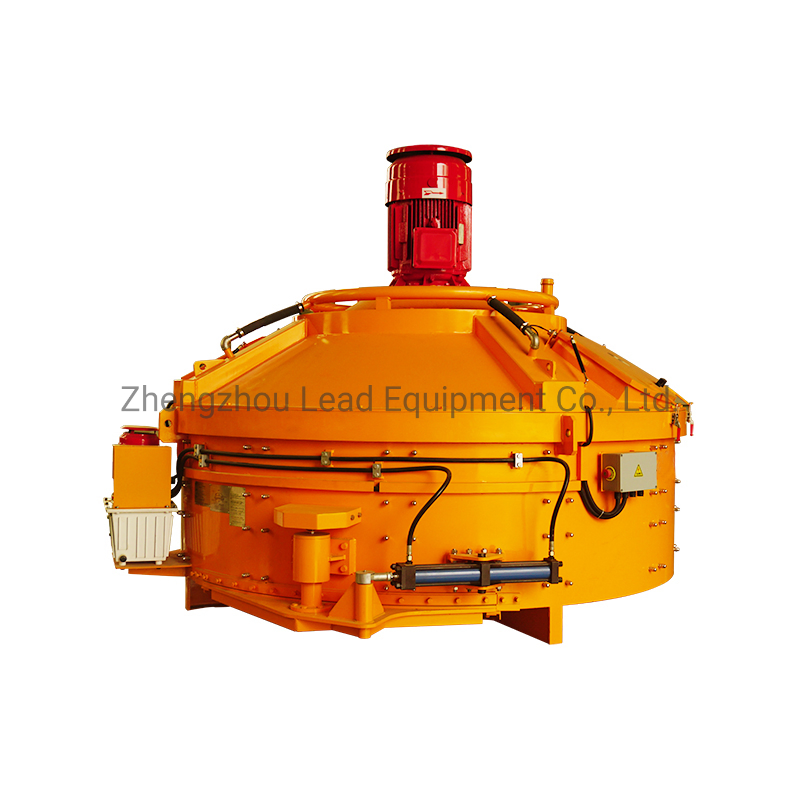

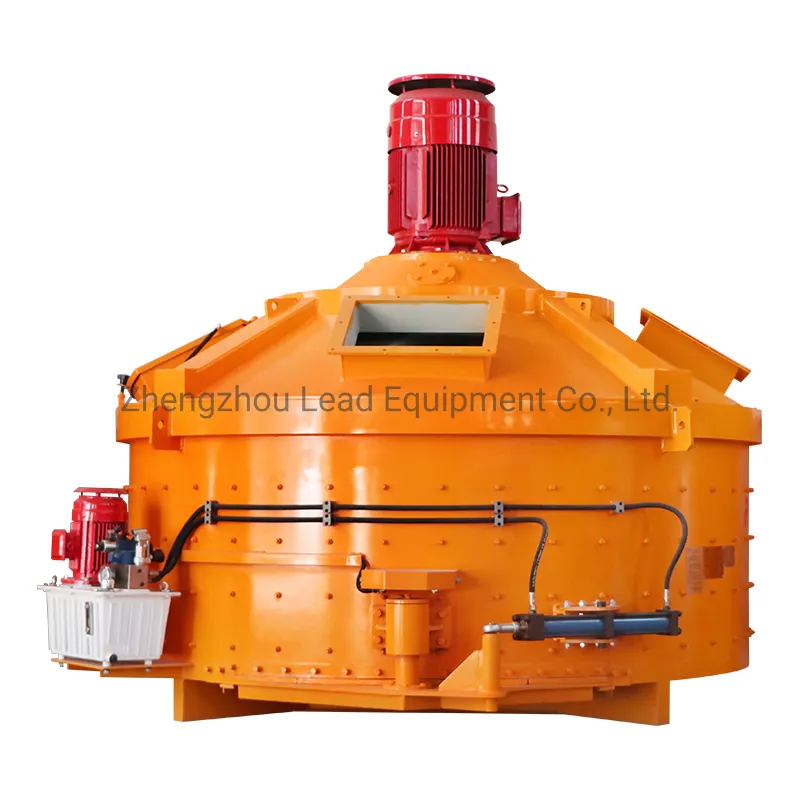

Refractory mixer Counter Current Planetary Concrete Mixer Price for Sale

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.:LCPM
Certification:CE, ISO, SGS
Mixing Capacity:50-3000L
Power Source:Electric
Mixing Power:3-110Kw
Main Material:Cast Iron, Customizable
Warranty:1 Year
Production Capacity:1000 sets/Year
Product Description
LCPM counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, which can reach homogenous mixing in the shortest time. It can also be widely used for glass, ceramics, refractories, fertilizer, concrete, etc.
Note: All products can be customized according to your specific requirements regarding capacity, power, and materials.

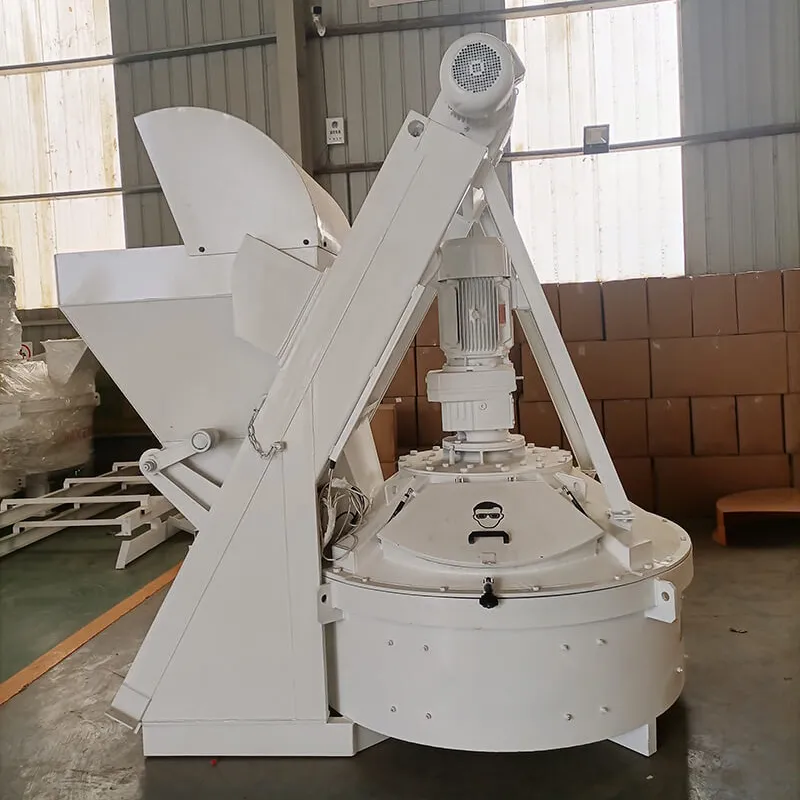

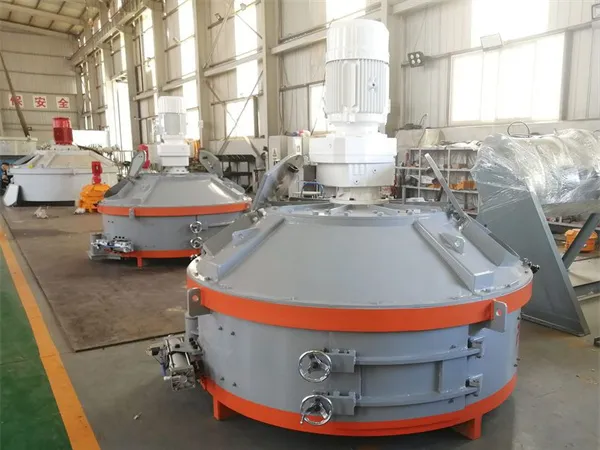

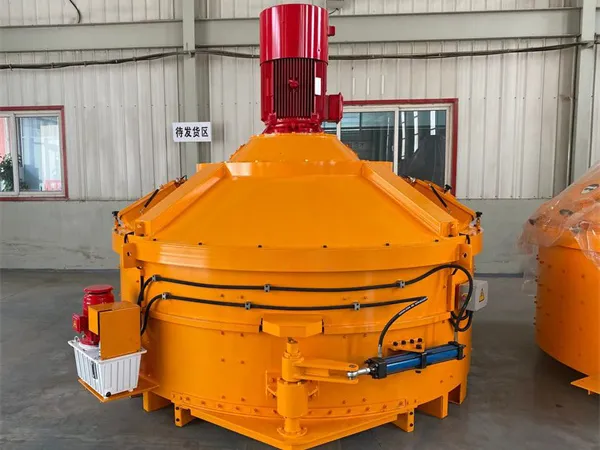

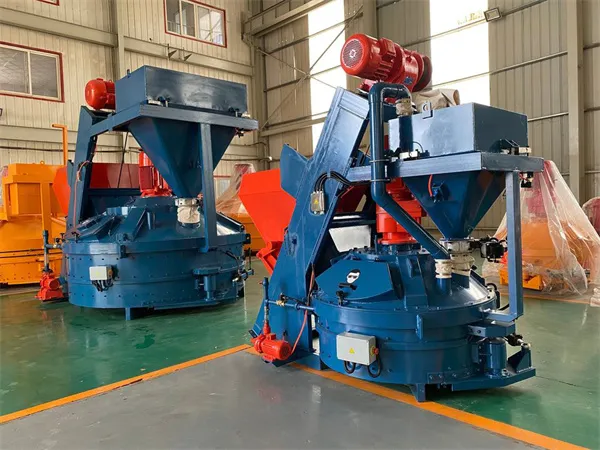

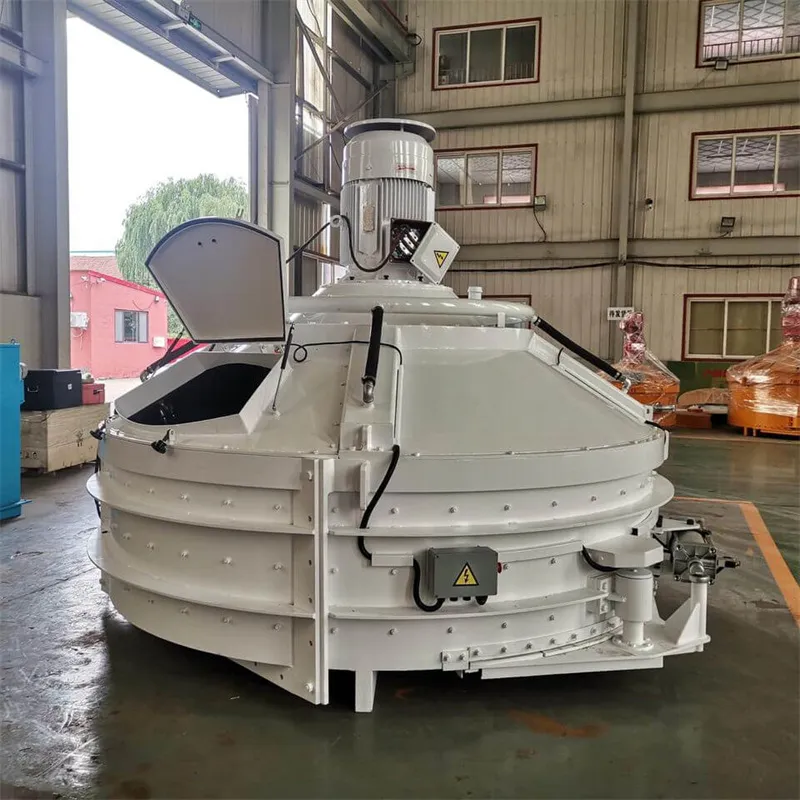

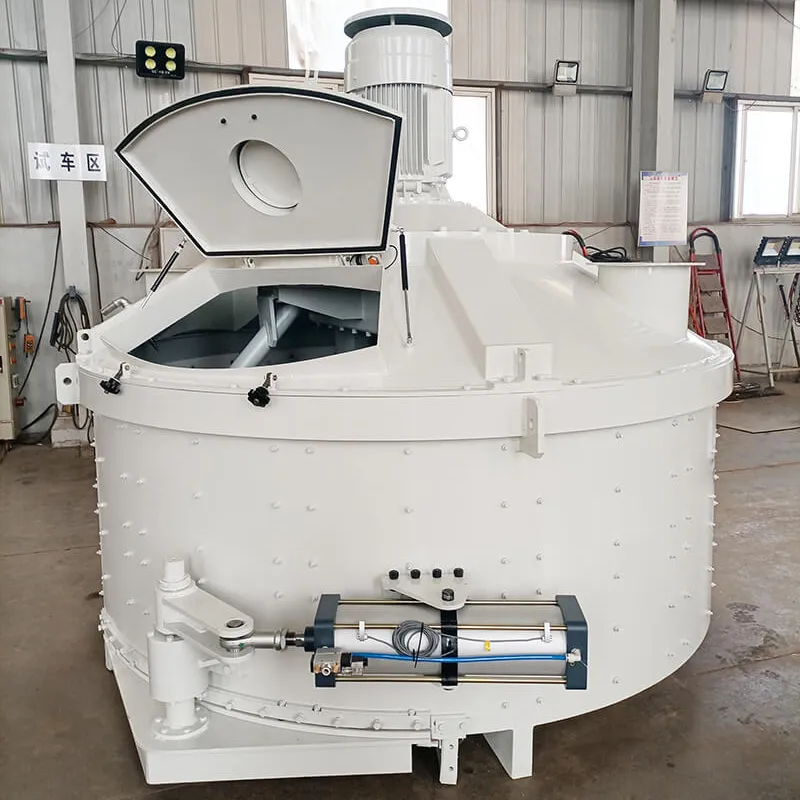

Concrete Mixer Equipment Display
Core Advantages

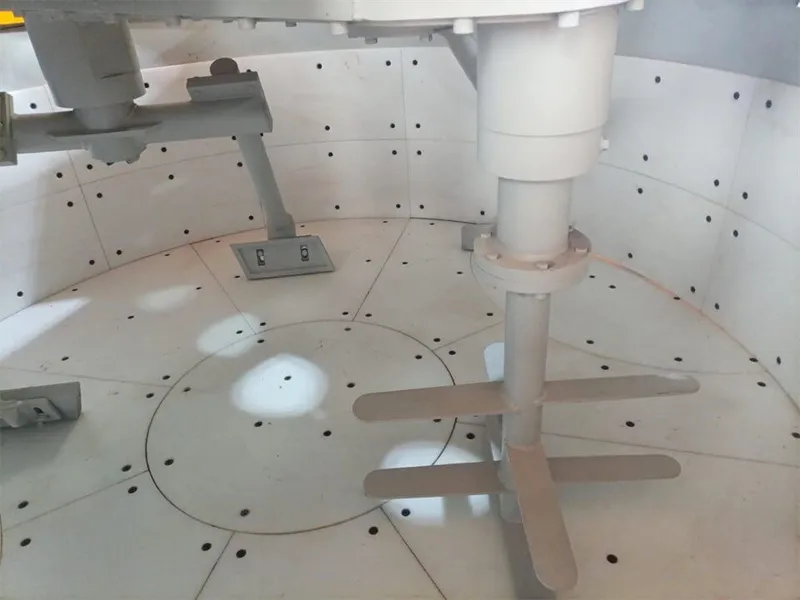

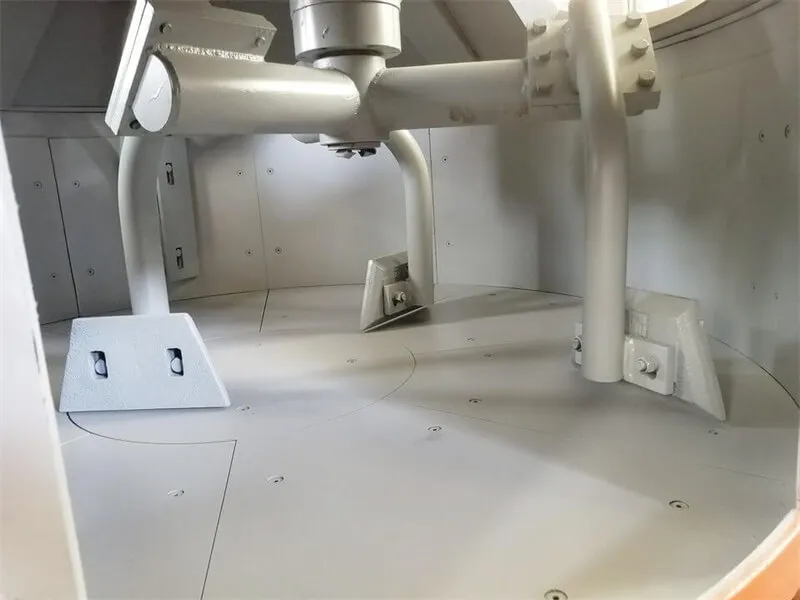

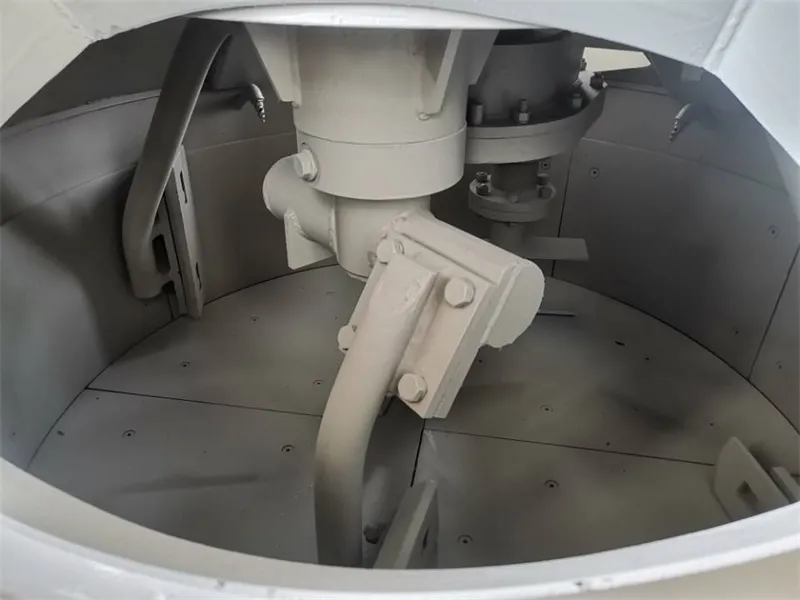

Counter-current Gearing System: The rotation direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different. This circulation and convective movement ensure materials are severely mixed and achieve uniform distribution.

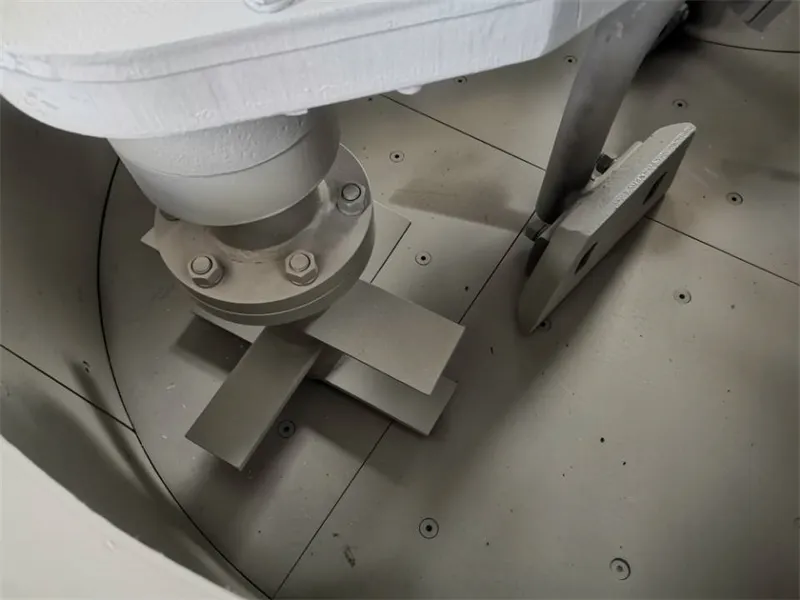

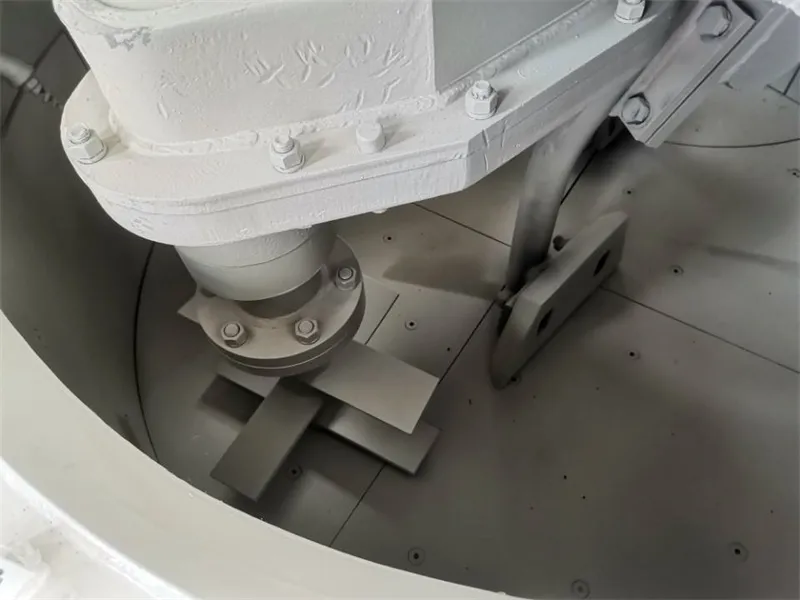

Convection Mixing Device: High mixing efficiency with low energy consumption. Compared with traditional planetary mixers, the mixing time of LCMP can be reduced by 15~20%, and the load current can be 15~20% lower.
Product Parameters
Item LCPM50 LCPM100 LCPM250 LCPM500 LCPM1000 LCPM2000 LCPM3000
Feeding Volume (L) 75 150 375 750 1500 3000 4500
Output Volume (L) 50 100 250 500 1000 2000 3000
Mixing Power (Kw) 3 5.5 11 18.5 37 75 110
Mixing Star*Blade 1*2 1*2 1*2 1*3 2*3 3*3 3*3
Weight (Kg) 750 1000 1500 2400 5500 9200 12000

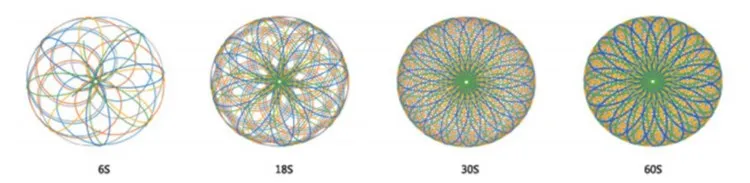

Mixing Locus Diagrams: The diagrams below show the perfect mixing action from 6 to 60 seconds. The floor is completely swept by the mixing star every 4 revolutions.
Mixing Locus Diagram

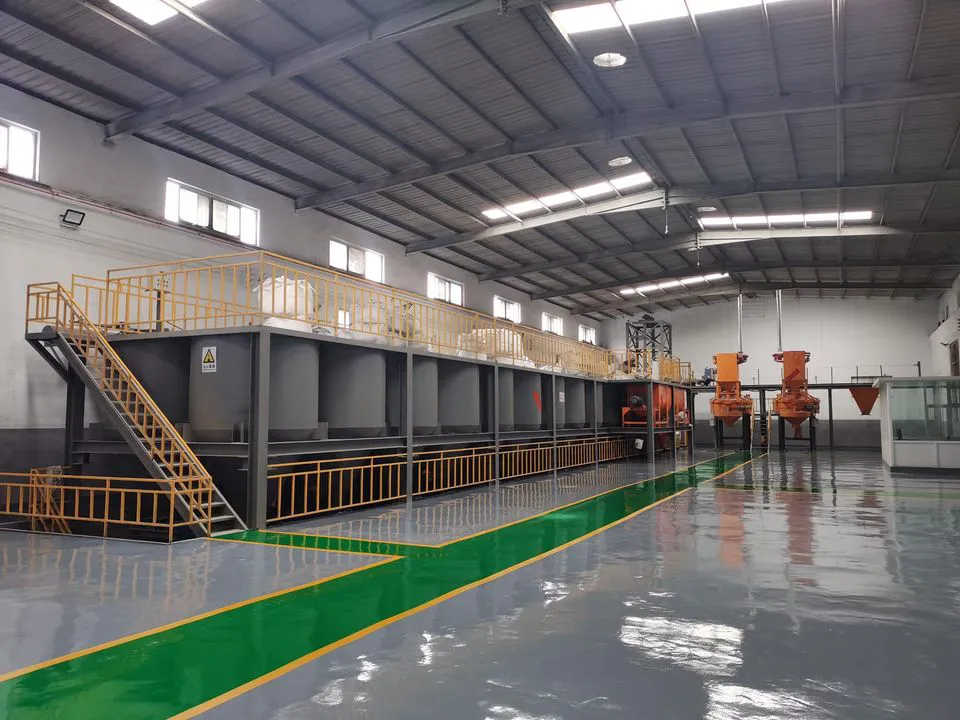

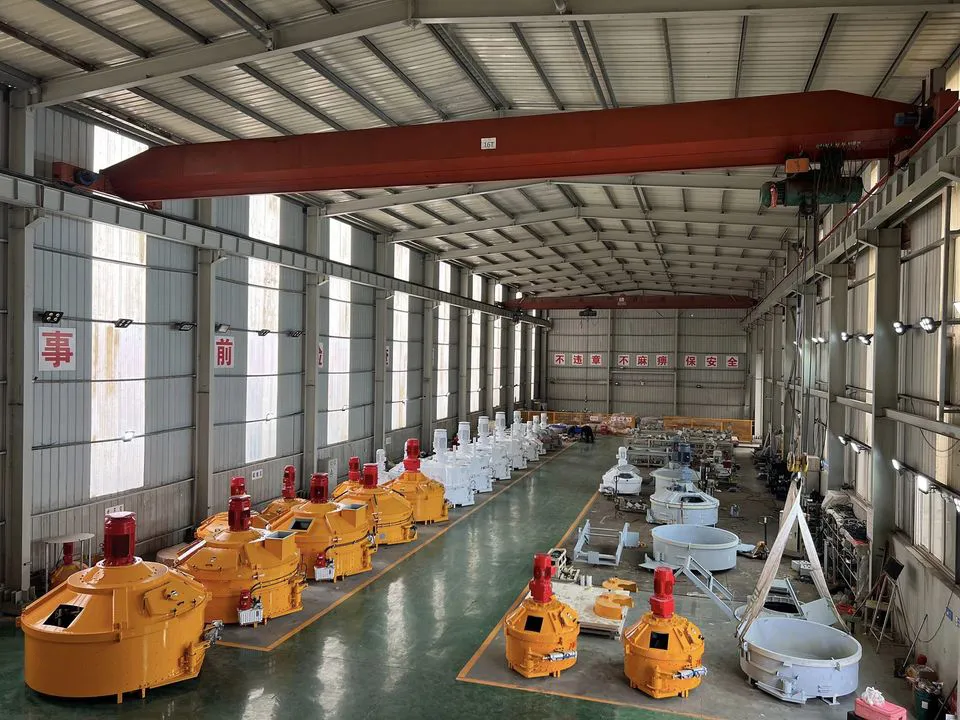

Factory Visit
Product Application
Our planetary mixers are suitable for various materials including Concrete (Ready-mixed, Precast, Foam), Construction Materials (Dry mortar, Gypsum), Refractory Materials (Shaped and Unshaped), and others like Glass, Fertilizer, and Water treatment.

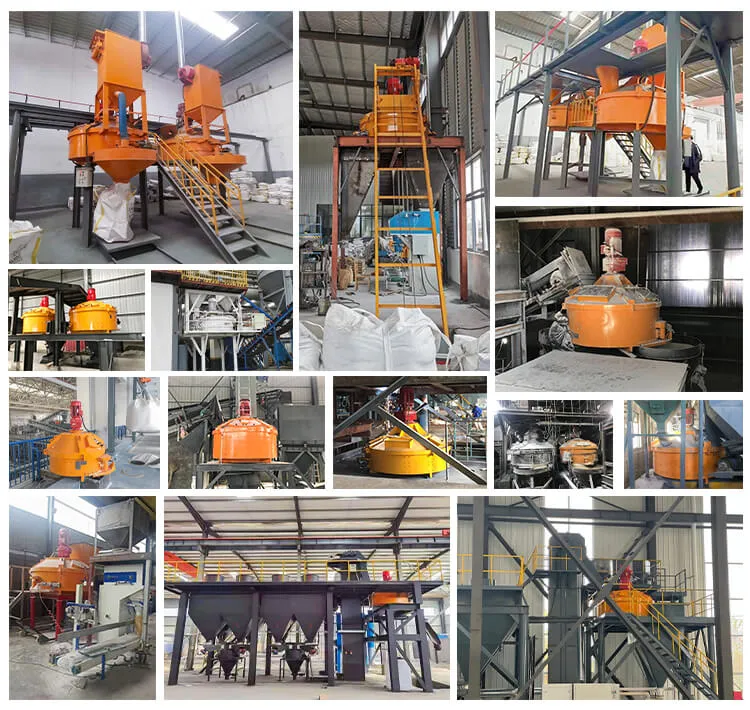

Application Map Application Example
Frequently Asked Questions
What is a counter-current planetary mixer?
It is a high-efficiency mixer where the mixing stars and blades rotate in the opposite direction of the main carrier, creating a complex 3D mixing pattern for complete homogeneity.
What materials can be processed by the LCPM series?
It handles all types of concrete, refractory materials, glass, ceramics, fertilizers, and chemical products.
Can the capacity and color be customized?
Yes, we offer full customization for output volumes ranging from 50L to 3000L and can paint the equipment in your preferred colors.
What are the main safety features?
Our mixers include emergency stop buttons, safety locks, overload protection, splash guards, and anti-slip feet for maximum operator safety.
How long is the warranty period?
We provide a standard 1-year warranty on the main components of the machine.
Why is this mixer more efficient than traditional ones?
The unique planetary gear system reduces mixing time by 15-20% and lowers power consumption significantly compared to traditional single or twin-shaft mixers.
