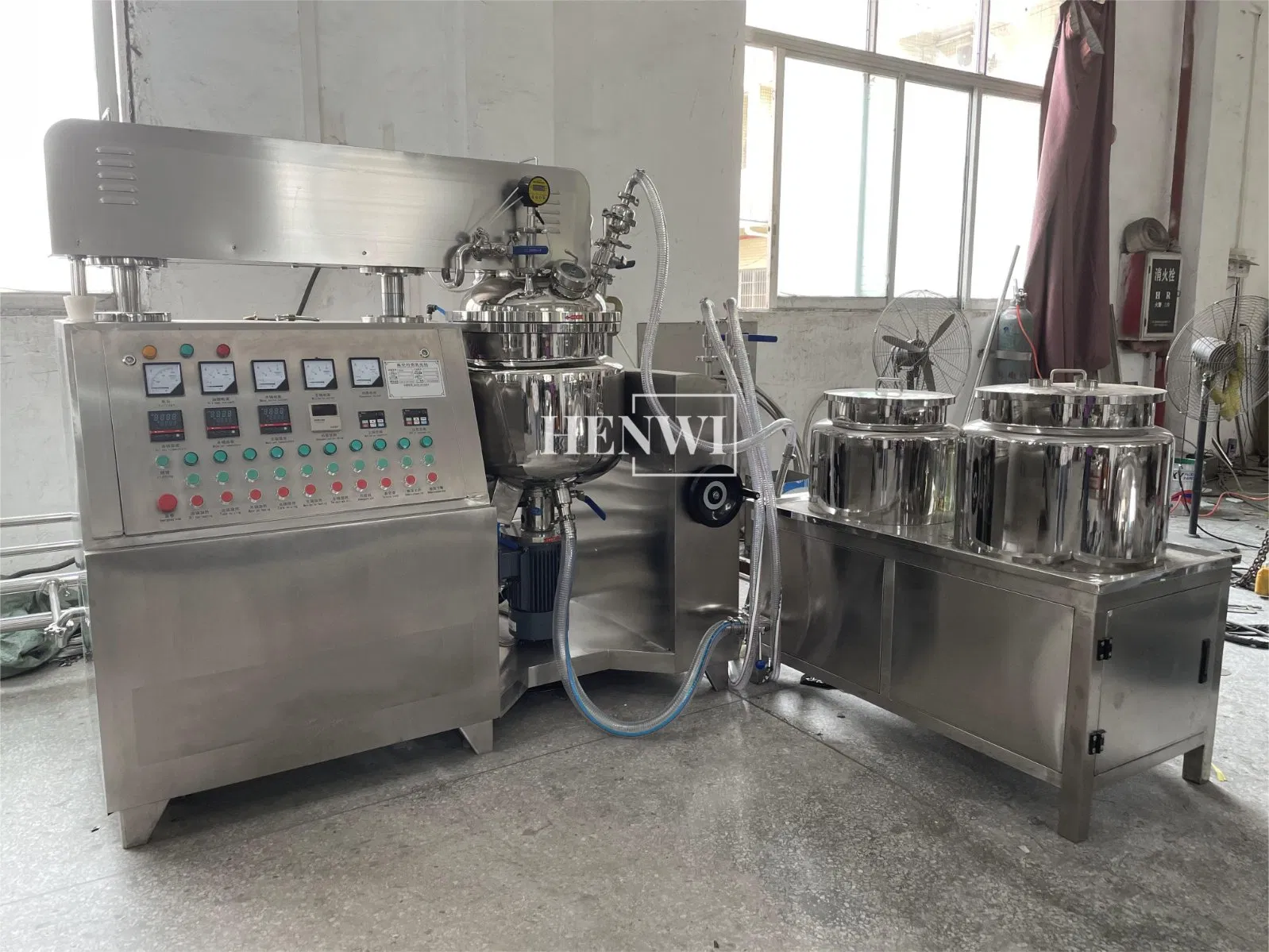

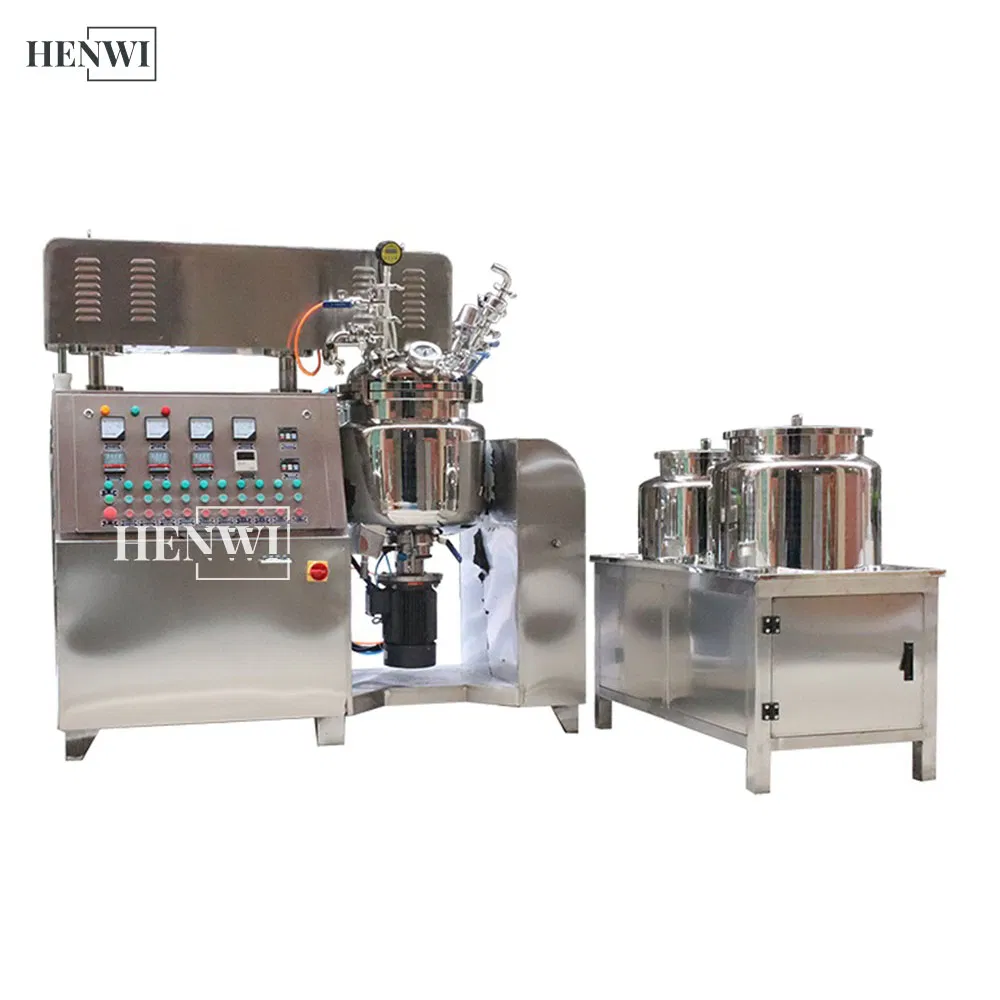

Hydraulic lifting vacuum emulsifier mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic and pharmaceutical factories. Especially designed for the production of stable emulsions, creams, milk, gels, balms, lotions, ointments, toothpastes, etc., having extremely small particles for chemical, cosmetics, pharmaceutical, and food industries.

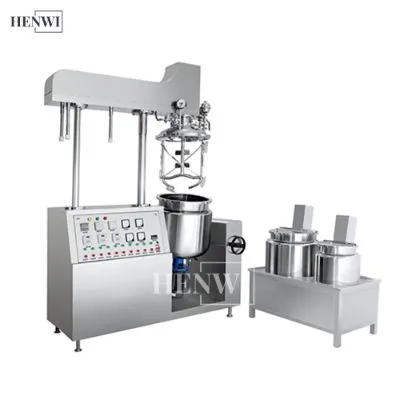

Standard Configuration:

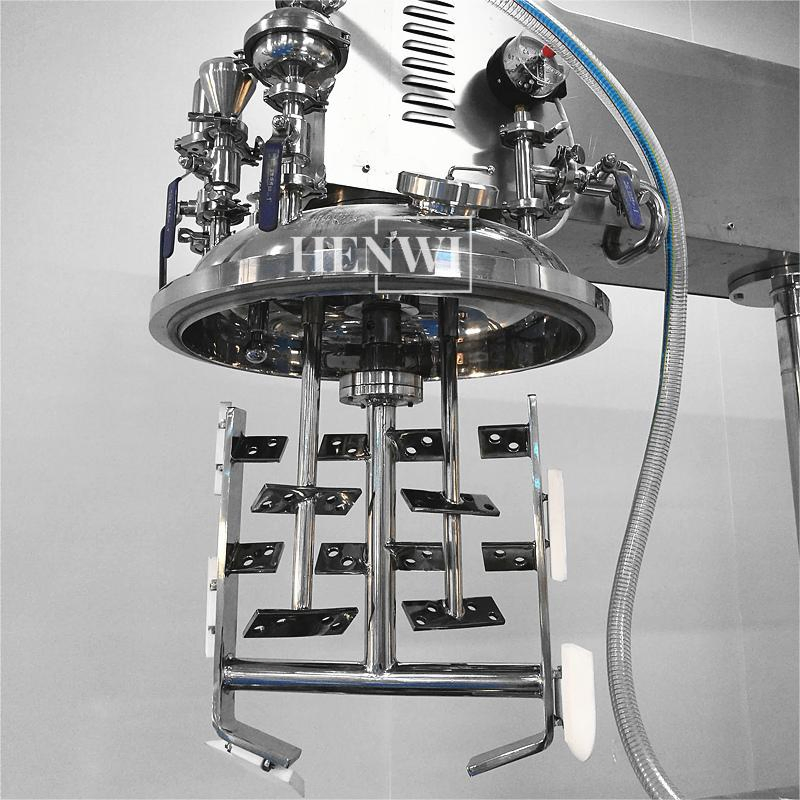

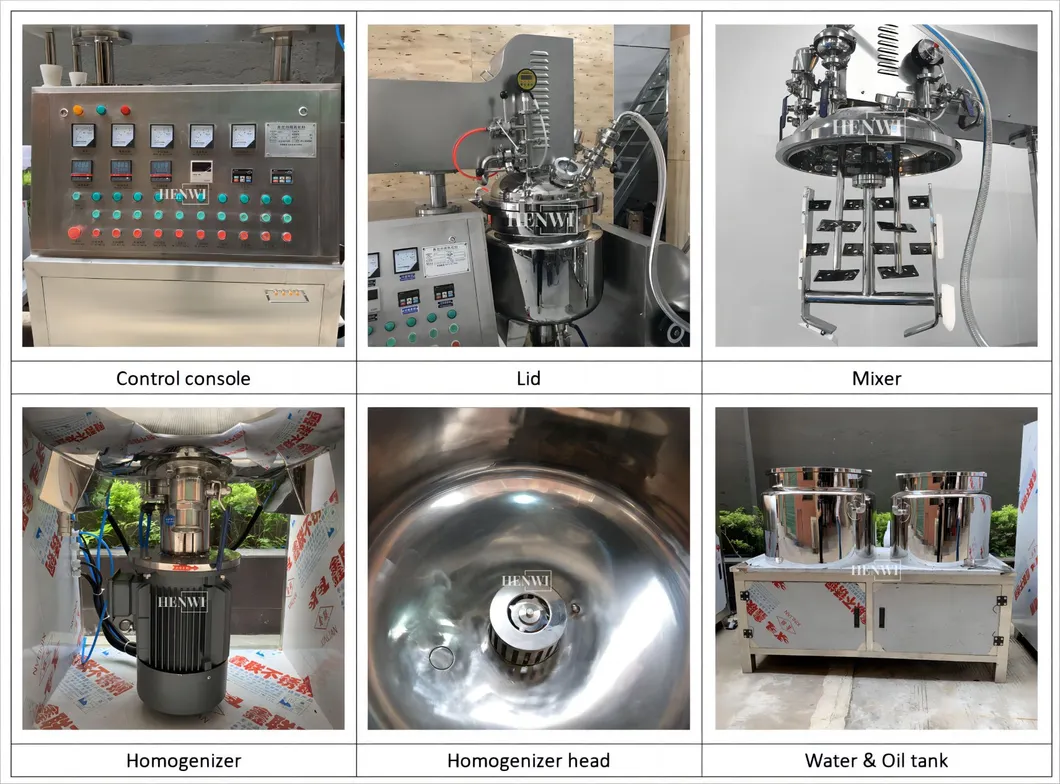

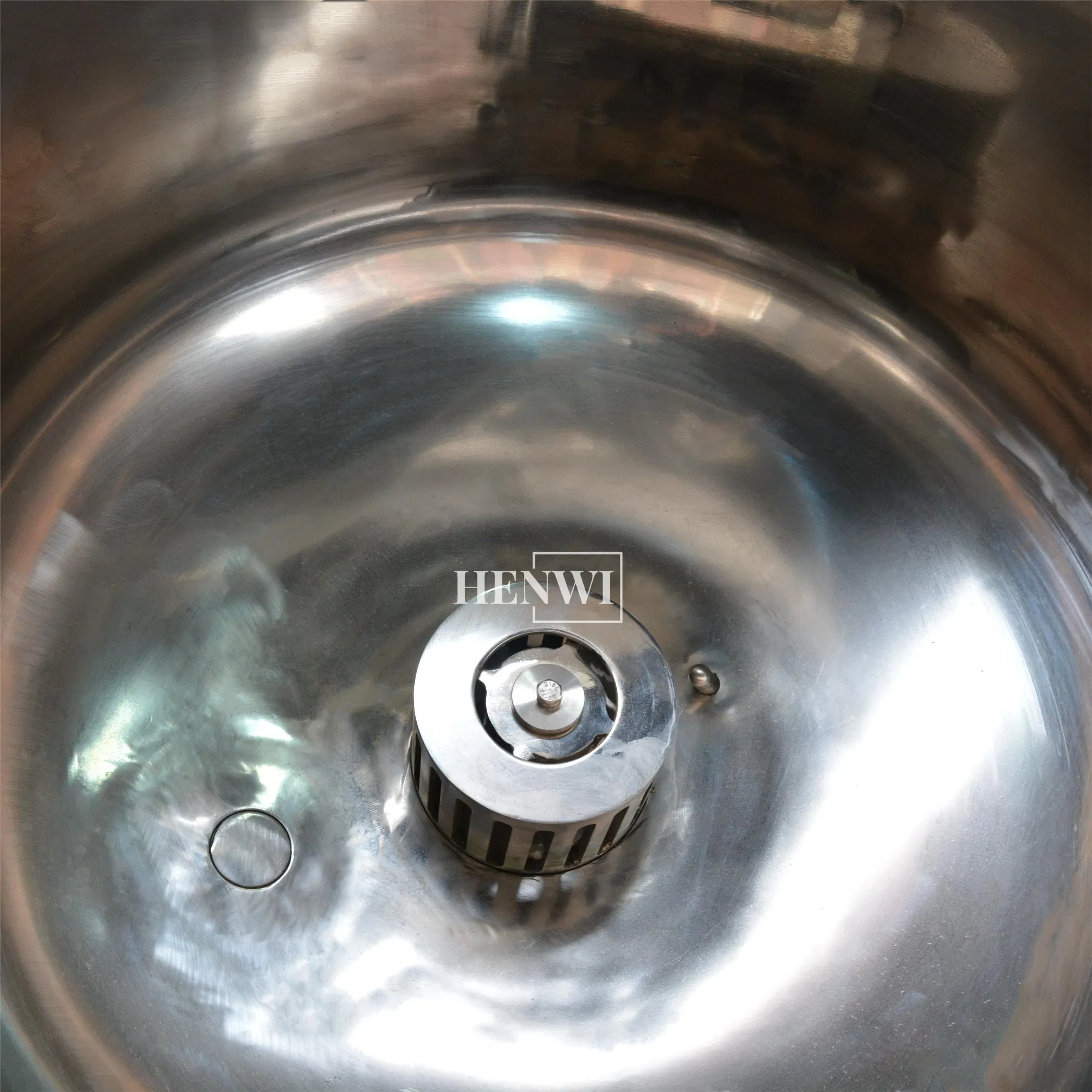

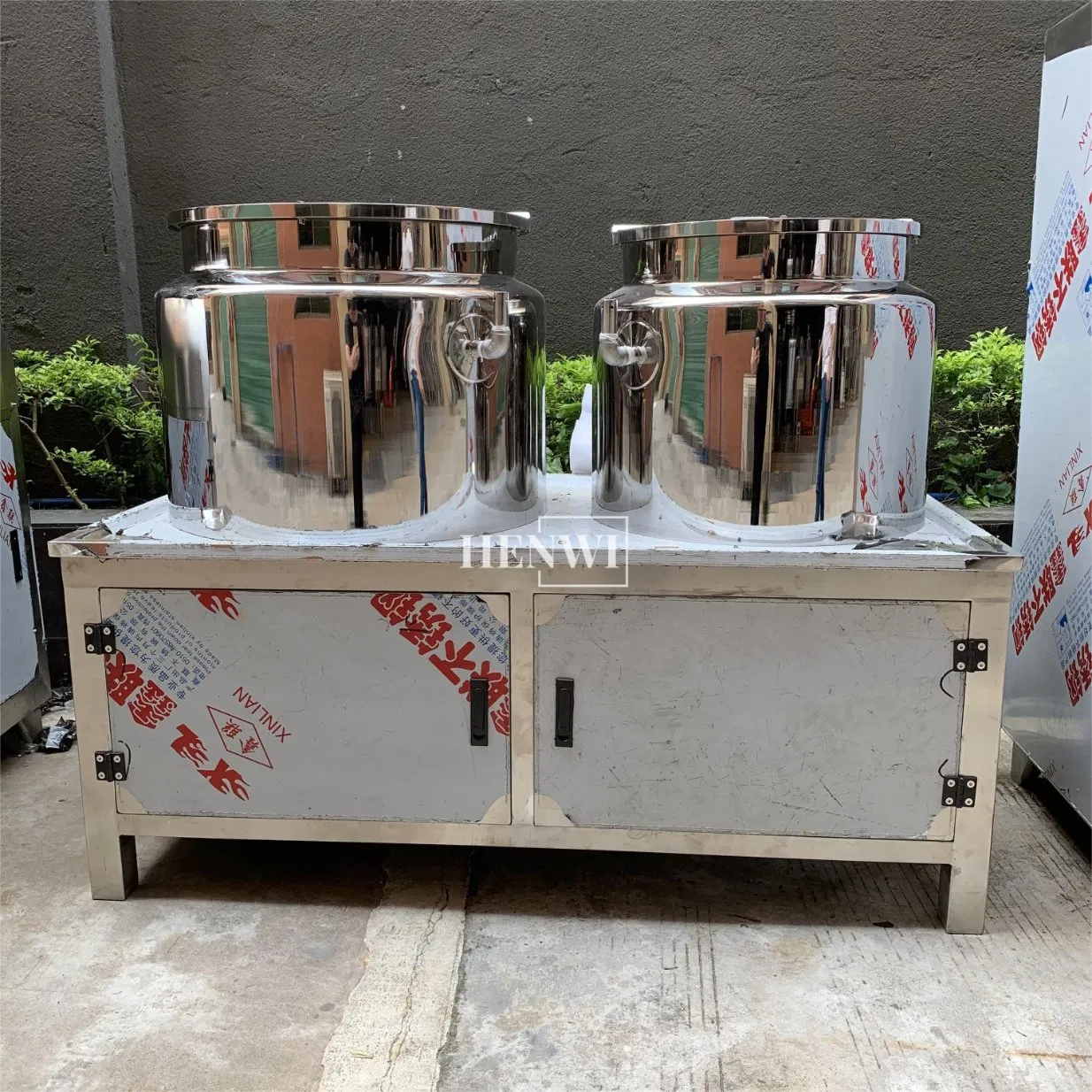

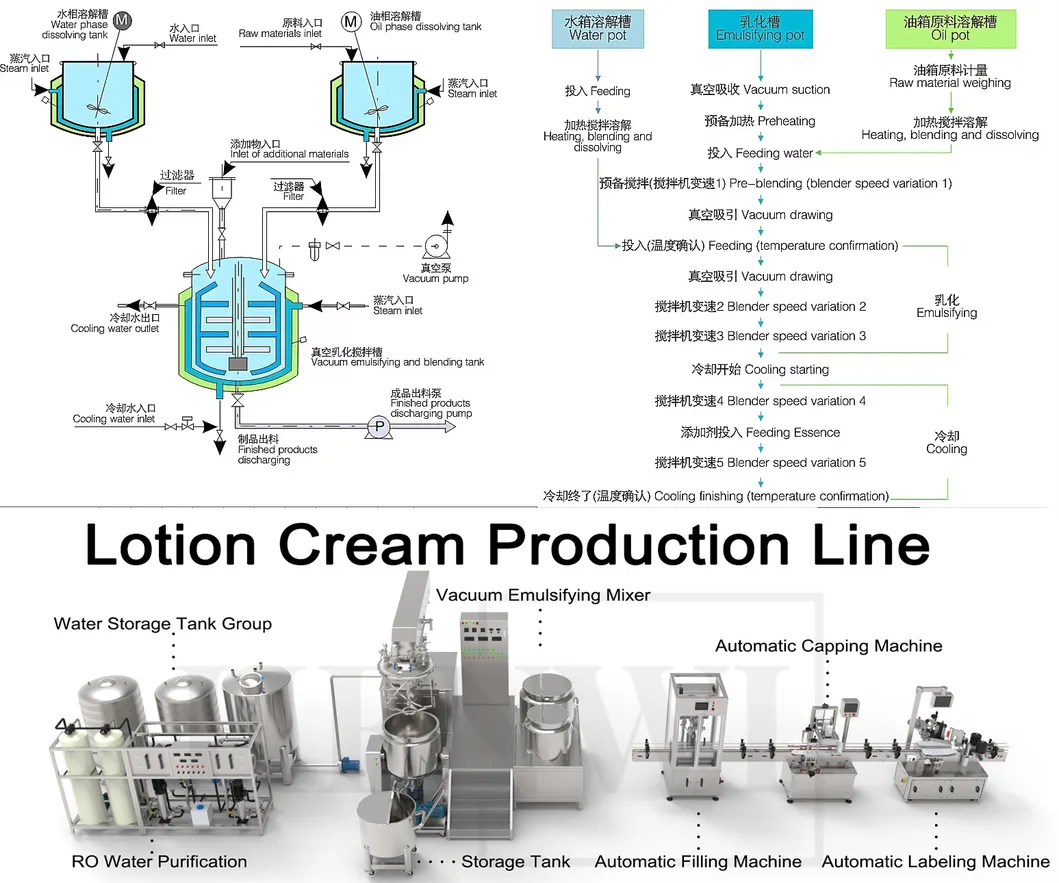

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle.
With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appearing during the process will be sucked out promptly in the vacuum status in the tank.

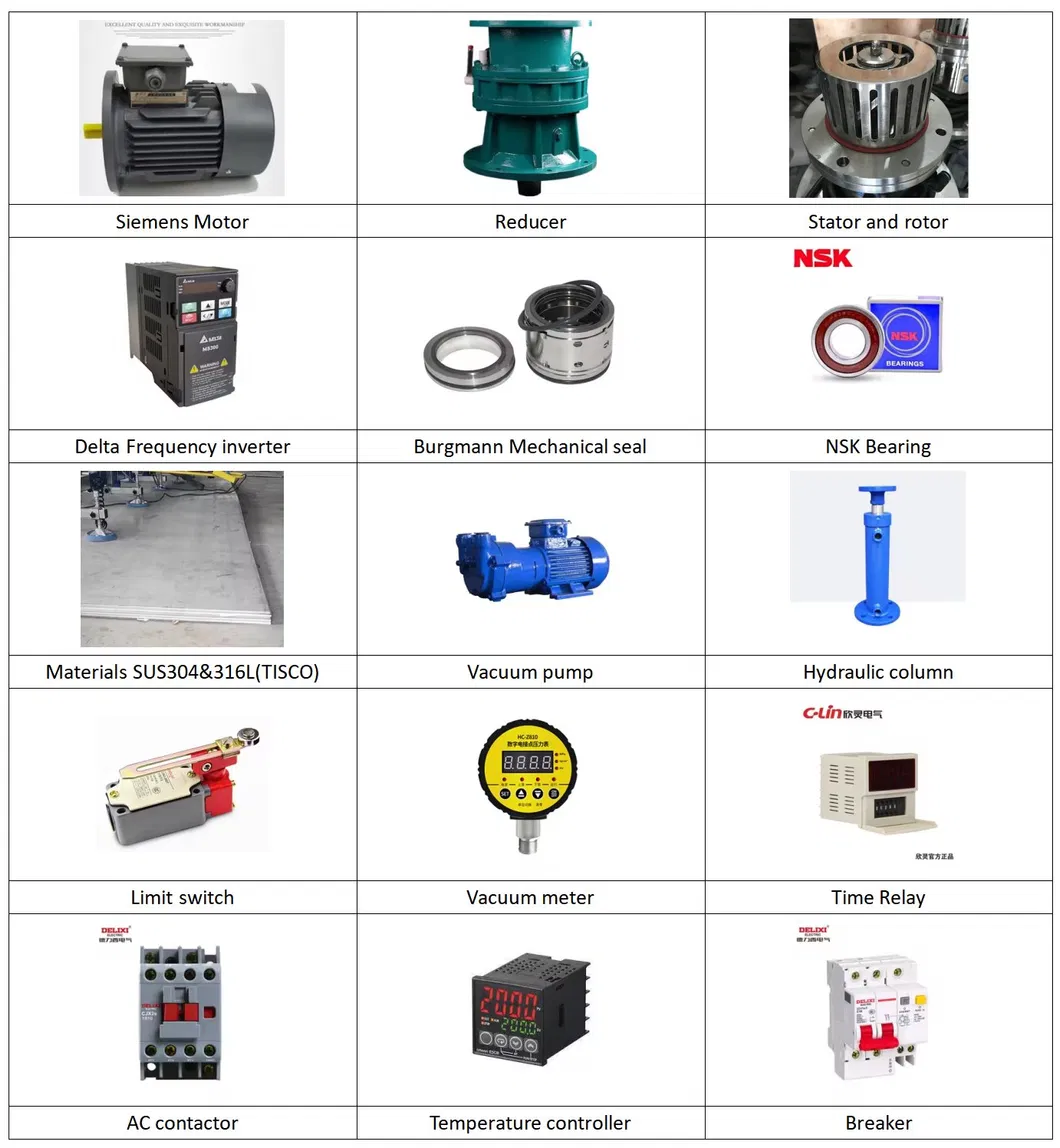

| No. | Parameter Item | Technical Specifications |
|---|---|---|
| 1 | Working Capacity | 50L |
| 2 | Heating Method | Steam / Electric |
| 3 | Mixing Type | Upper frame oar scraper mixer |
| 4 | Mixing Motor Power | 1.1KW |
| 5 | Mixing Speed | 0-65rpm |
| 6 | Homogenizer Type | Bottom homogenizer with frequency inverter |
| 7 | Homogenizer Power | 2.2KW |
| 8 | Homogenizer Speed | 0-3000rpm (50Hz) / 0-3600rpm (60Hz) |
| 9 | Hydraulic Lifting System | 0.55KW |
| 10 | Vacuum System | Water cycle vacuum pump, 0.75KW |
| 11 | Control Method | Button control / HMI |
| 12 | Tank's Materials | Inner: SUS316L (3mm), Middle: SUS304 (3mm), Outer: SUS304 (2mm) |
