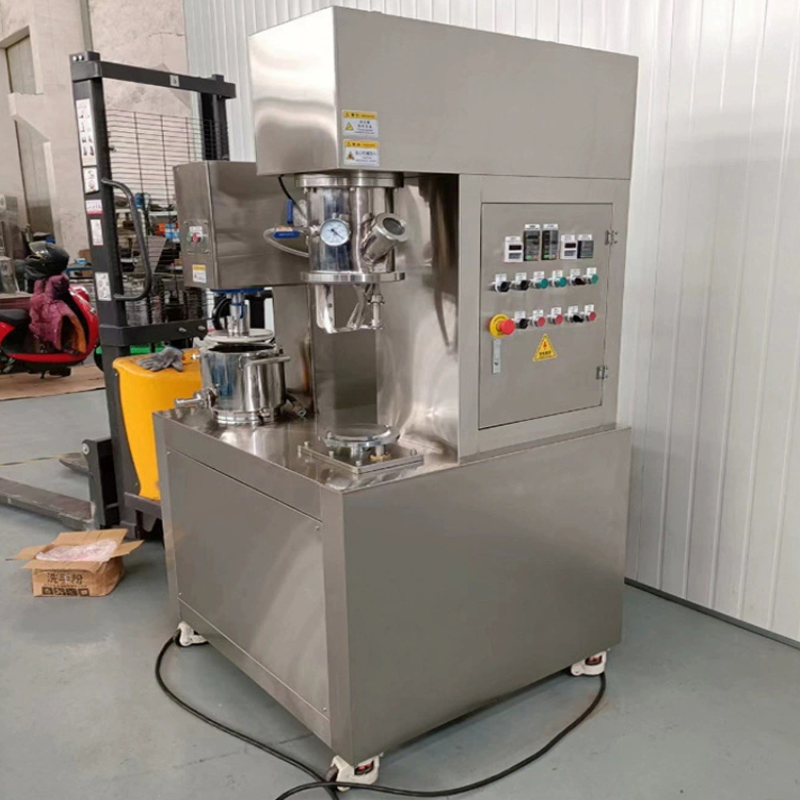

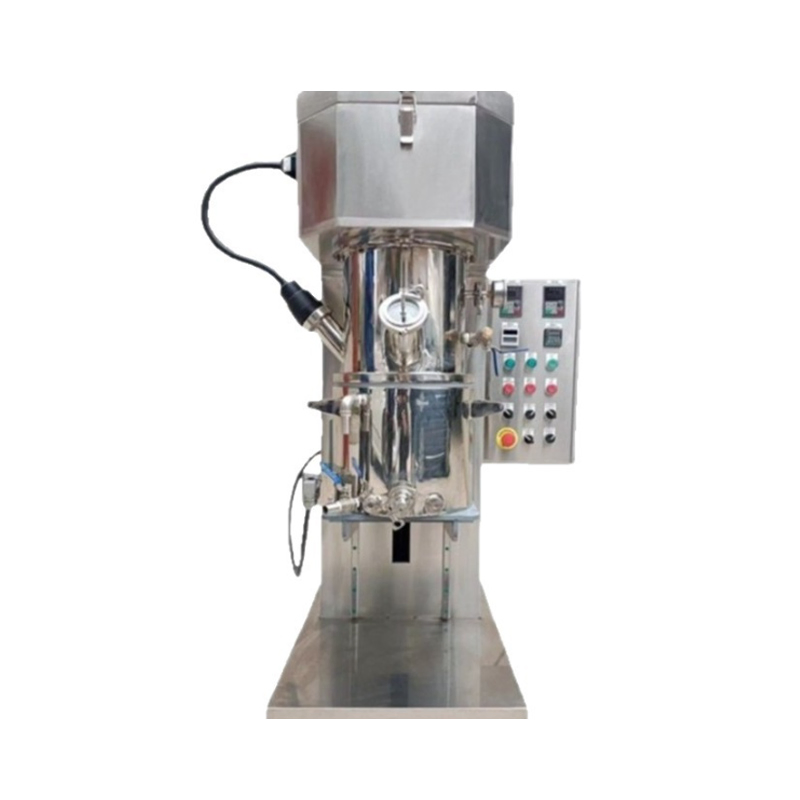

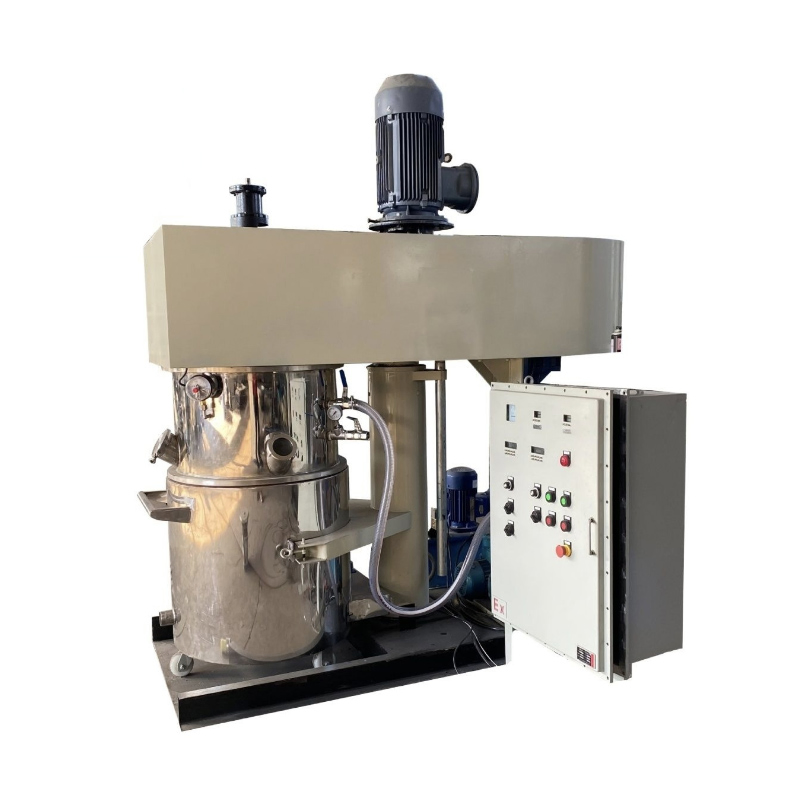

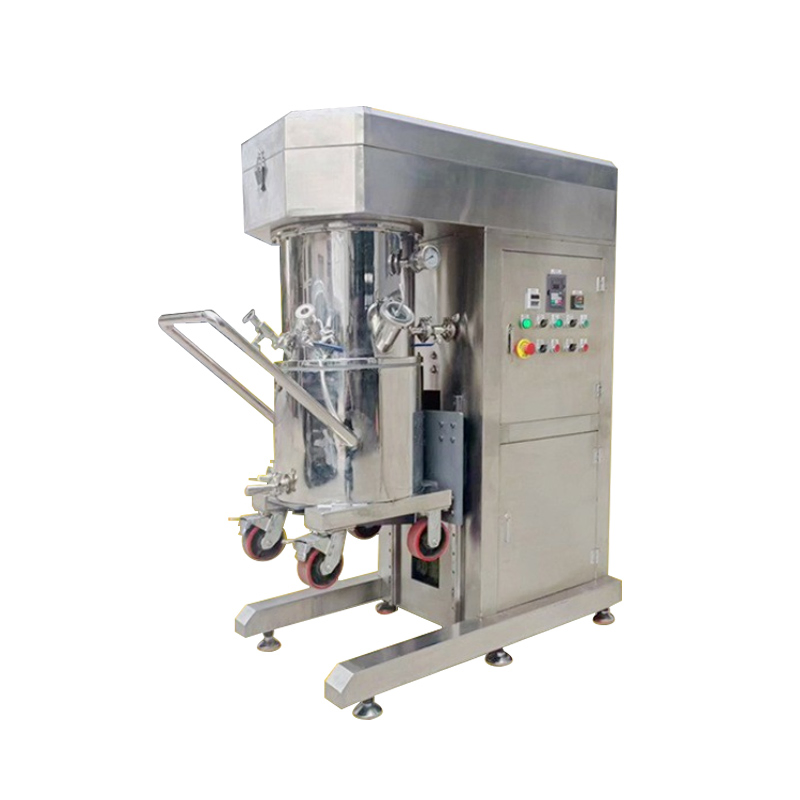

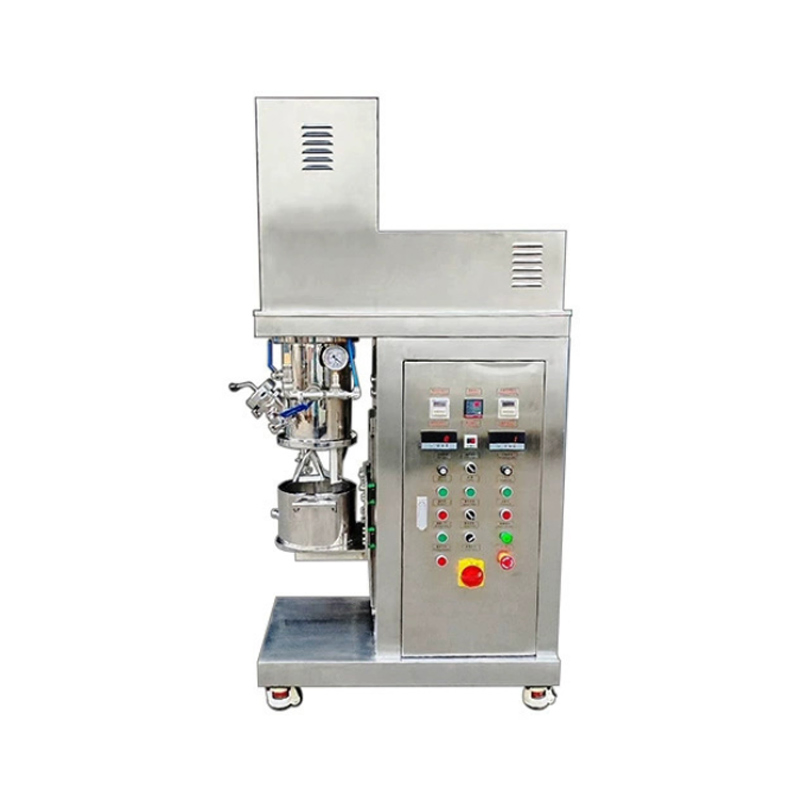

High Viscosity Stainless Steel Vacuum Double Planetary Mixer

1 / 5

High Viscosity Stainless Steel Vacuum Double Planetary Mixer

Customization:	Available
After-sales Service:	Online Support, video Technical Support
Application:	Granules, Liquid, Powder

Send Inquiry

Product Description

Basic Specifications

Model NO.

XW-XXJB2L

Product Name

Square Cone Mixer

Application Area

Chemical, Food, Pharmaceutical, Metallurgy

Main Material

Stainless Steel

Mixing Capacity

100-250L

Control System

Button Control

Heating Method

Electric Heating

Cooling Method

Air Cooling

Weight

250kg

Specification

1580*500*920mm

Product Description

Planetary Mixing Technology: Used for dispersion and mixing of solid-liquid and liquid-liquid phases. Due to its extremely high output torque, it is particularly suitable for products with high viscosity, such as adhesives, polyurethane, silicone, and silver-aluminum paste.

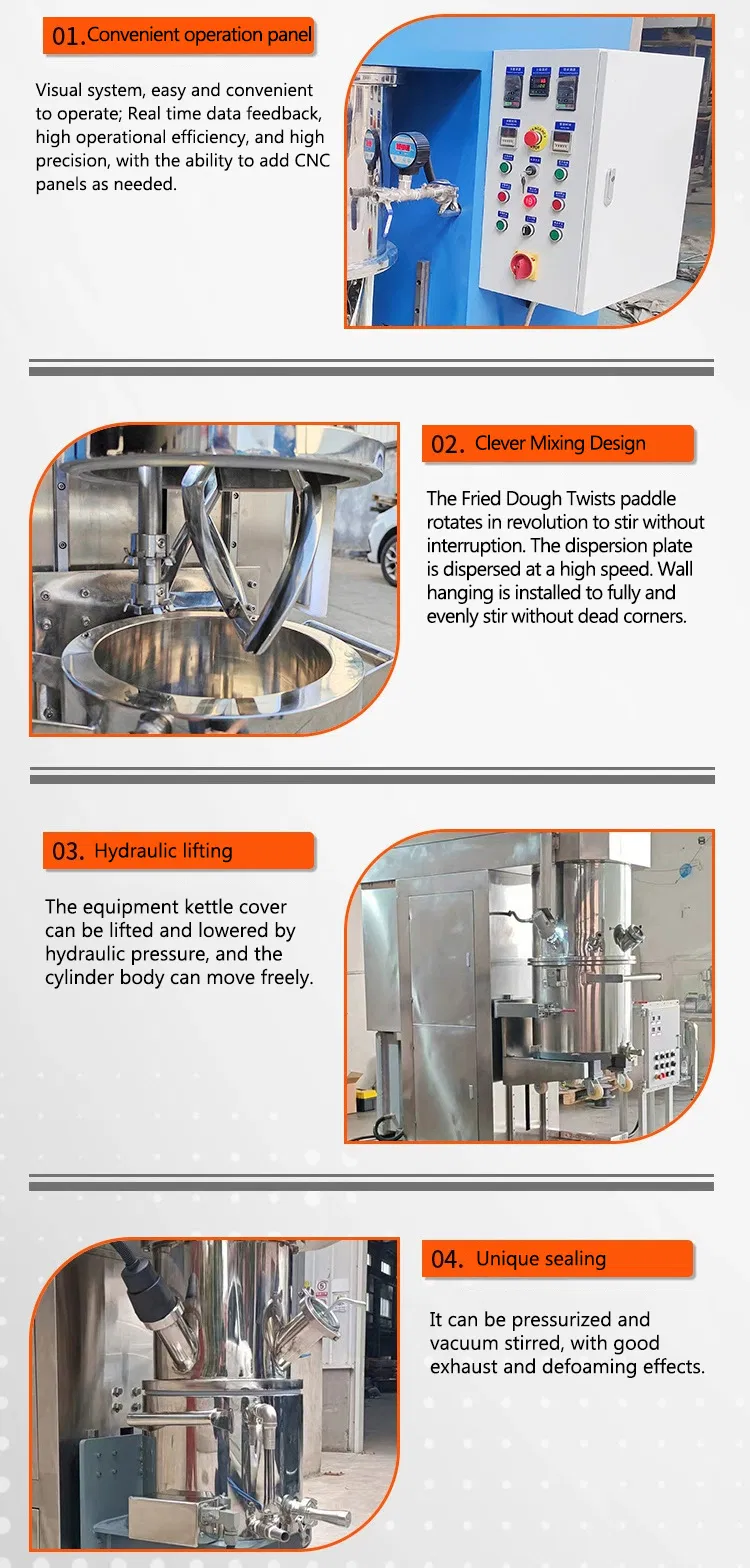

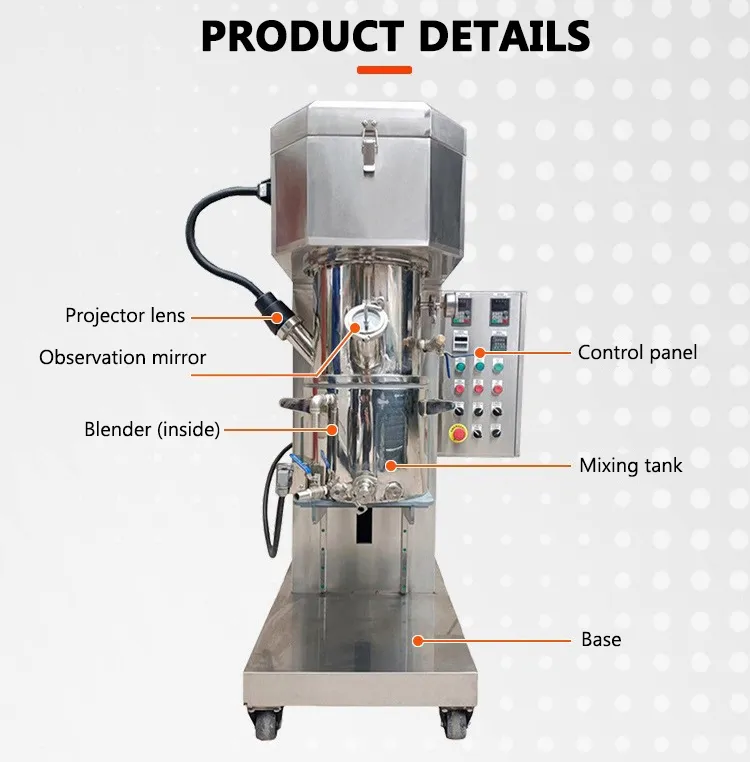

The planetary mixing machine consists of a planetary mixing system, a high-speed dispersion system, a planetary cover, a wall scraper, a reaction kettle, a hydraulic lifting system, a hydraulic discharge system, a vacuum system, and a frame.

The double planet mixer is applicable to the mixing, reaction, dispersion, and dissolution of polymer lithium ion battery liquid, electronic electrode slurry, electronic adhesives, hot melt adhesives, silicone sealants, and various materials in chemical, food, and pharmacy industries.

Key Features

Precision Machining: The barrel wall undergoes polishing by an automatic machine to ensure the movable scraper can completely remove material residue.
Vacuum Capability: Customizable as a vacuum type, allowing for deaeration during stirring and hygienic vacuum feeding.
Uniform Mixing: The mixing paddle performs both orbital and rotational movements, significantly improving efficiency compared to ordinary mixers.
Safety Integrated: Equipped with Anti-Slip Feet, Emergency Stop Button, Overload Protection, and Safety Locks.

Model	Working Capacity	Agitation Power	Orbital Speed	Rotation Speed	Decentralized Speed	Vacuum Degree
XXJB2L	2L	0.75kw	0-65r/min	0-146r/min	2980r/min	-0.095Mpa
XXJB5L	5L	1.5kw	0-65r/min	0-117r/min	2980r/min	-0.095Mpa
XXJB10L	10L	2.2kw	0-48r/min	0-100r/min	2980r/min	-0.095Mpa
XXJB15L	15L	2.2kw	0-42r/min	0-99r/min	2980r/min	-0.095Mpa
XXJB20L	20L	2.2kw	0-48r/min	0-100r/min	2980r/min	-0.095Mpa

Frequently Asked Questions

What is the standard warranty period for this equipment?

The warranty period is 15 months after the equipment arrives at the destination port or 12 months after installation and commissioning, whichever comes first.

Do you provide on-site installation and commissioning services?

Yes, on-site guidance for installation and commissioning is available upon request. Usually, a mechanical engineer and an electrical engineer are assigned to assist.

What materials are used in the construction of the mixer?

The main material used is high-grade Stainless Steel, ensuring durability and compliance with industrial hygiene standards.

Can the mixer handle high-viscosity materials?

Absolutely. It is specifically designed for high-viscosity products like adhesives, silicone sealants, and battery slurries due to its planetary mixing system and high output torque.

Is the mixing barrel easy to clean?

Yes, the barrel wall is precisely machined and polished. The movable scraper on the planetary frame ensures that materials are scraped off during rotation, leaving minimal residue.

What safety features are included?

The machine includes multiple safety features such as an emergency stop button, overload protection, safety locks, a splash guard, and anti-slip feet.
