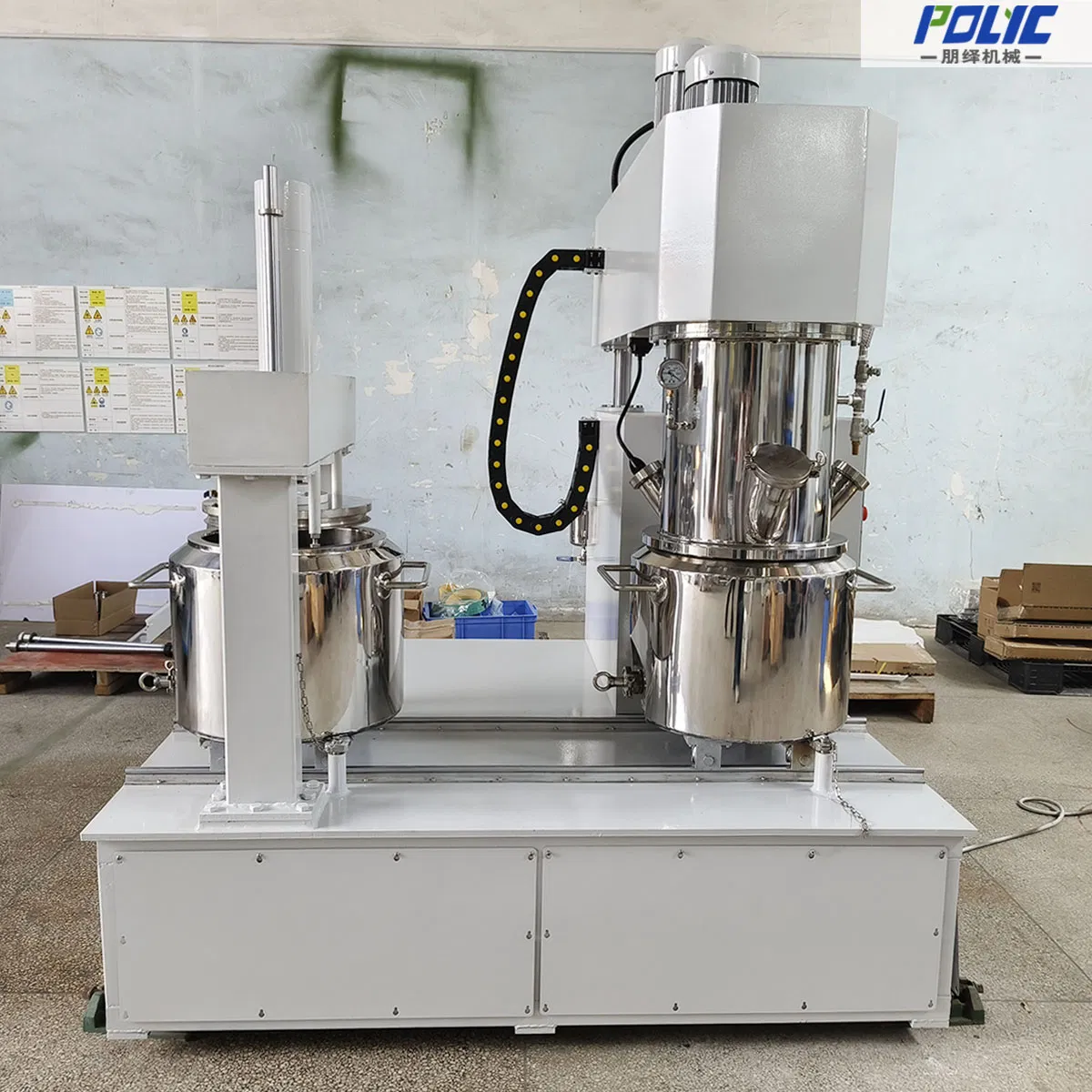

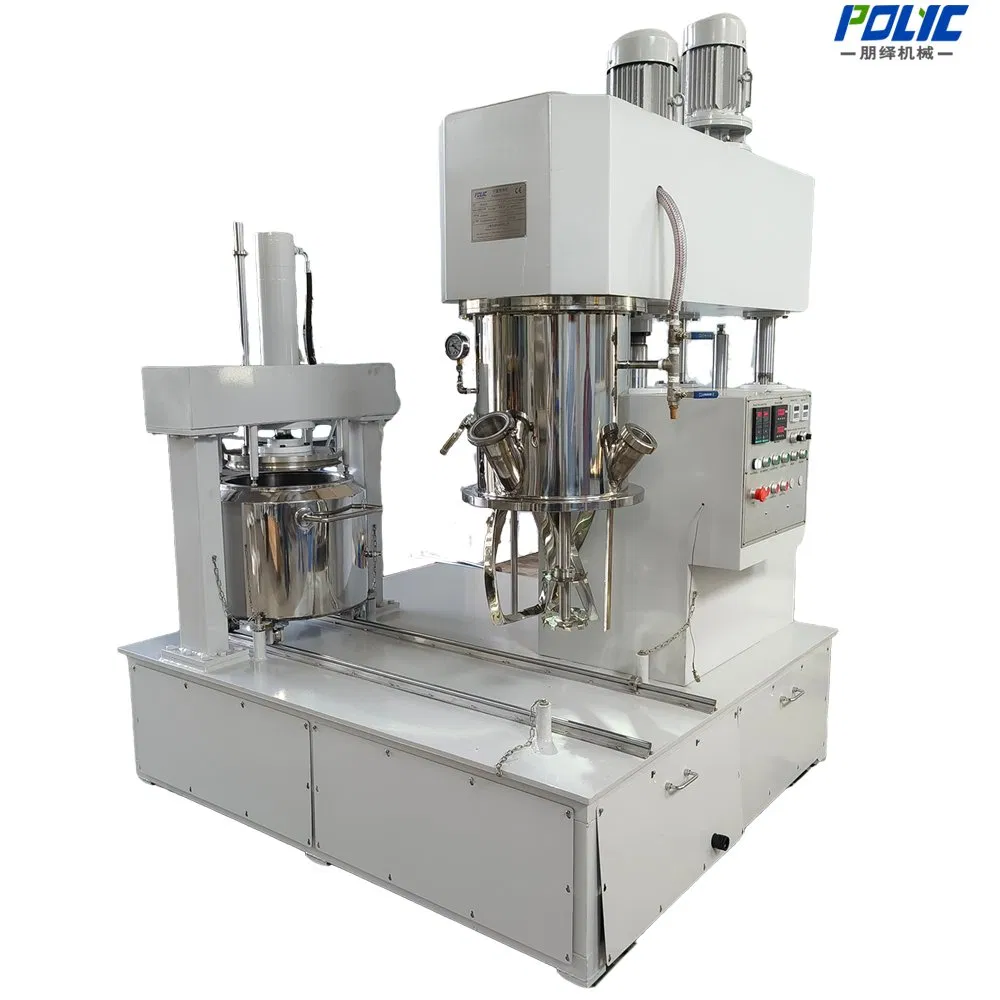

Sealant High Viscosity Dispersion Machine Adhesive Planetary Mixer for Glue

1 / 5

Sealant High Viscosity Dispersion Machine Adhesive Planetary Mixer for Glue

Customization:	Available
Additional Capabilities:	Vacuum, Mixing
After-sales Service:	Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support

Send Inquiry

Product Description

Basic Specifications

Model NO.

PMX30

Application

Liquid, Viscous Fluid, Silicone Sealant, Acrylic Resin

Certification

Control System

PLC Control

Heating Method

Thermal Oil Heating

Mixing Capacity

1000L & Above

Speed Range

0-3000rpm

Viscosity Range

500,000-3,000,000 C.P.S

Main Material

Stainless Steel SS304/SS316

Lifting Type

Hydraulic Lifting

Product Description

High Viscosity Dispersion Planetary Mixer is specialized for materials with extreme viscosity up to 3,000,000 C.P.S. It is a highly efficient, multi-purpose equipment integrating reaction, mixing, and dispersion. The stirring paddle rotates while revolving, ensuring the material flows in all directions to achieve a perfect mixing effect in a short time with no dead angles.

Working Principle

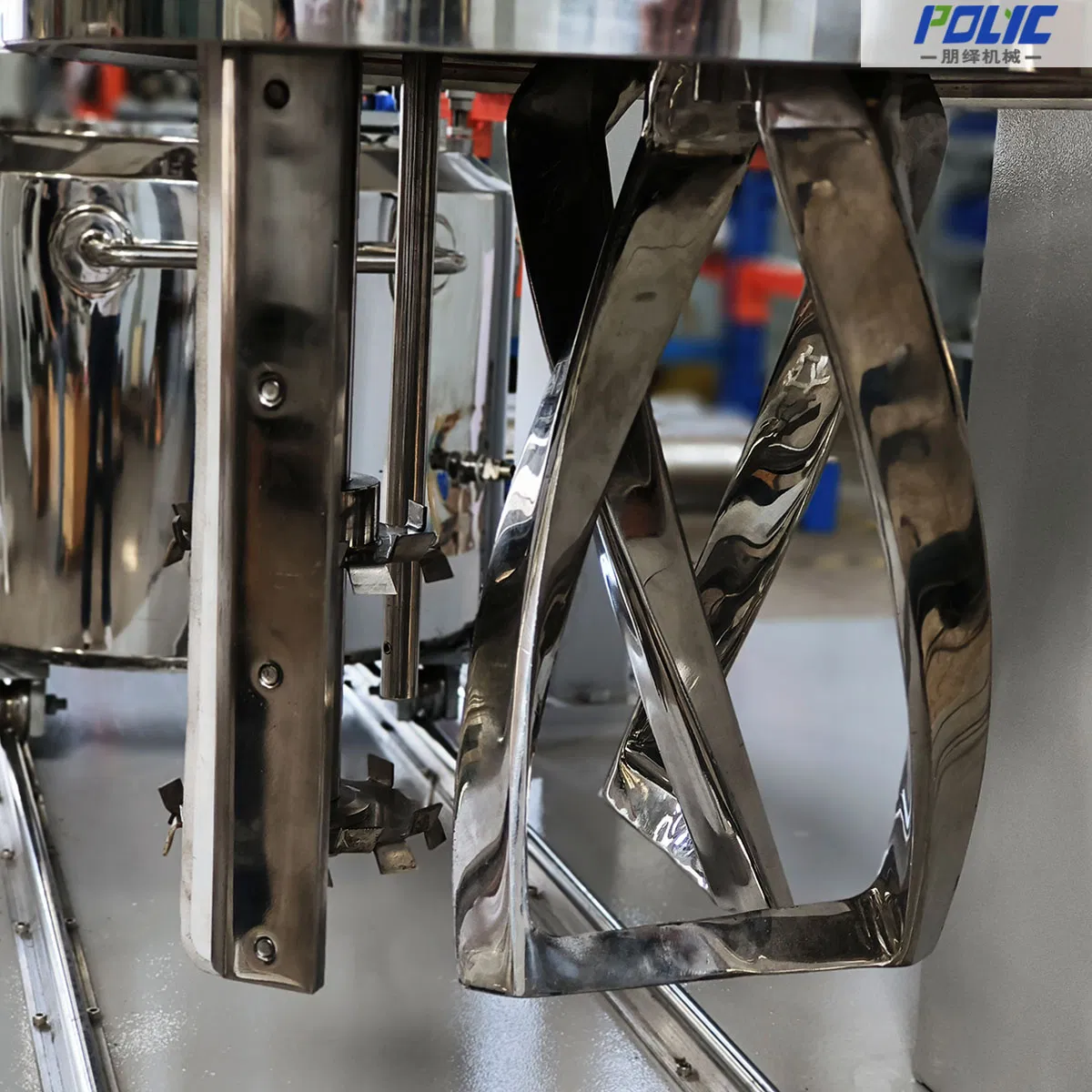

The stirring paddle in the kettle rotates while revolving, creating complex material flow patterns. This allows for high-efficiency mixing and kneading of heavy pastes and adhesives in significantly less time than traditional mixers.

Advantages & Features

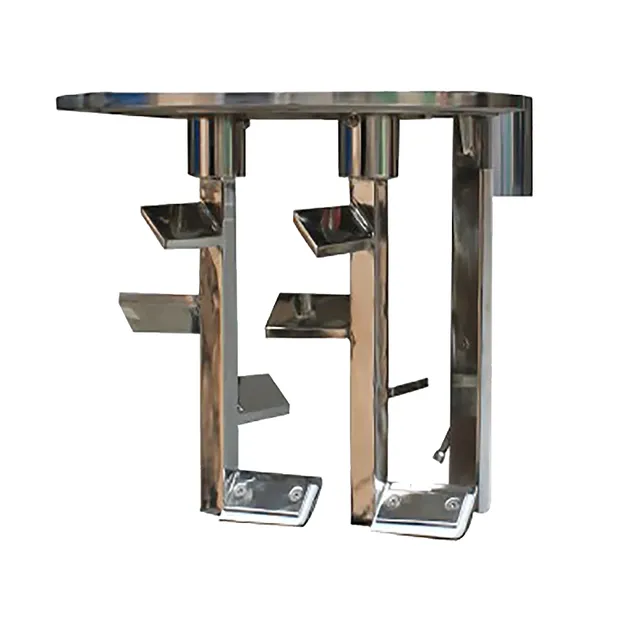

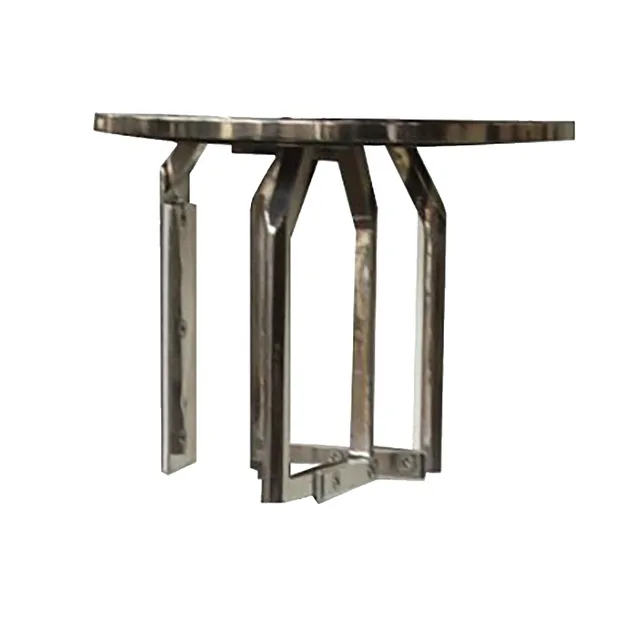

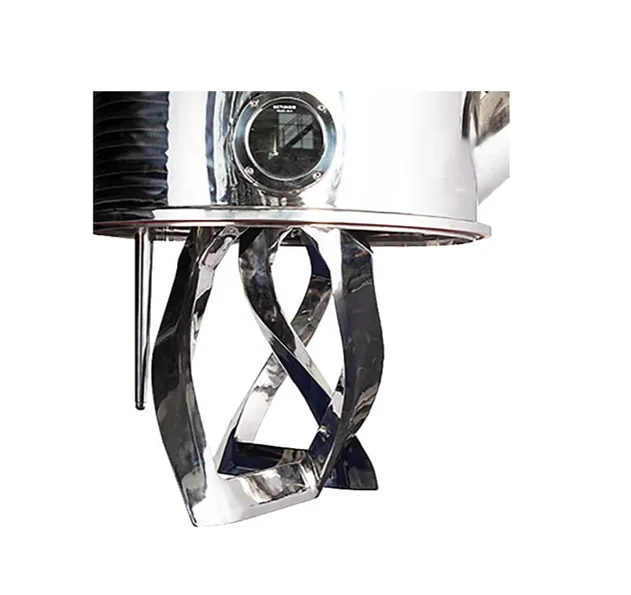

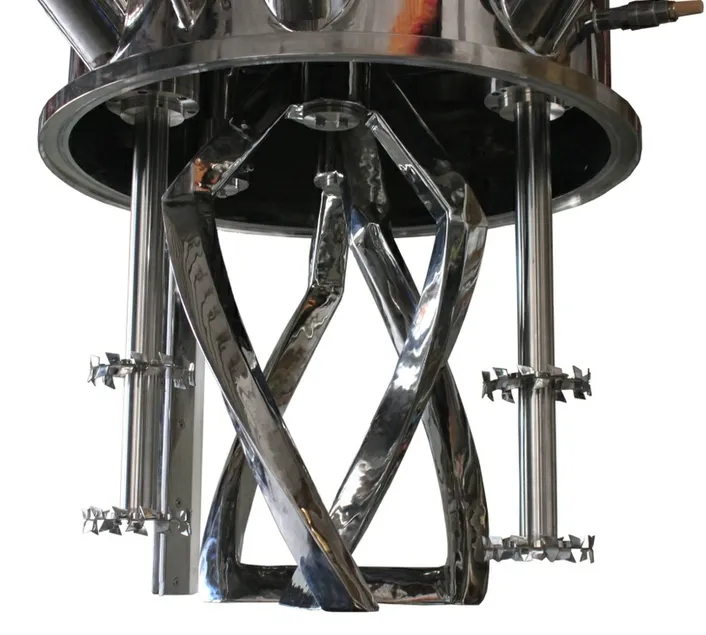

Customizable Blades: Zigzag, butterfly, twist, or folding types tailored to specific product requirements.
Vacuum Design: Ensures material processing in a sealed environment (Negative pressure -0.098 to 0Mpa).
Precise Temperature Control: Heating via steam, hot water, or oil circulation with ±1℃ accuracy.

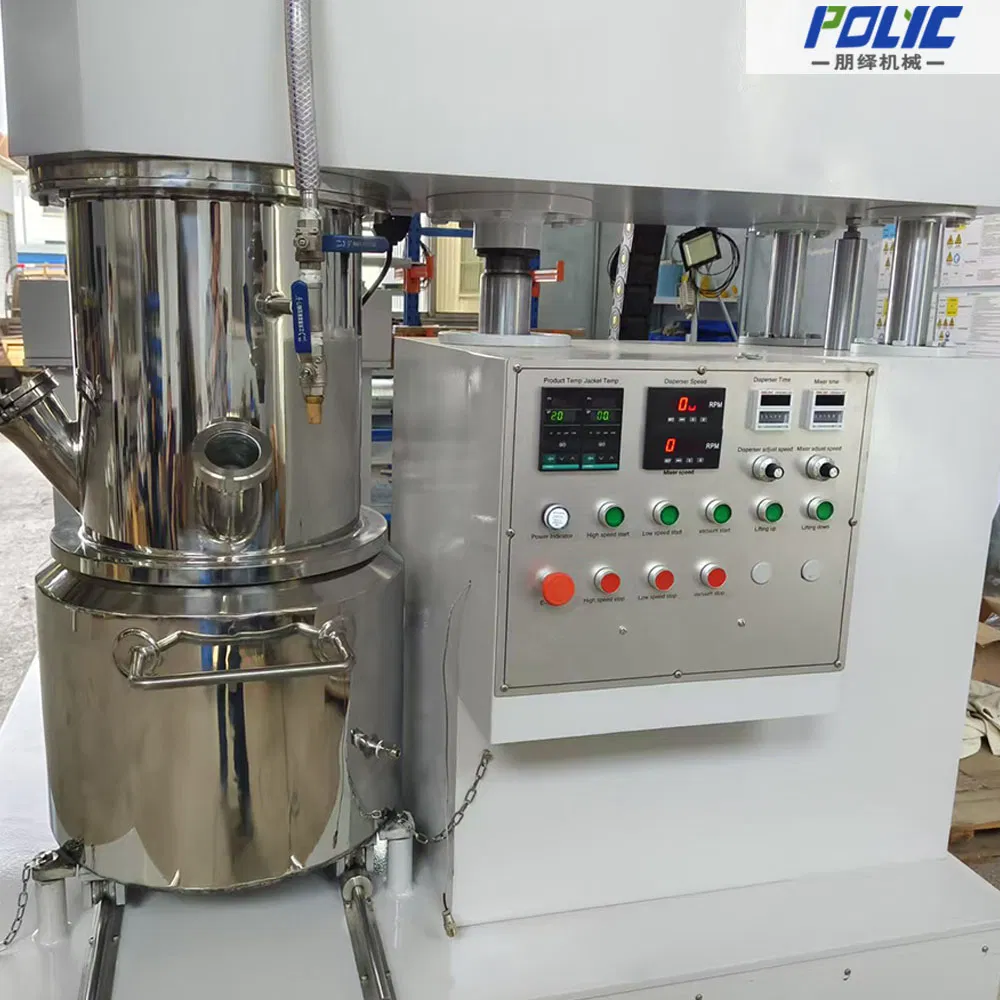

Explosion-Proof Options: Available with customized PLC control panels for hazardous environments.

Technical Parameters

Parameter/Type	PMX02L	PMX05L	PMX100L	PMX200L	PMX500L	PMX1000L
*Tank size(Dia.Dep)**	Φ180*120/150	Φ240/288*180	Φ600*460/500	Φ720/750*650	Φ1000*380	Φ1250*1000
Full volume(L)	3/3.8	8/11.7	130/140	265/287	650	1227
Working volume(L)	2	5	100	200	500	1000
Power for disperser(kW)	0.37-0.75	0.75-2.2	4-11	11-22	22-45	37-45
Dispersing speed(rpm)	0-3000	0-3000	0-3000	0-2500	0-1500	0-960

After-Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

Manufacturing & Exhibition

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a professional manufacturer of grinding mills, mixers, and filling machines with over 19 years of experience.

2. What is the expected lifetime of the planetary mixer?

Generally, our machines are designed to last more than 10 years, with many units still operational after 20 years.

3. How do you control the machine quality and precision?

Our factory manages the entire fabrication line independently—from cutting and welding to assembly and testing—to ensure strict control over every mechanical part.

4. What is the warranty policy?

We provide a 1-year warranty for the complete unit (excluding wear parts) and offer lifetime responsible technical service.

5. Do you provide installation and training?

Yes. We provide detailed manuals and videos for single machines, and paid overseas engineering services for full production line installation and worker training.

6. Is OEM customization supported?

Yes, we support OEM requests and provide multiple models and configurations to meet specific industrial needs.
