Powder mixer

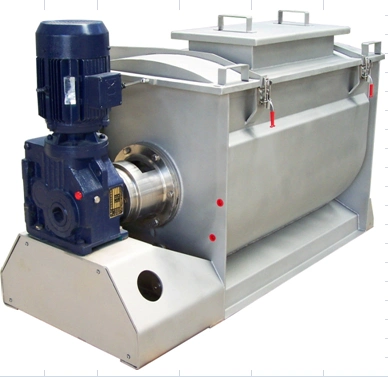

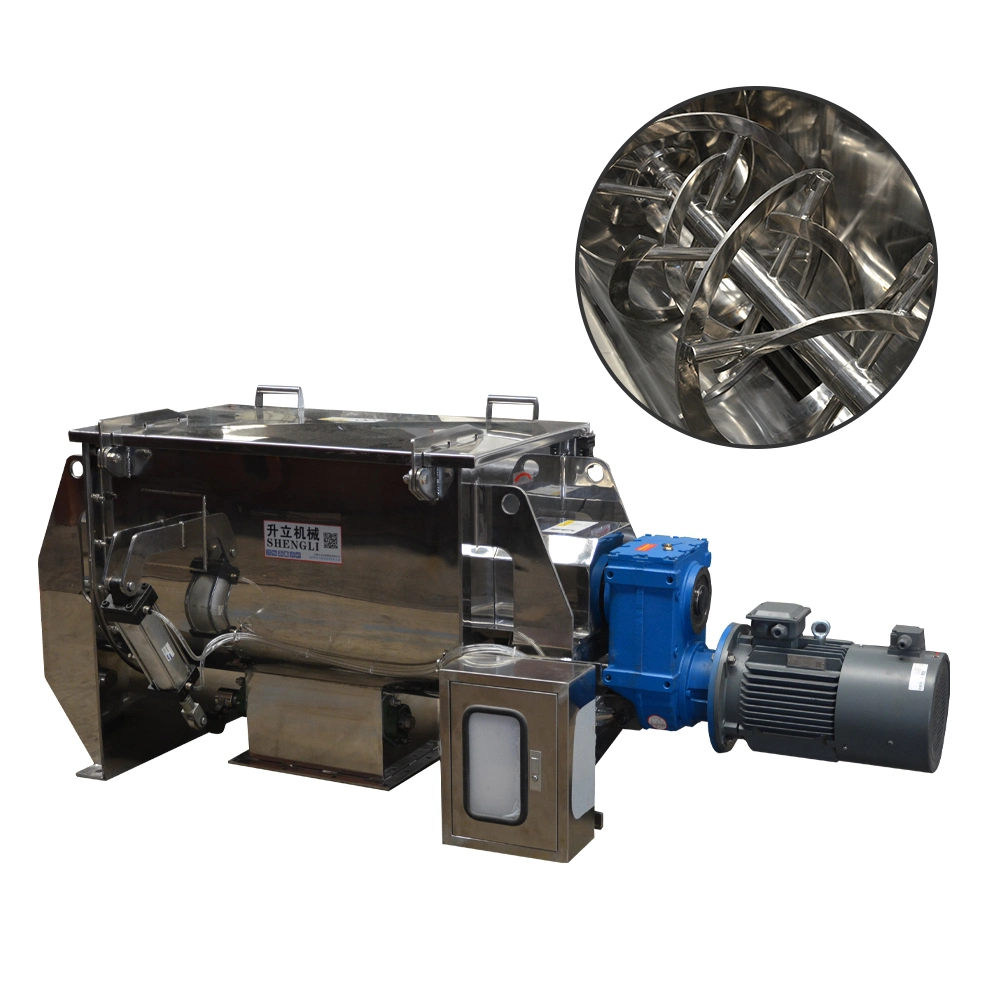

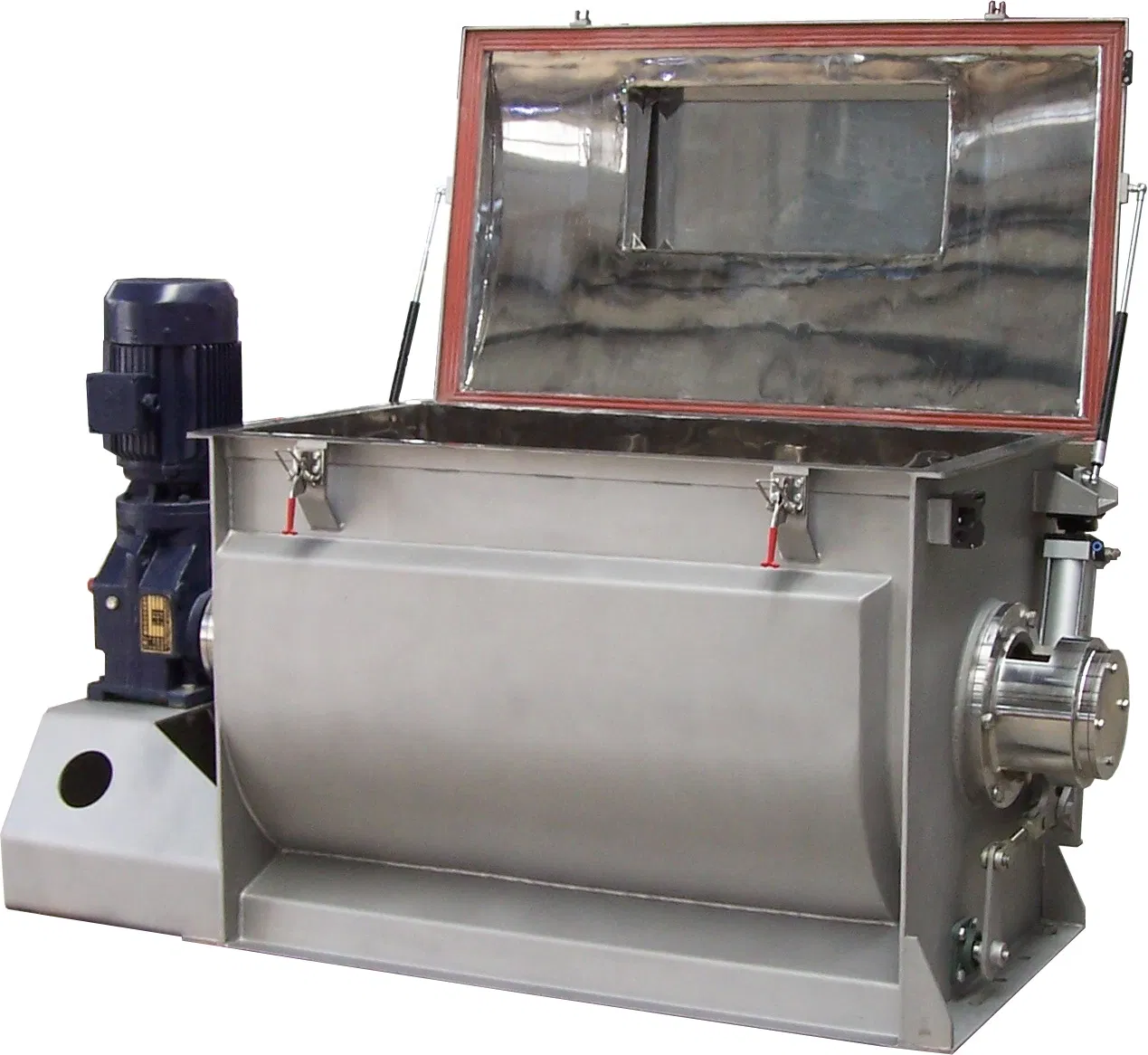

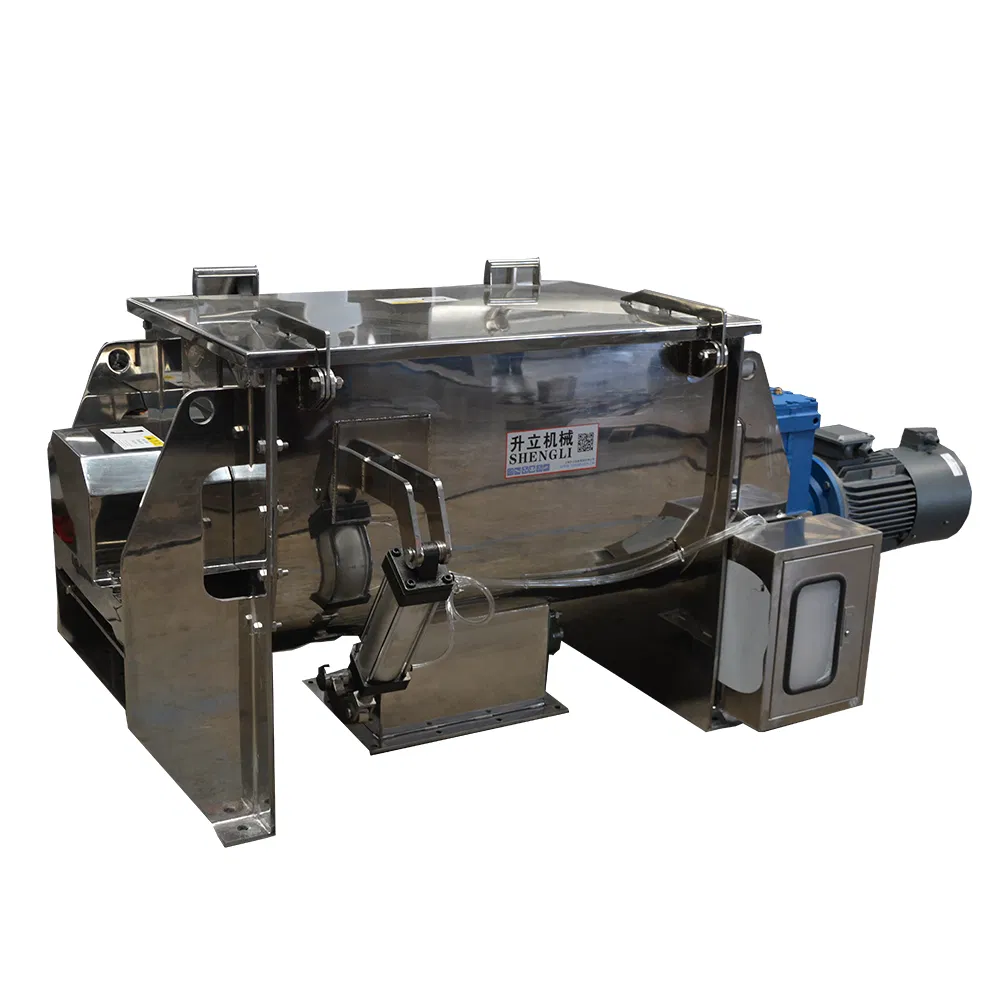

The horizontal ribbon mixer is a high-efficiency single-shaft mixer. It features a tubular mixing drum housing a main shaft with double proportioned vortex ribbons. The rotation creates a convective motion: the outer ribbon pushes material from both ends toward the center, while the inner ribbon pushes it from the center toward the ends. This dual-action ensures thorough convection mixing. Additionally, the vortex structure and shaft rotation ensure efficient discharge with minimal leftover residue.
Core Applications: Powder-Powder, Powder-Grain, Powder-Liquid, Grain-Grain, and more.

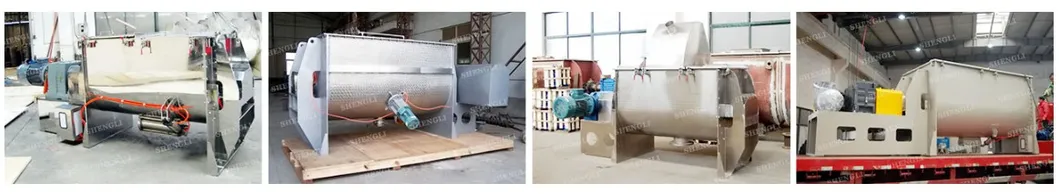

Construction materials include carbon steel, manganese steel, SS304, 316L, and 321. Different materials can be combined. Surface treatments range from sandblasting and wiredrawing to mirror polishing, tailored to specific parts of the mixer.

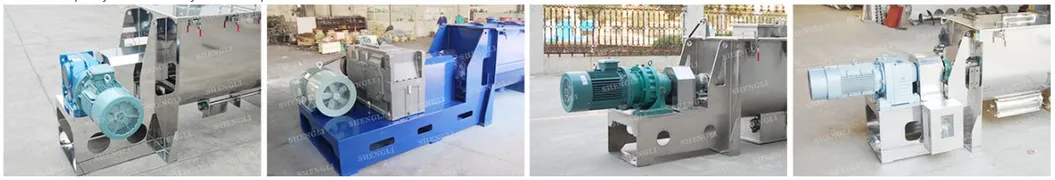

Motor options include general, explosion-proof, variable frequency, and high-efficiency energy-saving models. Reducer options cover R/K/F-series gearboxes, cycloidal, universal, and planetary types. Connection methods include direct, pulley, or hydraulic coupler connections.

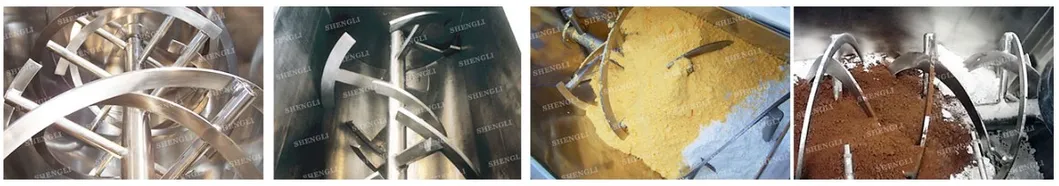

Main shaft agitators are customizable based on raw material properties. Options include inner/outer ribbons, paddle and ribbon combinations, disconnected ribbons, or shaver-shaped agitators.

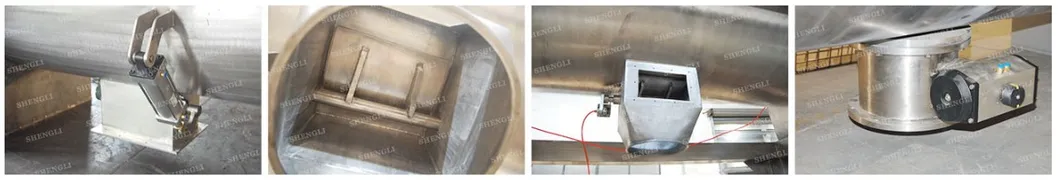

Valves are available in manual, pneumatic, or electric drive types. Specific valve types include powder spherical, cylinder, plum-blossom dislocation, butterfly, and rotary valves.

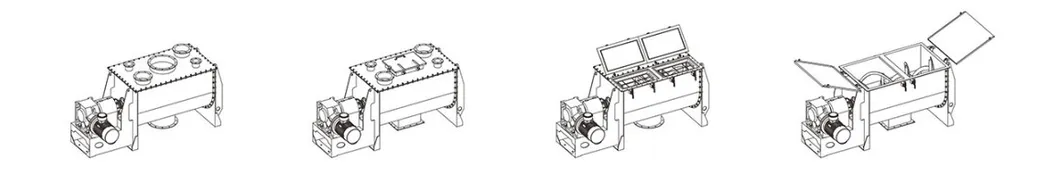

Top cover inlets are designed for multiple functions: manholes, cleaning doors, feeding holes, vents, and dust collection holes. Covers can be designed as fully-opened lids for easy internal cleaning.

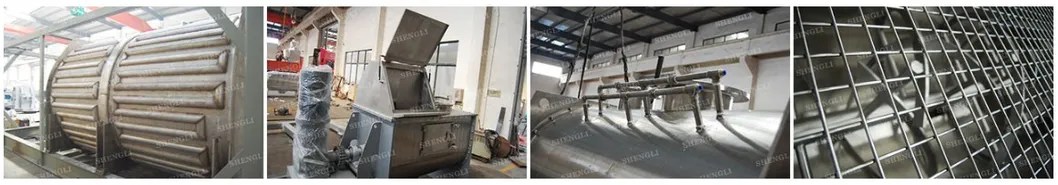

Auxiliary options include steam coil jackets, honeycomb pressure jackets, high-speed choppers, temperature sensors, weighing systems, and dust removal systems. Jackets support both heating and cooling up to 250°C.
| Model | Power (kw) | Speed (rpm) | Working Capacity (kg/Batch) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|
| LHY-0.1 | 3 | 41 | 40-60 | 1190×740×770 | 330 |
| LHY-0.3 | 4 | 41 | 120-180 | 2300×680×1060 | 550 |
| LHY-0.5 | 5.5 | 41 | 200-300 | 2900×780×1240 | 900 |
| LHY-1 | 11 | 33 | 400-600 | 3200×1000×1400 | 1600 |
| LHY-2 | 15 | 33 | 800-1200 | 3860×1200×1650 | 2700 |
| LHY-3 | 18.5 | 33 | 1200-1800 | 4320×1300×1900 | 3600 |
| LHY-4 | 22 | 27 | 1600-2400 | 4600×1400×2000 | 4200 |
| LHY-5 | 30 | 27 | 2000-3000 | 4850×1500×2020 | 5100 |
| LHY-6 | 37 | 27 | 2400-3600 | 5400×1560×2200 | 5600 |
| LHY-8 | 45 | 22 | 3200-4800 | 5100×1720×2420 | 6500 |
| LHY-10 | 45 | 22 | 4000-6000 | 5610×1750×2360 | 7800 |
| LHY-15 | 55 | 14 | 6000-9000 | 5820×2000×2900 | 11000 |
| LHY-20 | 75 | 14 | 8000-12000 | 6060×2630×3160 | 13000 |
