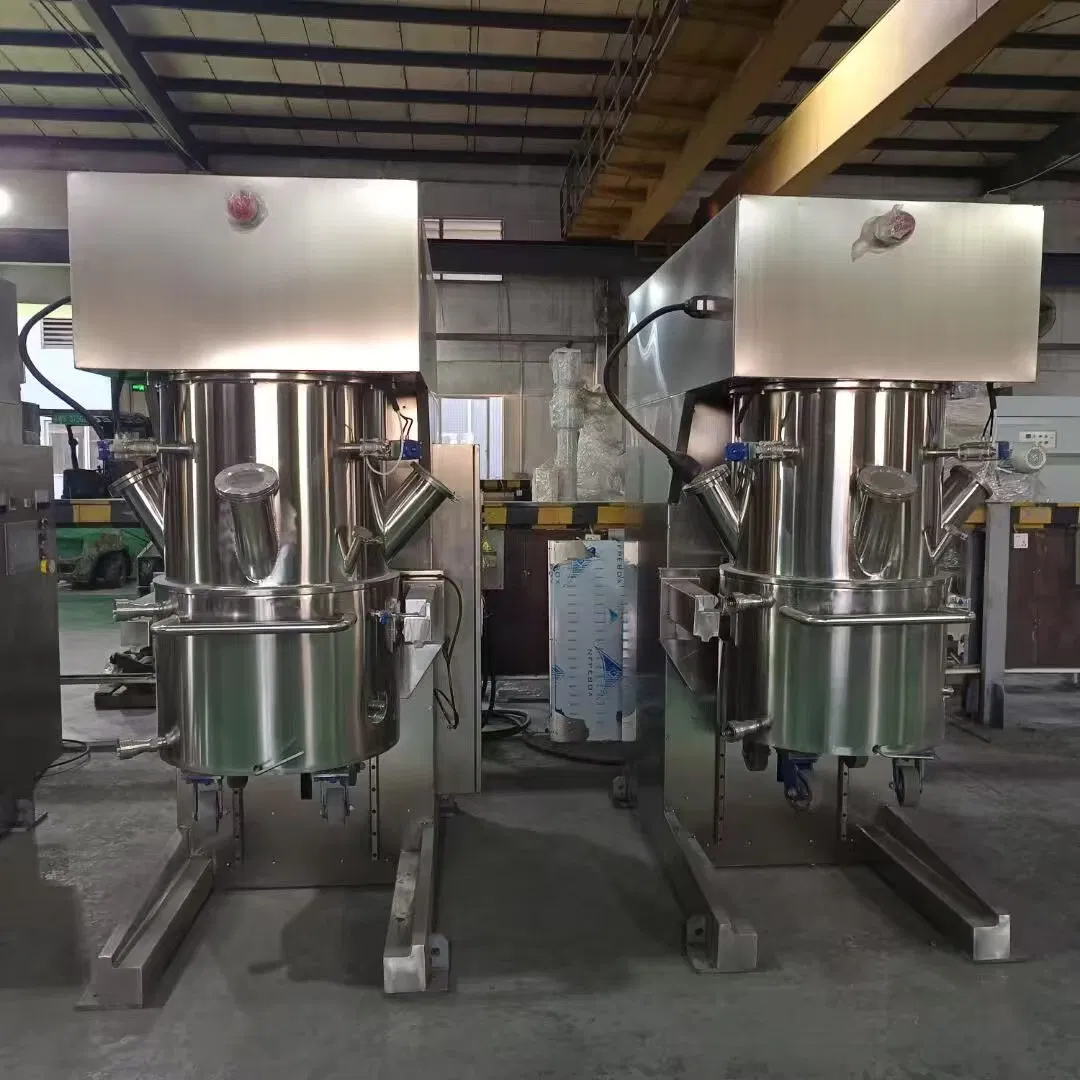

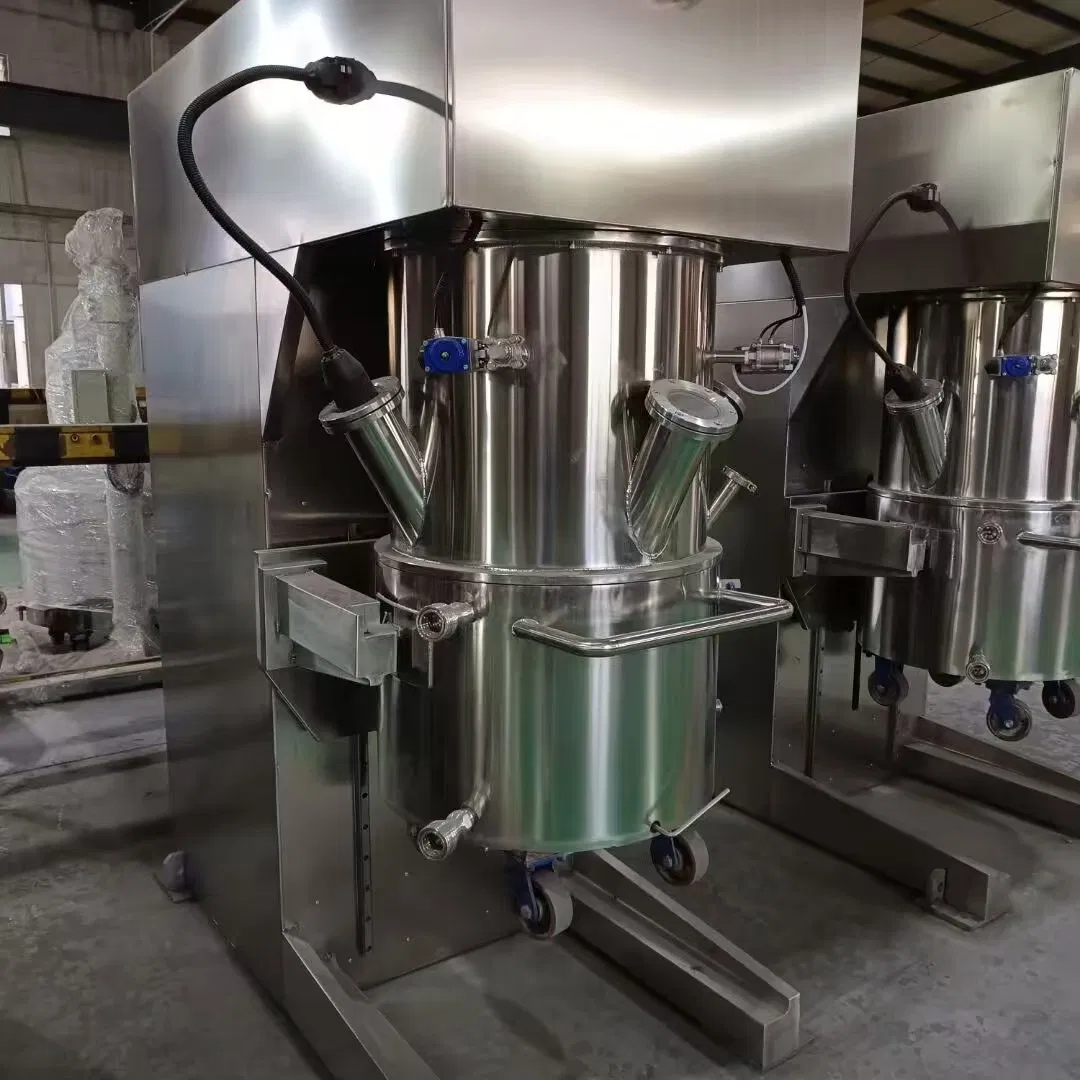

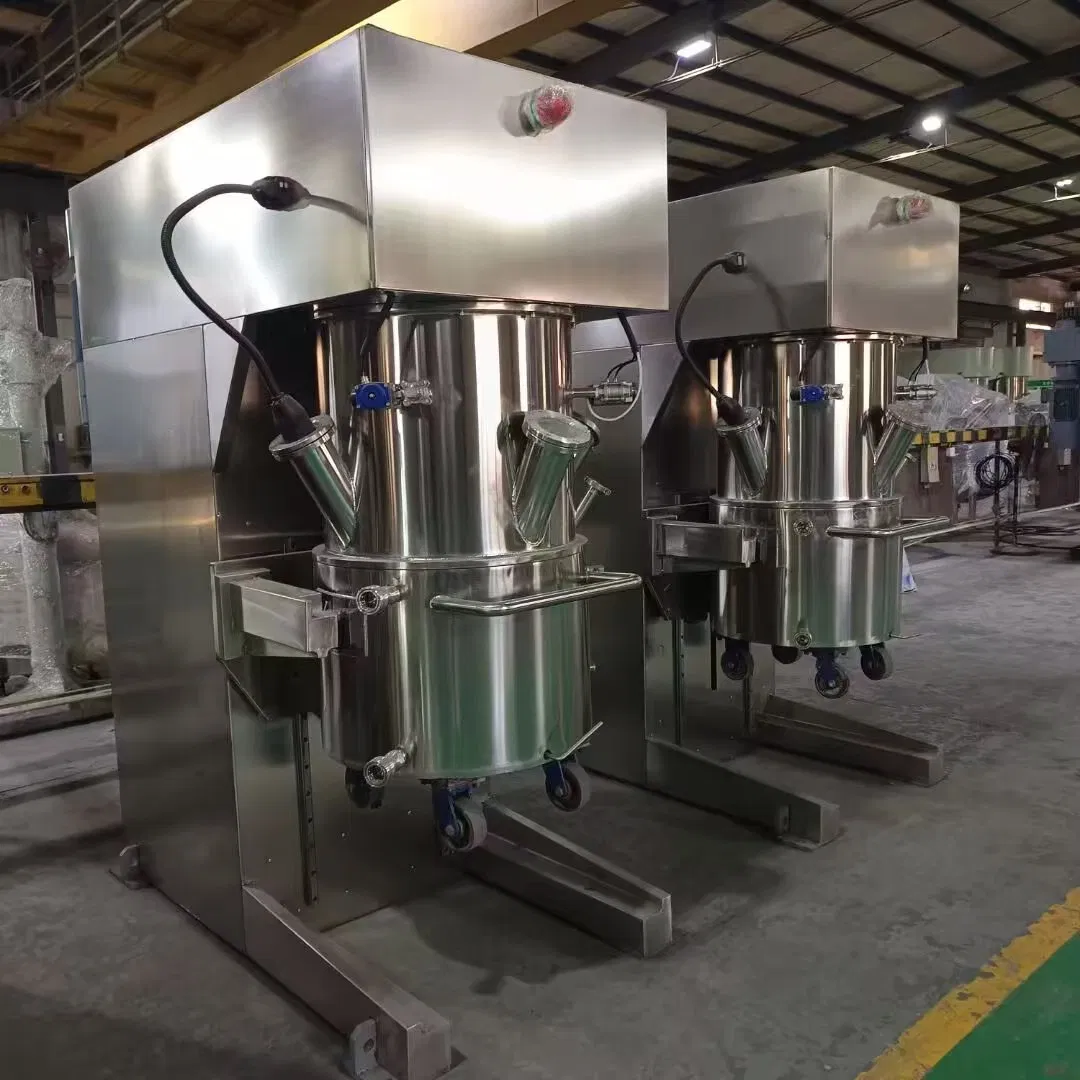

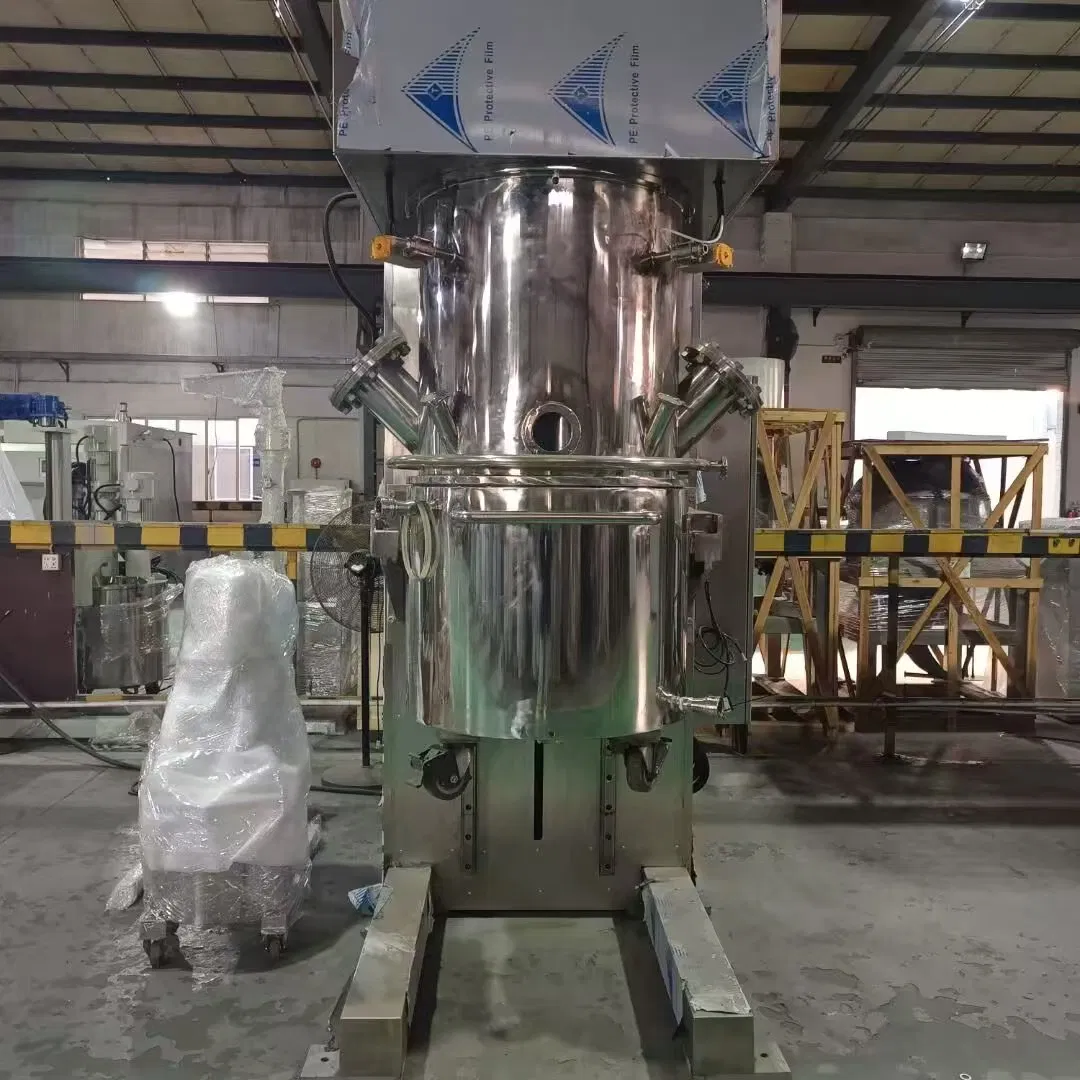

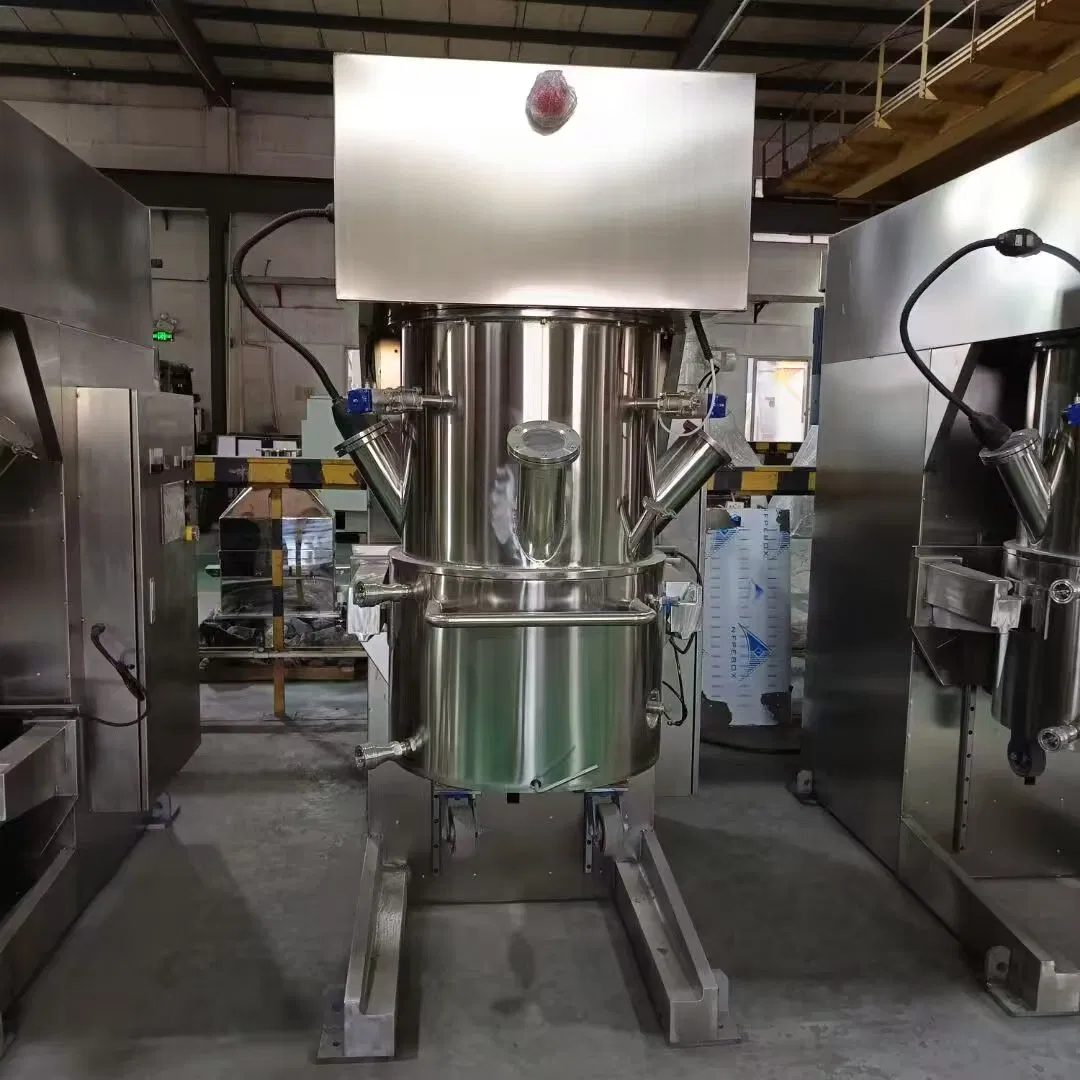

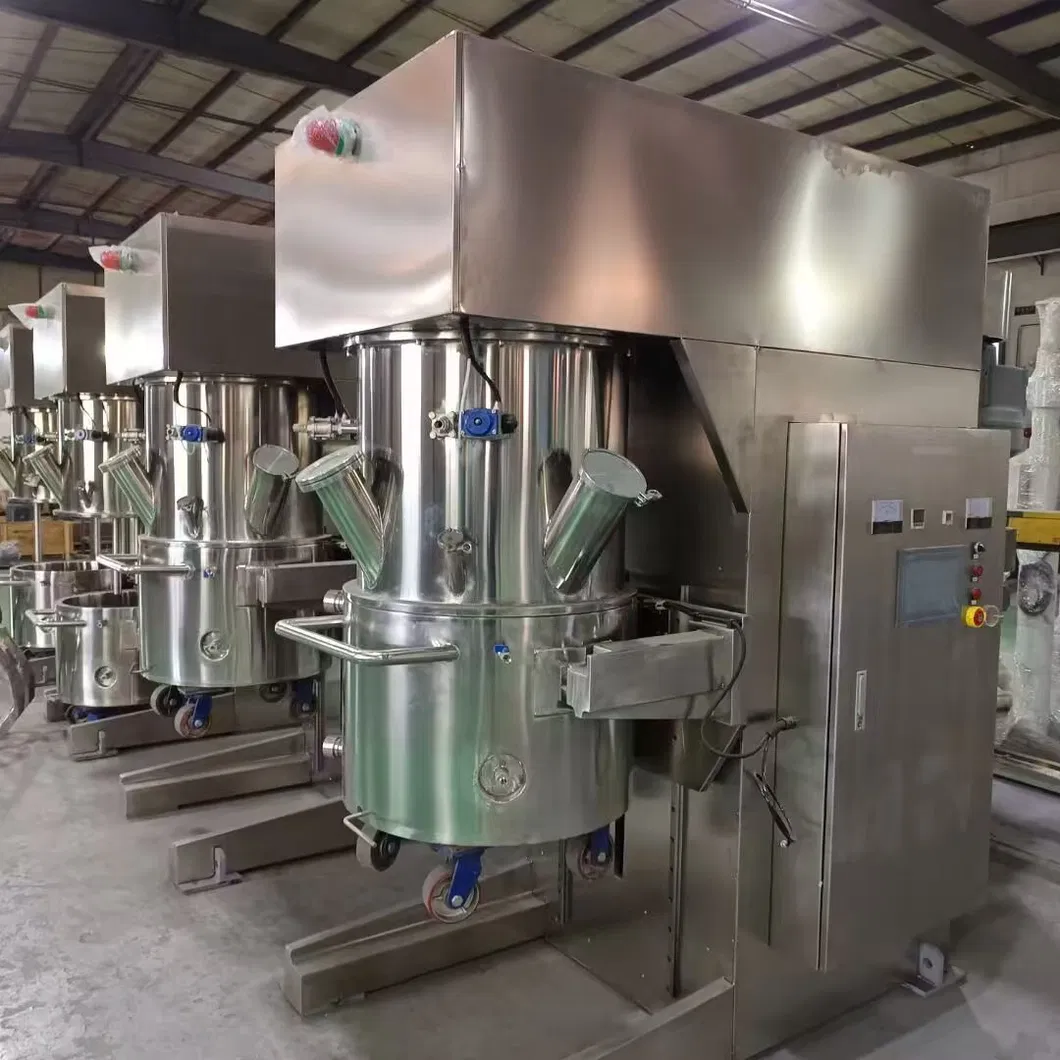

Double Planetary Mixer for Epoxy Resin and Industrial Adhesive Mixing

1 / 5

Double Planetary Mixer for Epoxy Resin and Industrial Adhesive Mixing

Customization:	Available
Additional Capabilities:	Vacuum
After-sales Service:	Engineers Available to Service Machinery Overseas, Online Support, video Technical Support

Send Inquiry

Product Description

Basic Specifications

Application

Granules, Liquid, Powder, Viscous Fluid

Application Area

Chemical, Food, Pharmaceutical

Certification

Control System

PLC Control

Main Material

Stainless Steel

Mixing Capacity

100-250L

Mixing Type

Double Planetary Mixing

Motor Power

22kw

Speed Control

Variable Speed

Suitable Viscosity

1,000-1,000,000 Cps

Product Overview

This 200L High-Viscosity Double Planetary Mixer is specifically engineered for processing challenging high-viscosity materials. It is the ideal solution for adhesives, sealants, battery slurries, and conductive pastes. The dual planetary system, combined with high-speed dispersion, ensures complete uniformity and efficient deaeration under vacuum conditions.

⚙️

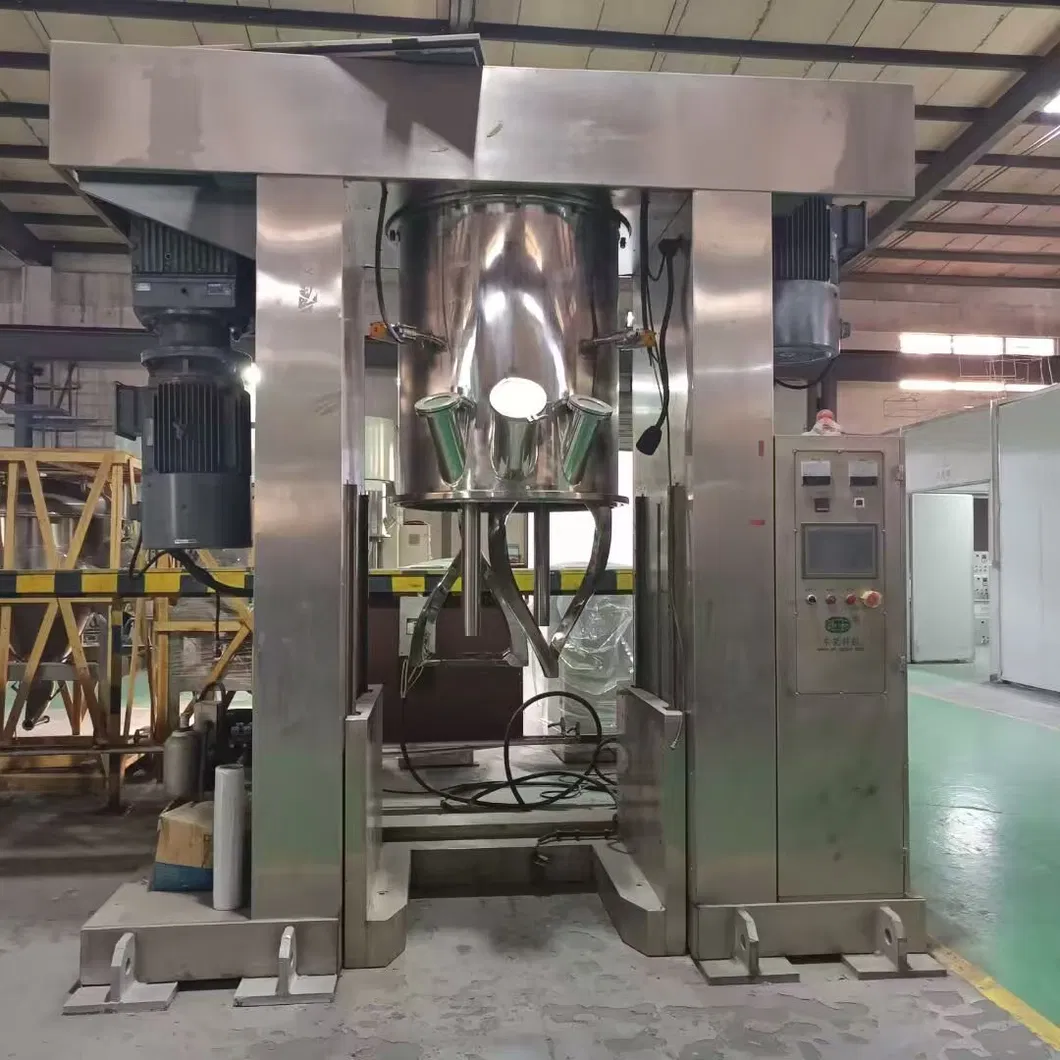

Dual Planetary System

Two spiral paddles and two serrated discs for simultaneous mixing and dispersion.

🌀

Vacuum Deaeration

Processes material in a vacuum environment to eliminate air bubbles for high-density slurries.

🌡️

Thermal Control

Equipped with a stainless steel double-layer jacket for precise heating and cooling.

📱

Smart Control

PLC + HMI Interface with full data logging and recipe management capabilities.

Industrial Applications

Adhesives & Sealants Lithium-ion Battery Slurries Electronic Pastes Cosmetic Creams Pharmaceutical Gels Specialty Coatings

Energy: Cathode and anode slurry for advanced battery manufacturing.
Chemicals: High-performance silicone, epoxy, and polyurethane systems.
General Industry: Conductive inks, pigment pastes, and high-solids coatings.

Technical Data Sheet

Parameter	Specification
Model	KRS-200L
Working Volume	80-200L
Stirrer Speed	5-46 RPM (VFD Control)
Dispersion Speed	100-2800 RPM (VFD Control)
Main Motor Power	22 kW
Dispersion Motor Power	22 kW
Vacuum Leak Rate	≤ 10% in 12 hours
Material Contact Parts	SUS304 / SUS316L / PTFE
Dimensions (L×W×H)	2700×1360×2810 mm
Equipment Weight	Approx. 4.3 tons

Frequently Asked Questions

Q1: Can this mixer handle materials with viscosity over 1 million cP?

Yes, the dual planetary design with powerful independent motors and high-torque gearboxes is specifically engineered to process materials like thick silicone sealants and conductive pastes.

Q2: How do you ensure the mixture is bubble-free?

The system maintains a high vacuum level during the mixing process. Our tanks feature precision seals and a leak rate of less than 10% over 12 hours, ensuring effective deaeration.

Q3: Is the equipment easy to clean between batches?

Absolutely. The mixing barrel is detachable and mounted on heavy-duty casters. All internal paddles and the tank interior are mirror-polished to prevent material adhesion.

Q4: What safety features are included?

The machine includes comprehensive safety interlocks, emergency stop buttons, overload protection, and a vacuum safety lock to prevent opening under pressure.

Q5: Can the control system be customized?

Yes. We use Panasonic PLC and MCGS Touch Screens as standard, but we can customize interfaces, add MES system connectivity, or provide explosion-proof configurations upon request.

Q6: What is the standard warranty period?

The equipment comes with a 12-month warranty from final acceptance or 18 months from the date of shipment, supported by lifetime technical assistance.

Why Choose Our Mixing Solutions?

Expertise: Over 10 years of specialized experience in high-viscosity mixing technology.
Quality: Rigorous in-house R&D and strict quality control protocols for every unit.
Customization: Fully tailorable configurations for specific material contact and port requirements.
Support: Fast response times with global technical support available 24/7.
