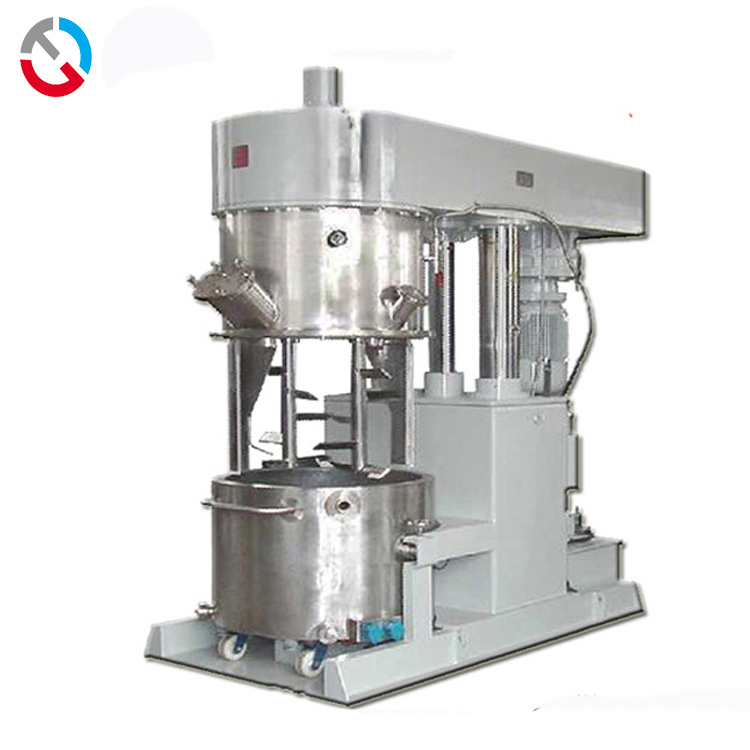

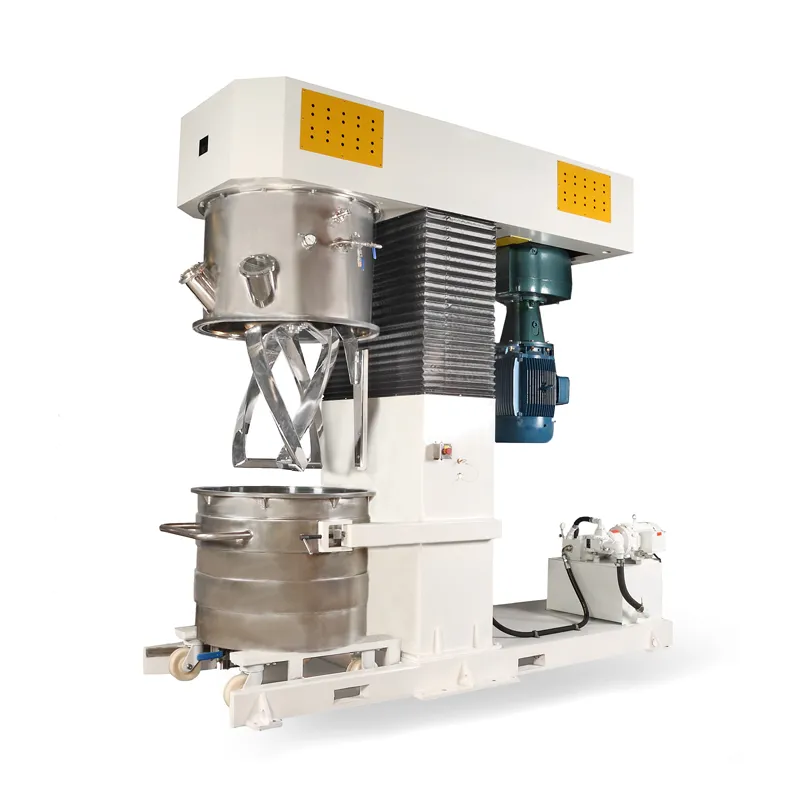

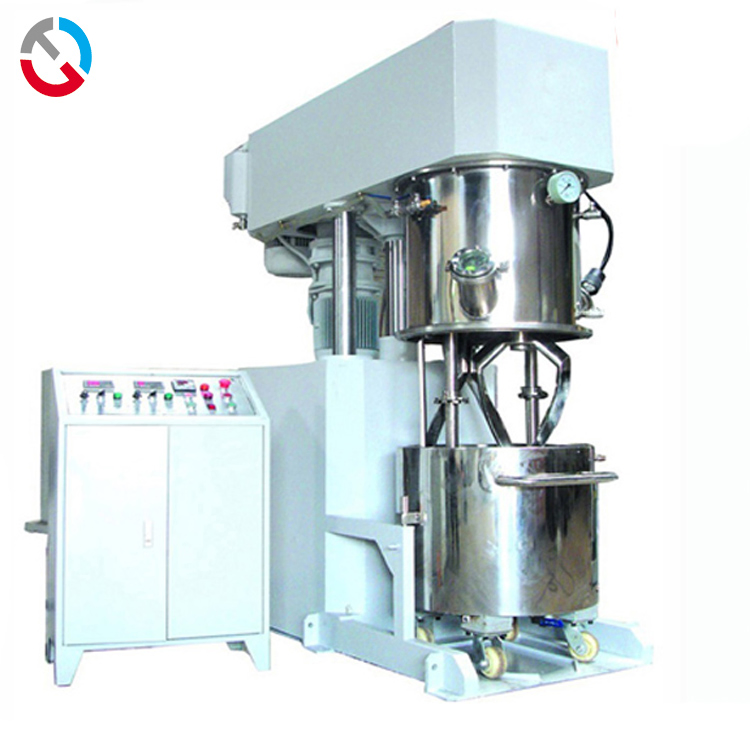

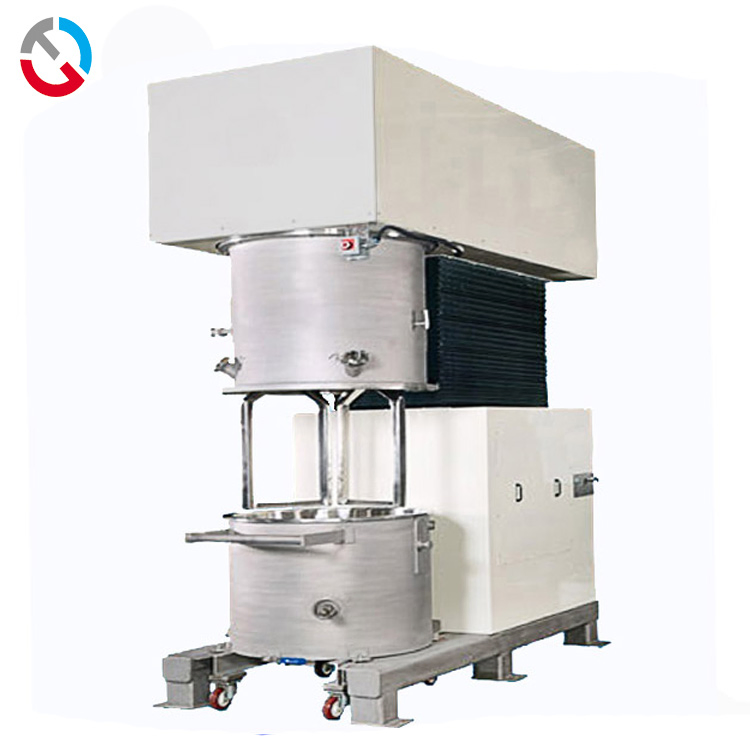

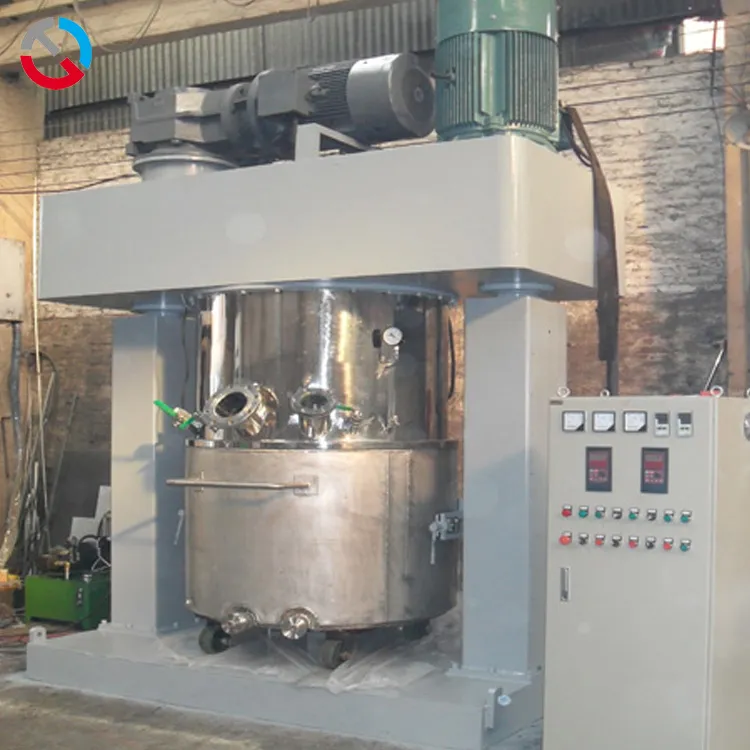

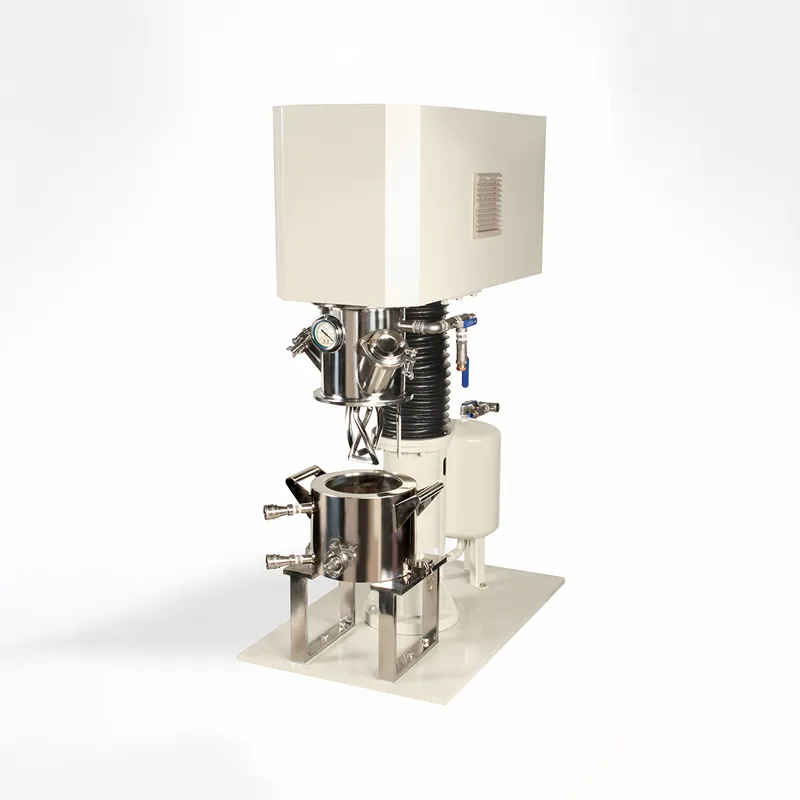

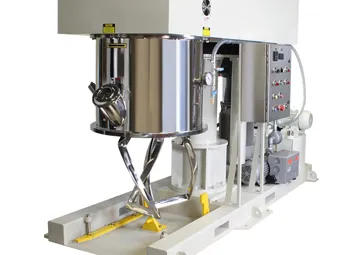

1) Commercial stand type planetary mixer is a kind of highly efficient and versatile mixer with mixing, dispersing, cutting and mixing function.

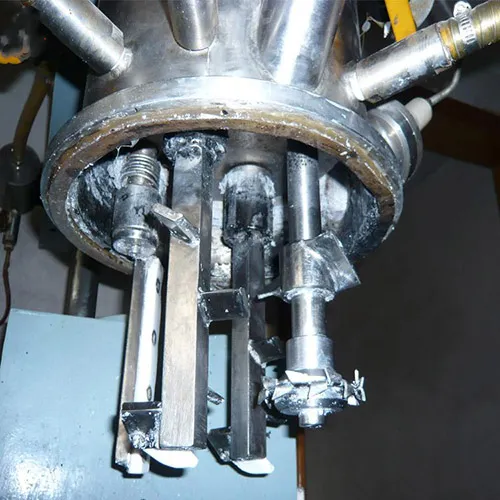

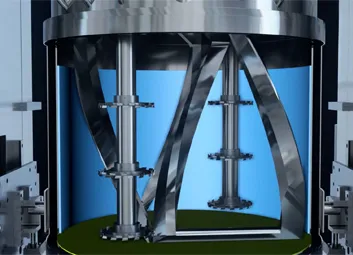

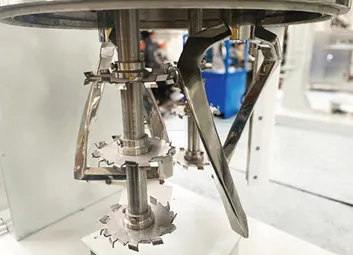

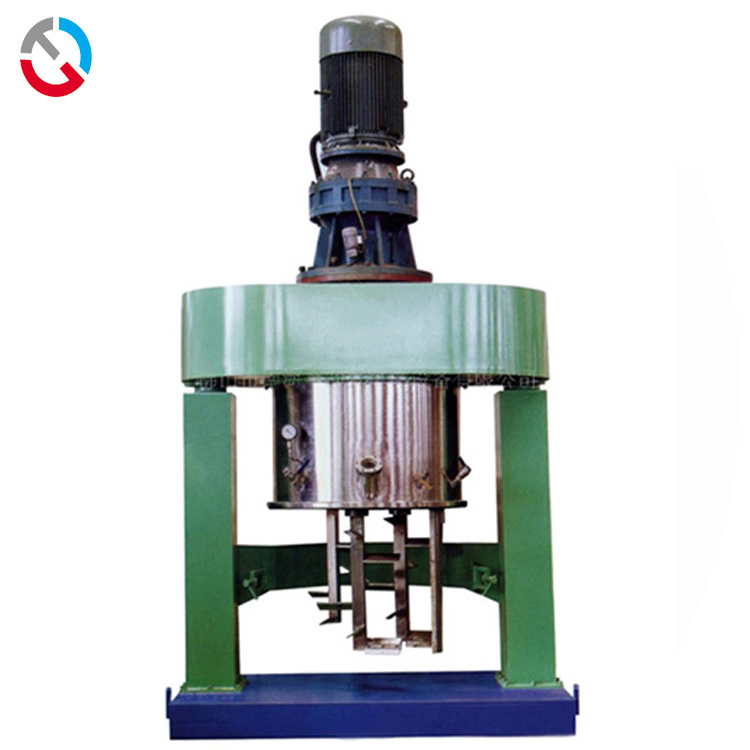

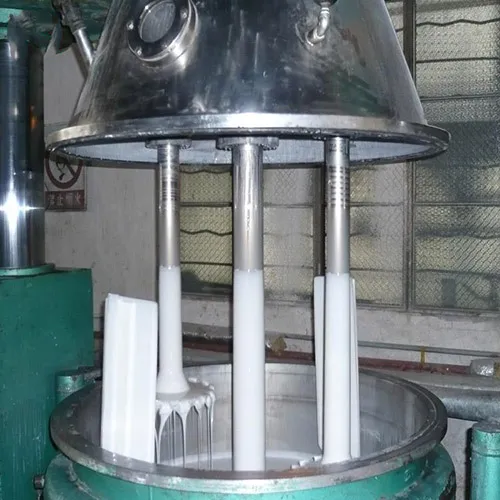

2) Groups of agitators rotate around the central axis of the kettle body, with different speed rotation to make the material perform complex movement. The material is strongly cut and mixed. Vertical shape blades scrape the cylinder wall and bottom to ensure an ideal mixing effect.
3) Agitators can be designed as multi-layer blades, frame type, butterfly type, leaf type, etc.
4) Excellent sealing performance allows for vacuum pumping to exhaust and eliminate bubbles inside the material.

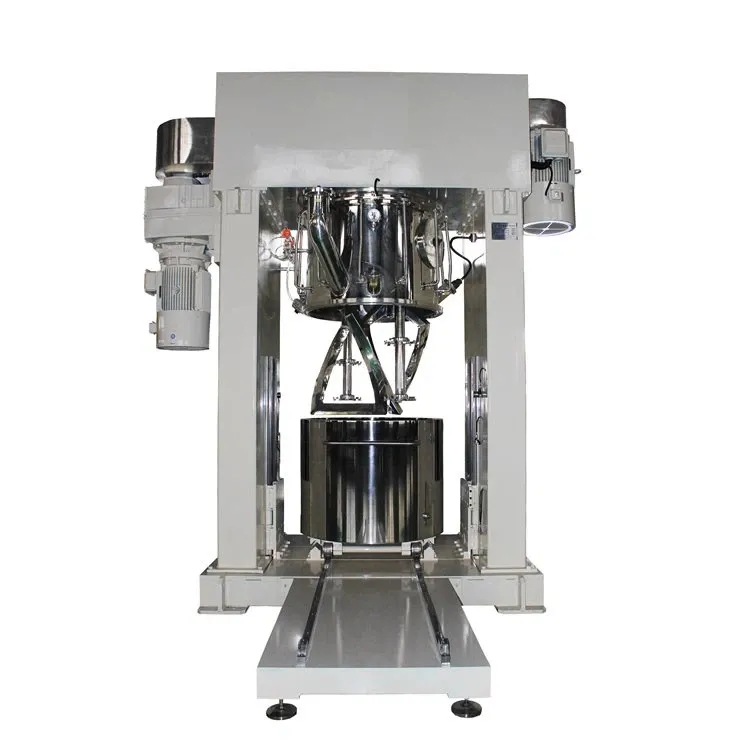

5) Equipped with a hydraulic lifting device, allowing the cylinder to move freely for convenient operation.
| Model | Feeding Vol (L) | Planetary Motor (kW) | High Speed Motor (kW) | Revolution Speed (rpm) | Rotation Speed (rpm) | Dispersion Speed (rpm) |
|---|---|---|---|---|---|---|
| DLH-6L | 3.6 | 1.5 | 1.5 | 27 | 43 | 0~1000 |
| DLH-20L | 12 | 3 | 3 | 27 | 43 | 0~1000 |
| DLH-60L | 36 | 4 | 4 | 27 | 43 | 0~1000 |
| DLH-100L | 60 | 7.5 | 5.5 | 27 | 43 | 0~1000 |
| DLH-200L | 120 | 15 | 11 | 27 | 43 | 0~1000 |
| DLH-600L | 360 | 22 | 22 | 27 | 43 | 0~1000 |
| DLH-1000L | 600 | 37 | 30 | 23 | 43 | 0~1000 |
| DLH-2000L | 1200 | 55 | 45 | 23 | 43 | 0~1000 |
Our machinery team has been producing industrial mixing, dispersing, kneading, blending and drying equipment for over 15 years. We aim to "make mixing easier," increasing durability across industries including cosmetics, chemicals, plastics, battery slurry, inks, pharmaceuticals, adhesives, sealants, and electronic glues.
We design and customize for every unique project starting with 3D craft exposition. Our reliable team of engineers and product analyzers are always ready to solve your inquiries regarding applications.
