5 Row Automatic Continuous Dough Divider Rounder

Send Inquiry

Product Description

Basic Specifications

Model NO.BKMK-DR5

Power SourceElectric

Timing DeviceWith Timing Device

TypeDough Divider and Rounder

Voltage220V or 380V

Capacity10000PCS/Hour Maximum

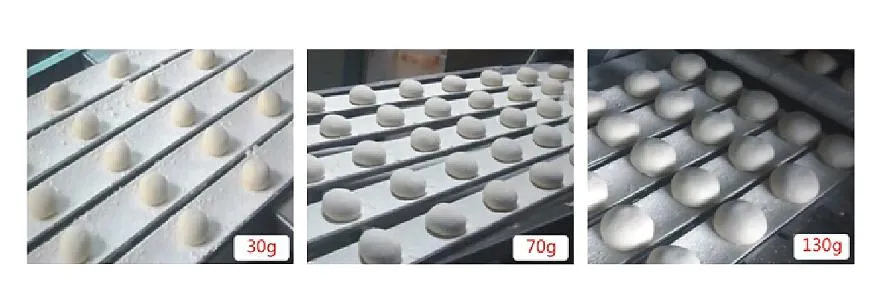

Dough Ranges25-130g/PCS

Power4.5kw

Weight920kg

ApplicationFrozen Doughs, Hamburgers, Sweet Bread, Buns

Specification2100*1100*1800MM

OriginChina

Product Description

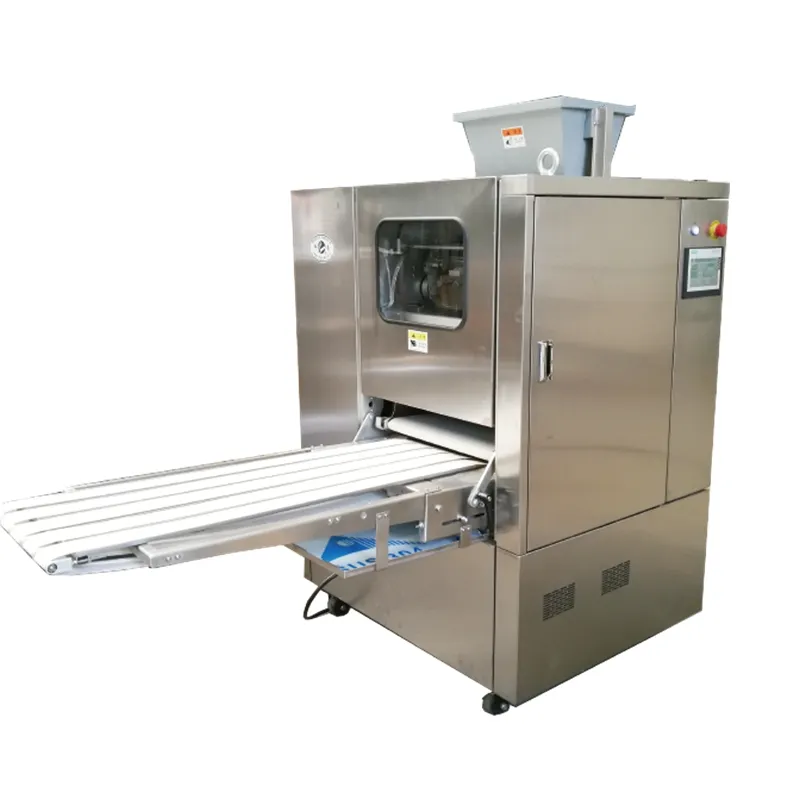

5 row dough divider and rounder machine, suitable for frozen doughs, hamburgers, sweet bread, buns.
Accurate weight control: error range is between ±1-2g.

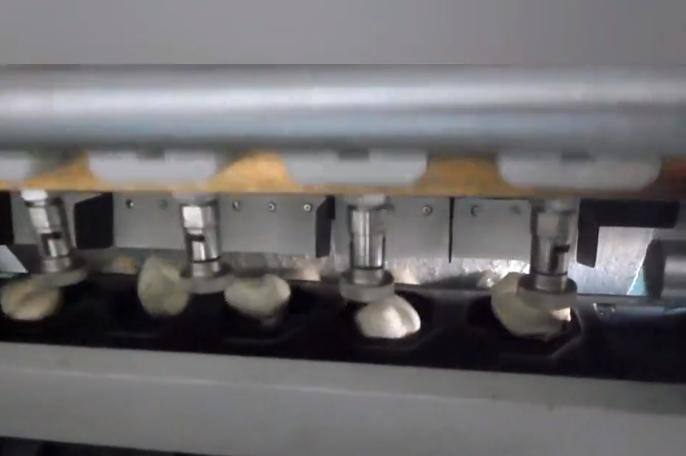

Oil-free dividing system: No need to add dividing oil for lubrication, significantly reducing usage costs.
Durable and new all stainless steel body for maximum hygiene and longevity.
Suitable for soft to medium dough, with a loading hopper capable of carrying approximately 35KG.
Easy to clean: No tools required for daily cleaning; detachable with bare hands.

Rounding Drum Optional Specifications
PISTON	Rounding Drum Range	Configuration Note
Standard piston assembly (4 pieces/set) (For 28-75g dough)	28-40g	1. Optional two specifications for standard round rolling drum 2. Optional 1 standard piston set
	40-55g
	55-70g
Quantitative increase piston components (4 pieces/group) (For 75-130g dough)	70-90g
	90-110g
	110-130g

Model	Weight Range	Rows	Capacity
BKMK-DR5	25-130g	5	10000 pcs/hour
BKMK-DR4	30-210g	4	8000 pcs/hour
BKMK-DR3	130-250g	3	6000 pcs/hour
BKMK-DR2	150-350g	2	4000 pcs/hour
BKMK-DR1	300-700g	1	2000 pcs/hour

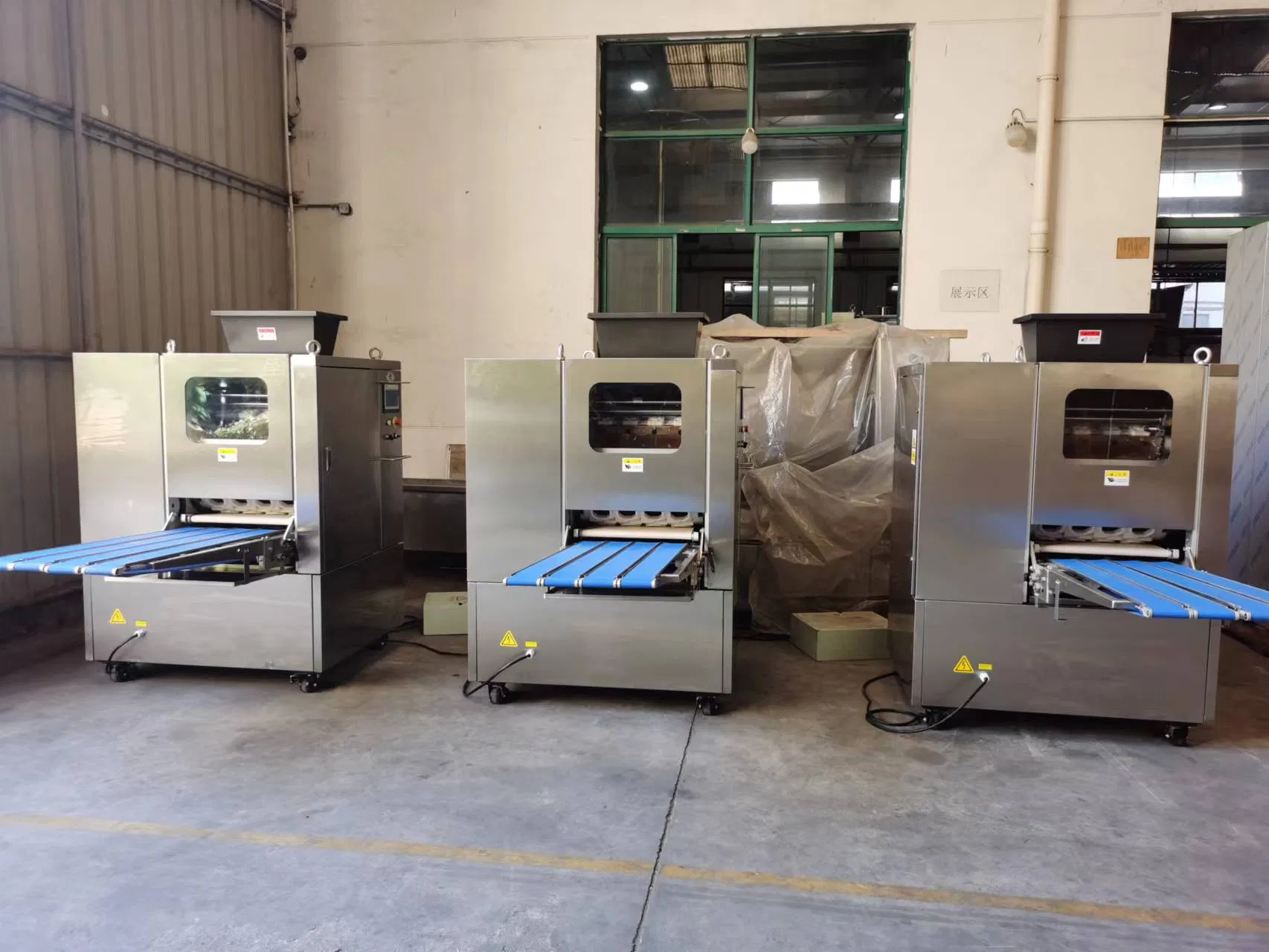

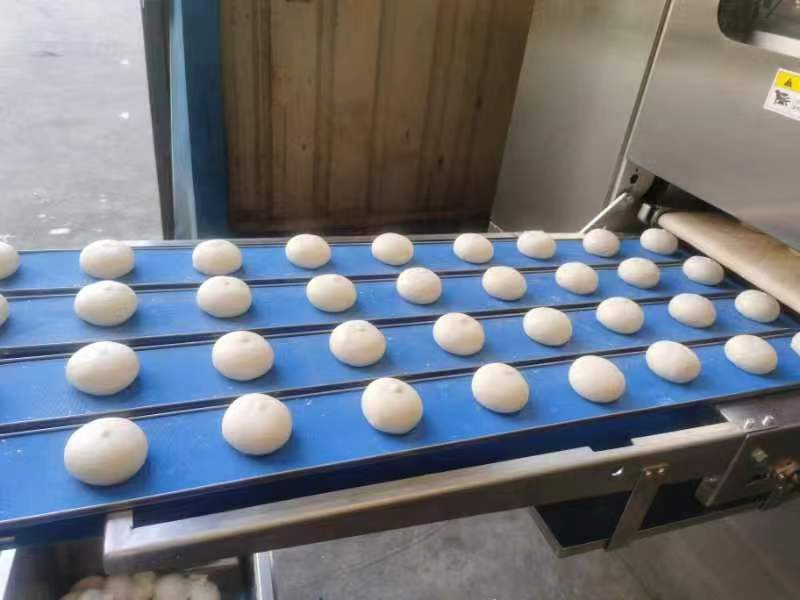

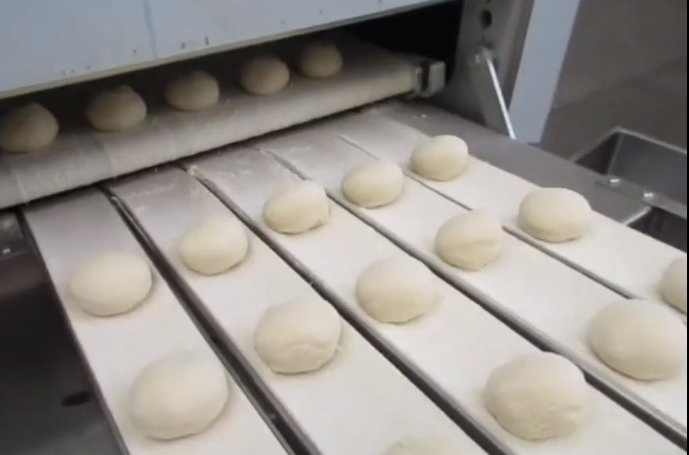

Product Display

Frequently Asked Questions

What is the maximum production capacity of the BKMK-DR5?

The machine can produce up to 10,000 pieces per hour when configured with 5 rows.

Does the dividing system require lubrication oil?

No, this model features an oil-free dividing system, which eliminates the need for lubrication oil and reduces overall production costs.

What is the weight range and accuracy of the dough pieces?

The machine handles a dough range of 25-130g per piece with a high precision error range of only ±1-2g.

Is the machine easy to clean for daily maintenance?

Yes, it is designed for easy cleaning. No tools are required for daily disassembly, and parts can be detached with bare hands.

What types of products are suitable for this machine?

It is ideal for soft to medium doughs, specifically for making frozen doughs, hamburgers, sweet bread, and various types of buns.

What material is the machine made of?

The entire body of the machine is constructed from durable, high-quality stainless steel, ensuring food safety and longevity.
