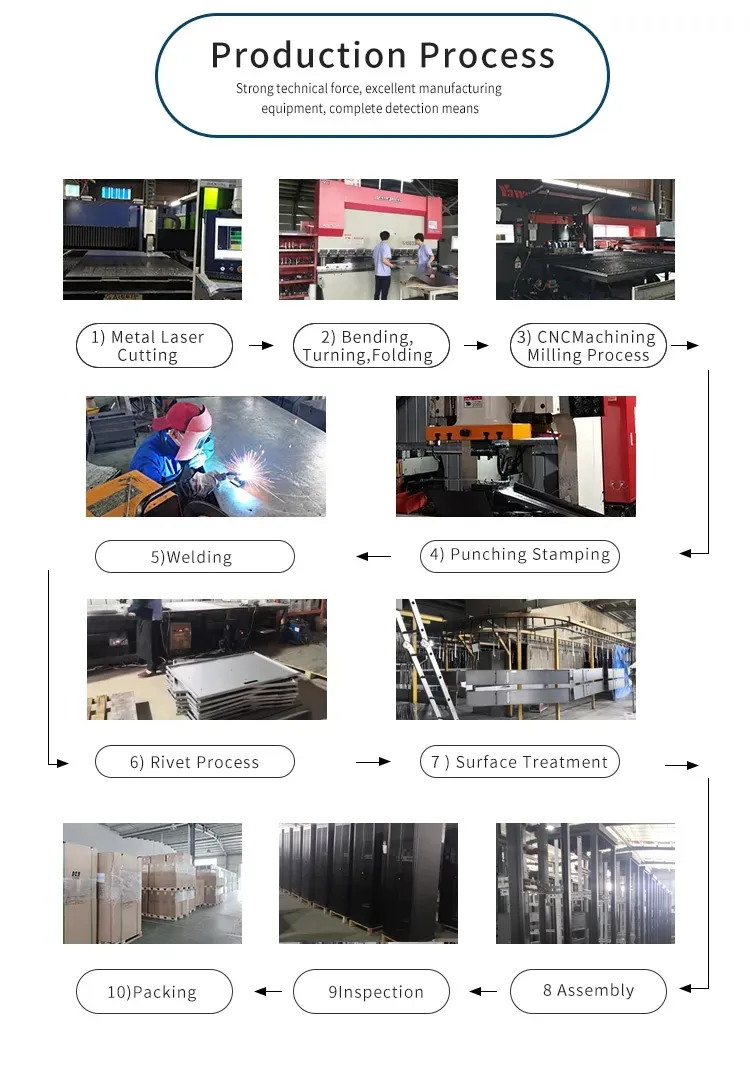

Manufactured from high-quality steel sheet, punched, formed, welded, and powder-coated under stringent ISO 9001 quality management systems to ensure a premium product.

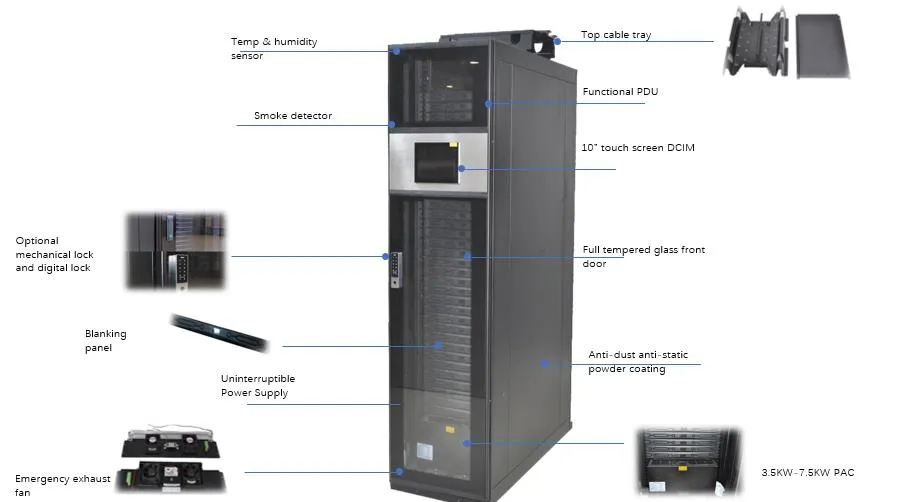

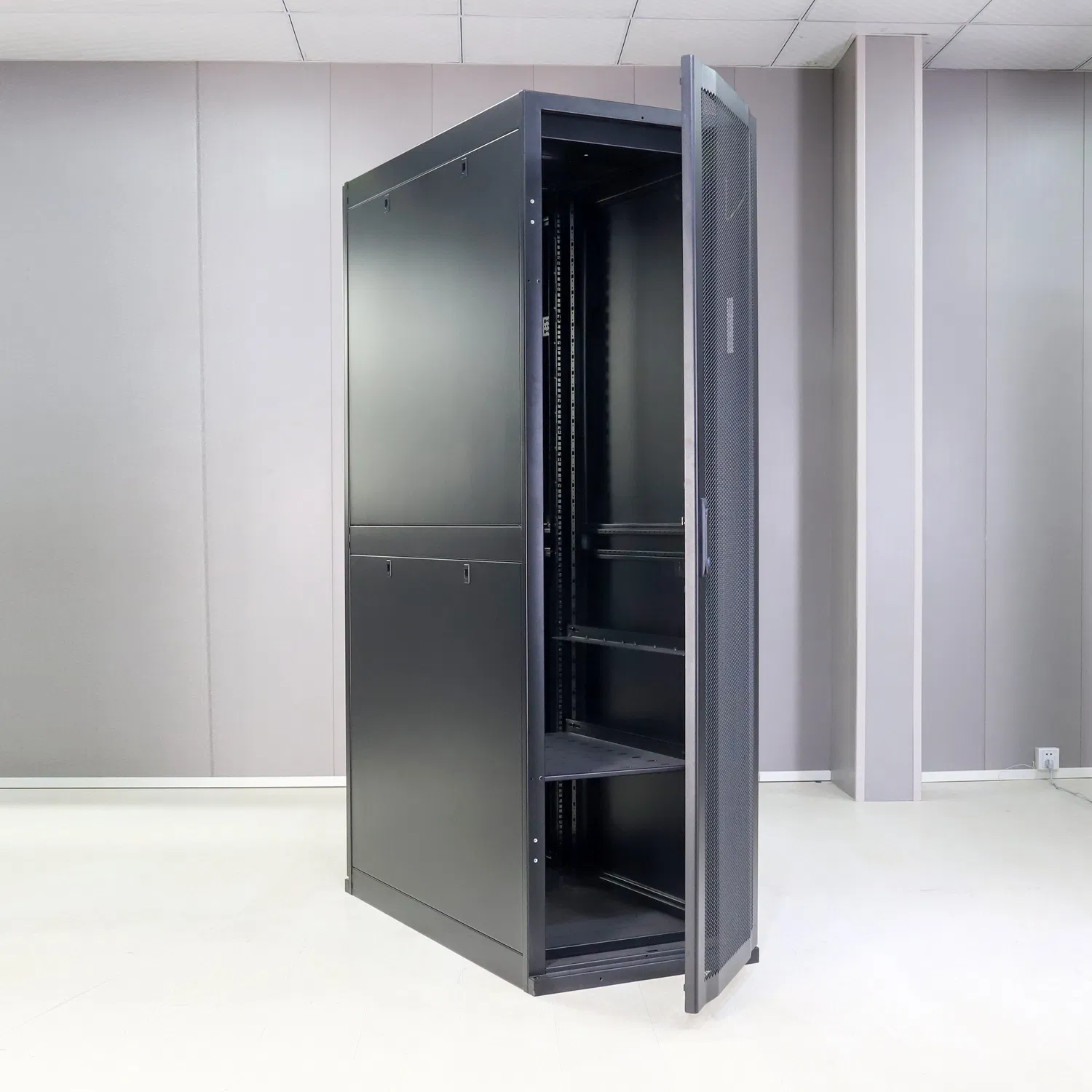

The standard configuration features a welded ultra-rigid frame with 4 pillars made of 16-gauge steel with a 6-folded profile. The top and bottom frames are ribbed and reinforced, supported depth-wise by six 75mm 16-gauge depth rails. The front features a glass door with lock and key, while the back has a metal door with lock and key, complemented by dual side panels.

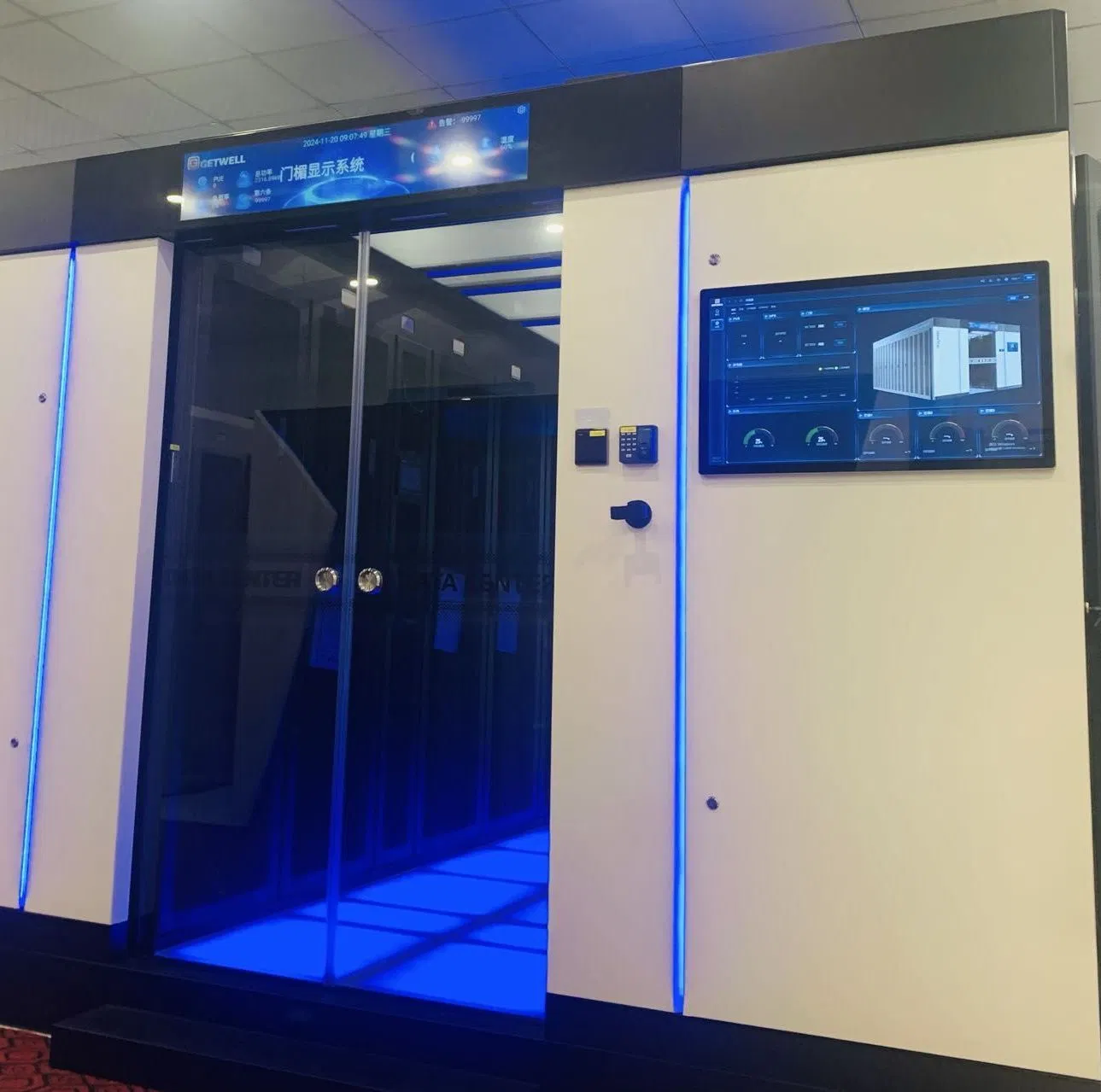

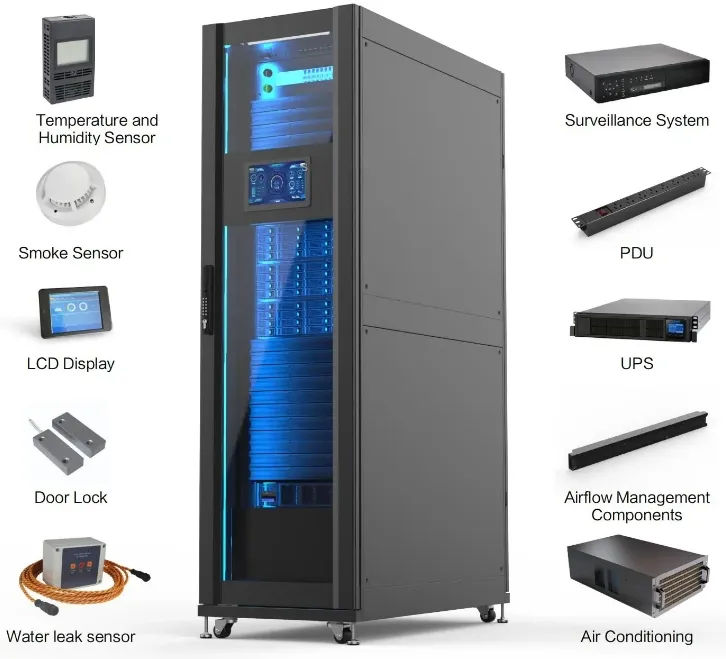

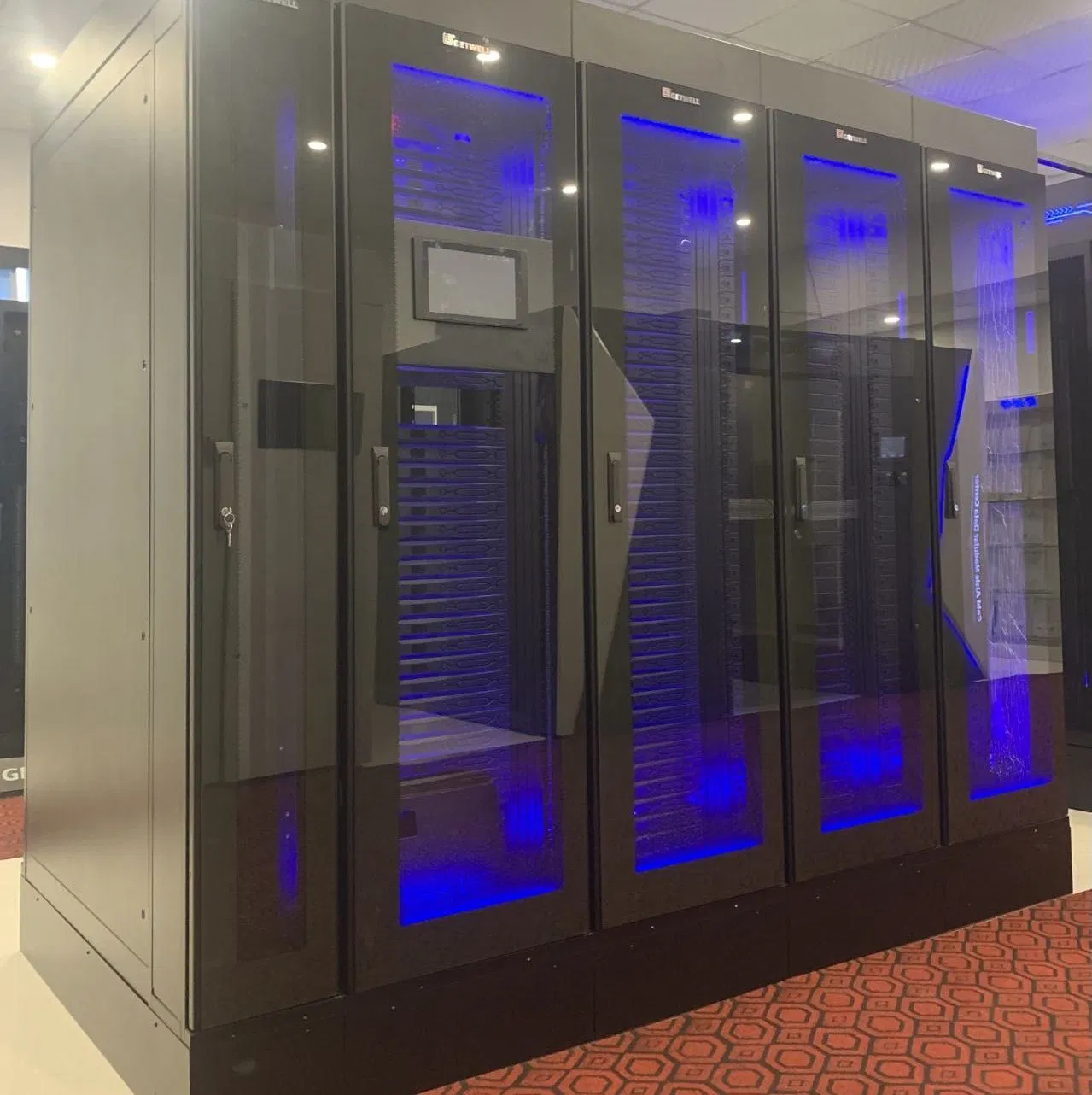

This solution achieves a true micro-modular machine room environment. It requires no special facility and can be placed directly in offices, business halls, conference rooms, warehouses, or factories. The integrated system includes air flow management, power distribution, rack UPS, battery packs, refrigeration, emergency ventilation, and a comprehensive monitoring system.
| Rack System Specifications | 1 Rack | 2 Racks | 3 Racks | 4 Racks | |

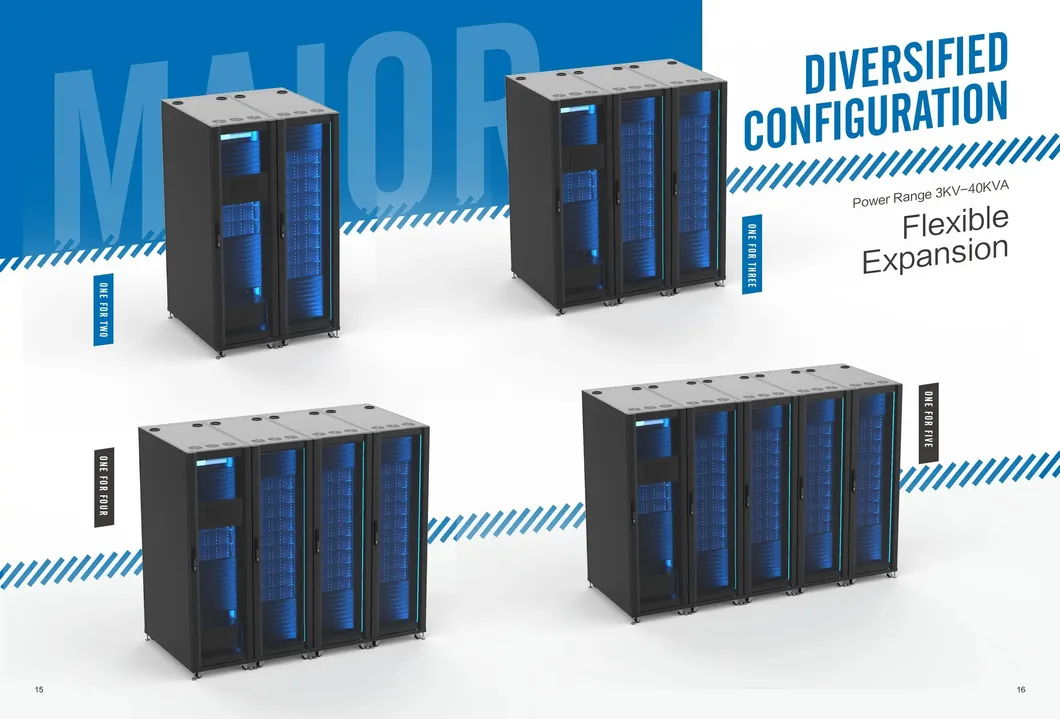

| Physical Properties | Expansion Method | All racks can be installed side by side; end racks equipped with side panels | |||
| Configurable Power | 2.4KW | 2.4KW - 4.8KW | 4.8KW - 8KW | 8KW - 12KW | |
| System Dimensions | 600*1200*2000mm | 1200*1200*2000mm | 1800*1200*2000mm | 2400*1200*2000mm | |
| LED Atmosphere | RGB variable atmosphere lights (Red, Green, Blue) on front sides; auto-switching top lighting | ||||
| Power & Cooling | Standard Specs | Advanced Specs | |||
| Cooling System | Cooling Capacity | 3.5KW | 7KW / 12.5KW | ||
| Wind Circulation | Front air intake; rear return wind flow | ||||
| UPS System | Capacity Options | 3KVA / 6KVA | 10KVA / 15KVA | ||
| Backup Time | 5-10 minutes for full load (Internal battery) | ||||

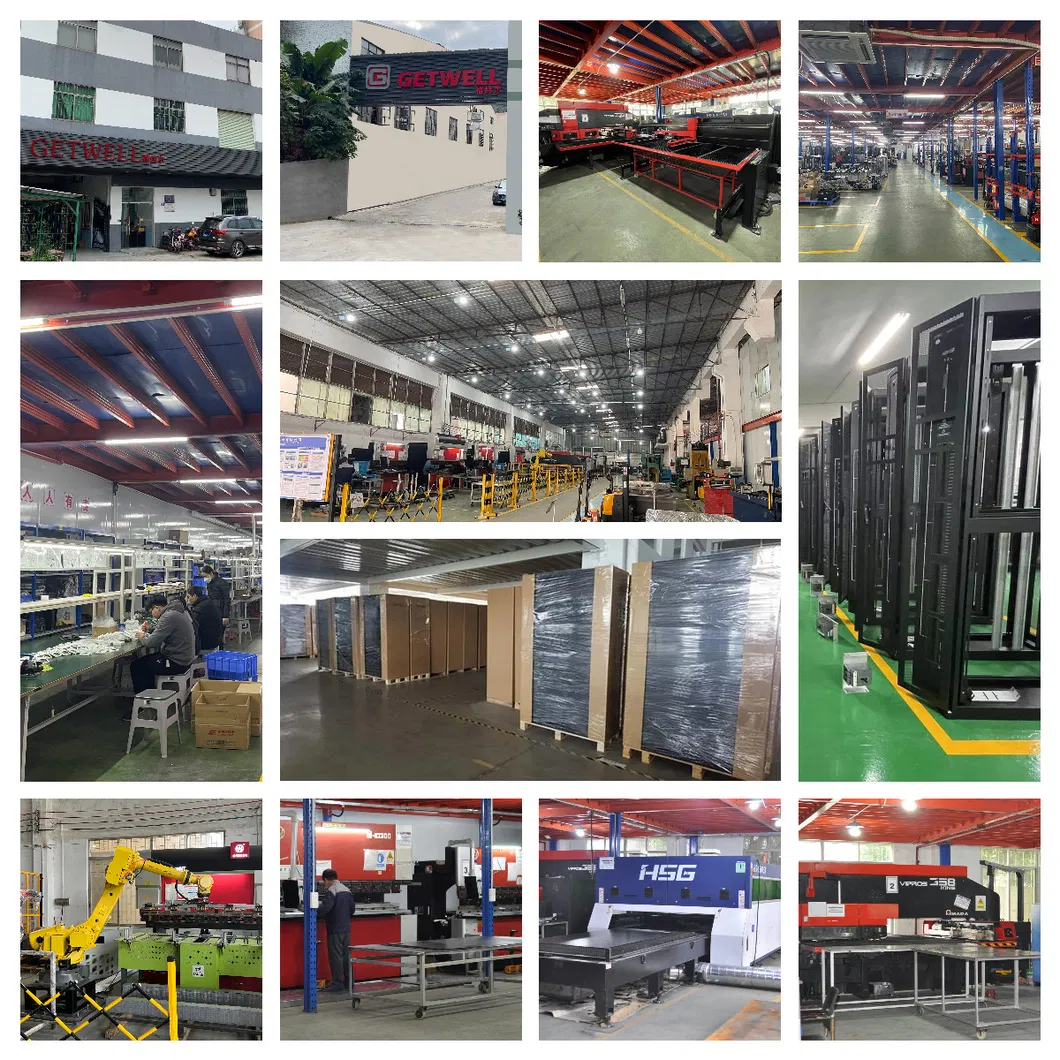

Our facility has been delivering high-quality, innovative products and technologies to the IT industry for over 15 years. We specialize in data center infrastructure design, construction, manufacturing, operation, and maintenance. Our dedicated engineering teams include industrial designers, structural engineers, software experts, power distribution specialists, and HVAC engineers.
We are committed to continuous product improvement, focusing on performance, high loading capacity, and compact packing to reduce transport costs. Our solutions are designed to be modern, innovative, and secure, meeting the needs of global IT leadership standards.
