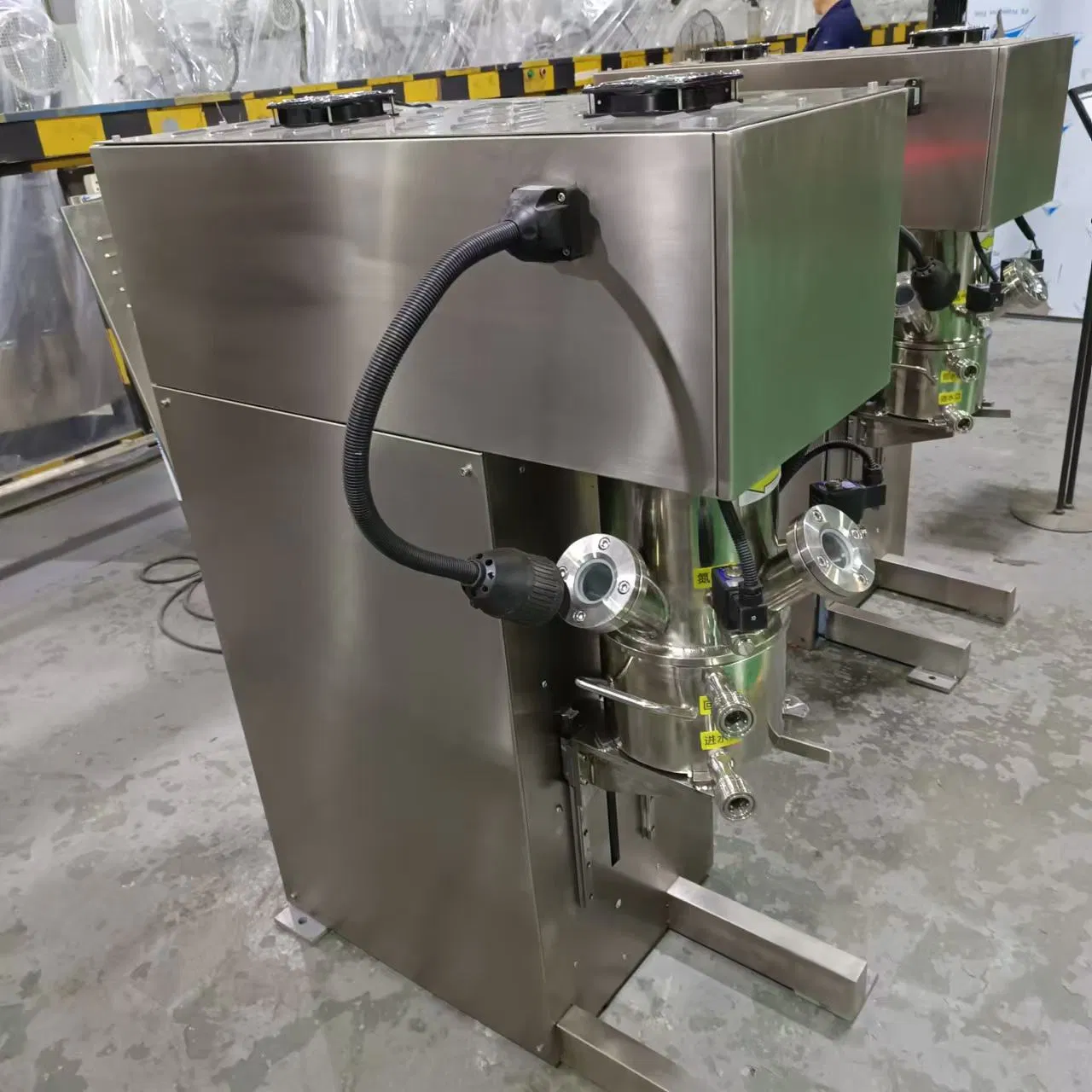

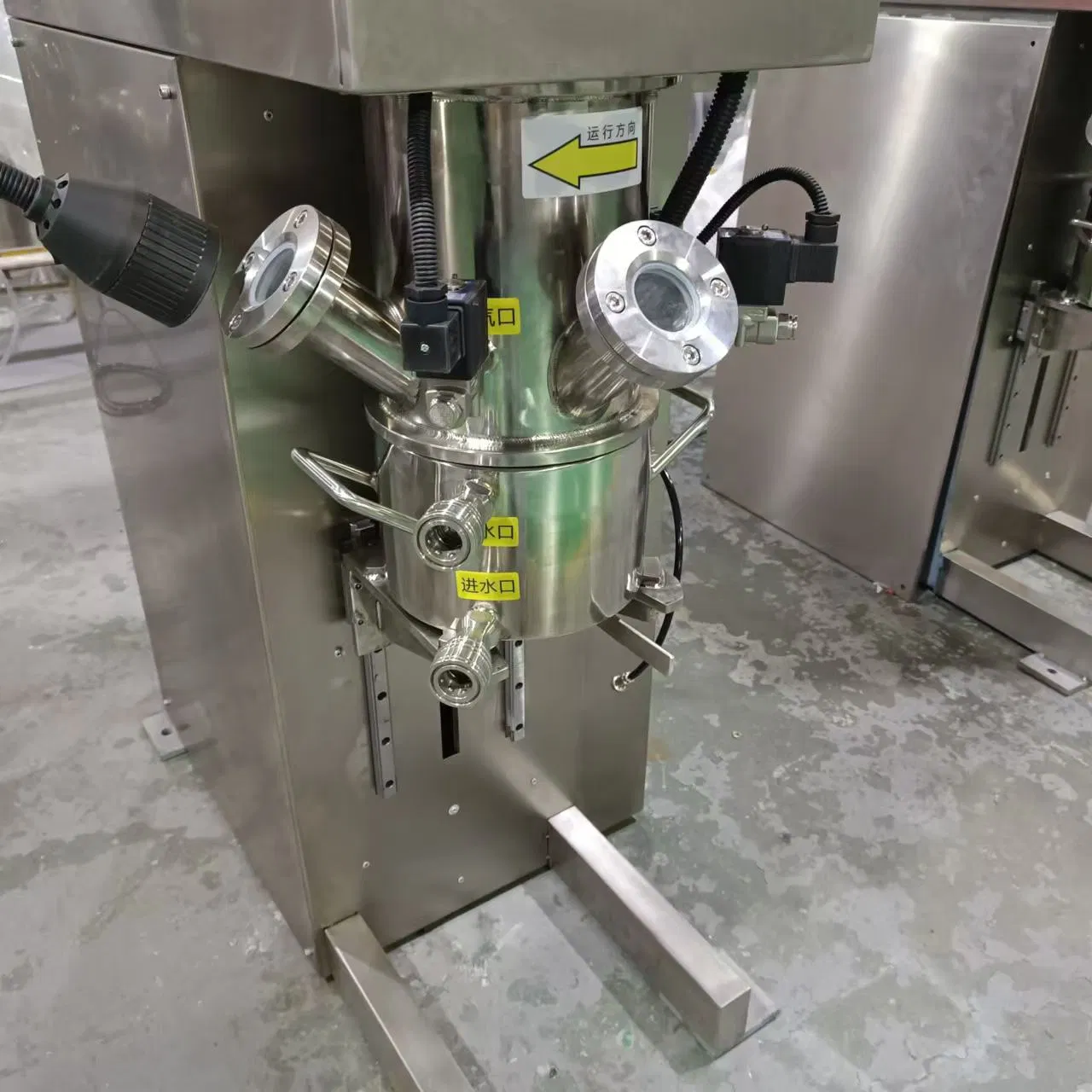

Hot Sale 2L High Viscosity Dual Planetary Mixer for Lithium Battery Mixing

Customization: Available
Additional Capabilities: Vacuum
After-sales Service: Engineers Available to Service Machinery Overseas, Online Support, video Technical Support

Product Description

📋 Basic Information
Model NO.
KR-GN-2L
Application
Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Chemical, Food, Pharmaceutical, Engineering
Certification
CE, ISO
Control System
PLC Control
Heating Method
Hot Water Heating
Material
Alloy Steel, Stainless Steel
Stirring Type
Spiral
Dispersion Speed
0-7000 Rpm VVVF
Effective Capacity
2 L
Equipment Weight
Above 0.4 T
Origin
China
⚙️ Product Description
No. Main configuration Items Details
1Equipment appearanceStainless steel
2Mixing motorInverter-fed motor
3Dispersing motorInverter-fed motor
4Control systemInternational brand
5Rake constructionVertical column type
6MES system interfaceOptional
7Temperature systemOptional cold/hot water automatic constant temperature
Note: Custom requirements or additional pipe openings are available upon request. Customers should prepare the main switch power cord and connecting pipes for the mixing tank.
📊 Product Parameters
Working Principle Adopts intelligent control via panel or central system. Features dual planetary structure with two spiral mixing paddles and two sets of serrated dispersing discs. Capable of vacuuming to eliminate bubbles in slurry.
Equipment Composition Vertical column structure, transmission part, sealed container, lifting system, and control system.
External Size 966mm x 745mm x 1320mm (L x W x H)
Mixing Speed Paddle self-rotation: 0-86 rpm; Paddle revolution: 0-40 rpm; Disperse disk: 0-7000 rpm
Power Specs Mixing: 0.75 KW; Disperse: 1.5 KW; Lift: 0.37 KW
Slurry Capability Viscosity: 1,000 ~ 100,000 MPa.s; Solid content: 30%~70% or 85%~100%
Applicable Materials PVDF, CMC, Lithium Iron Phosphate, Lithium Cobalt Acid, Graphite, NMP, Deionized Water, SBR, CNT.
Not Applicable Acetone Solvent

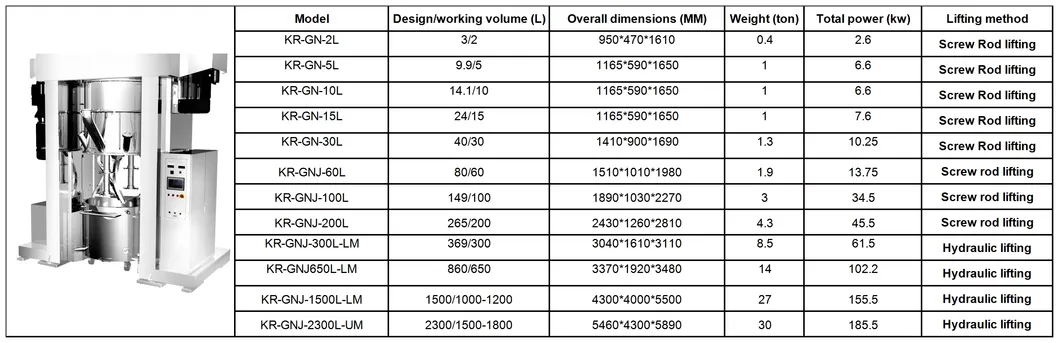

Optional Models
🔍 Structural & Detailed Photos
  • 1. Column type bracket

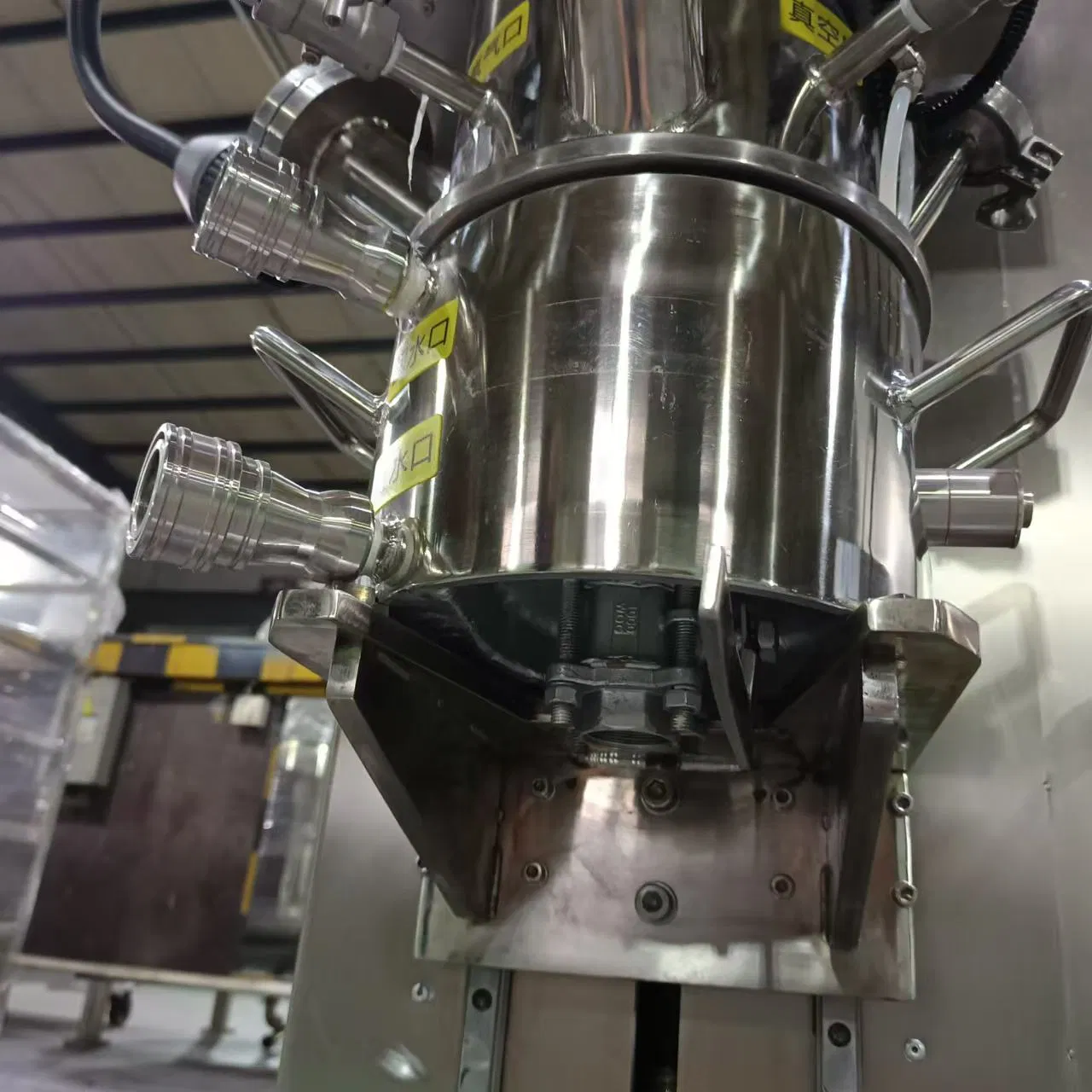

  • 2. Mixing bucket
  • 3. Mixing paddle
  • 4. Feeding end

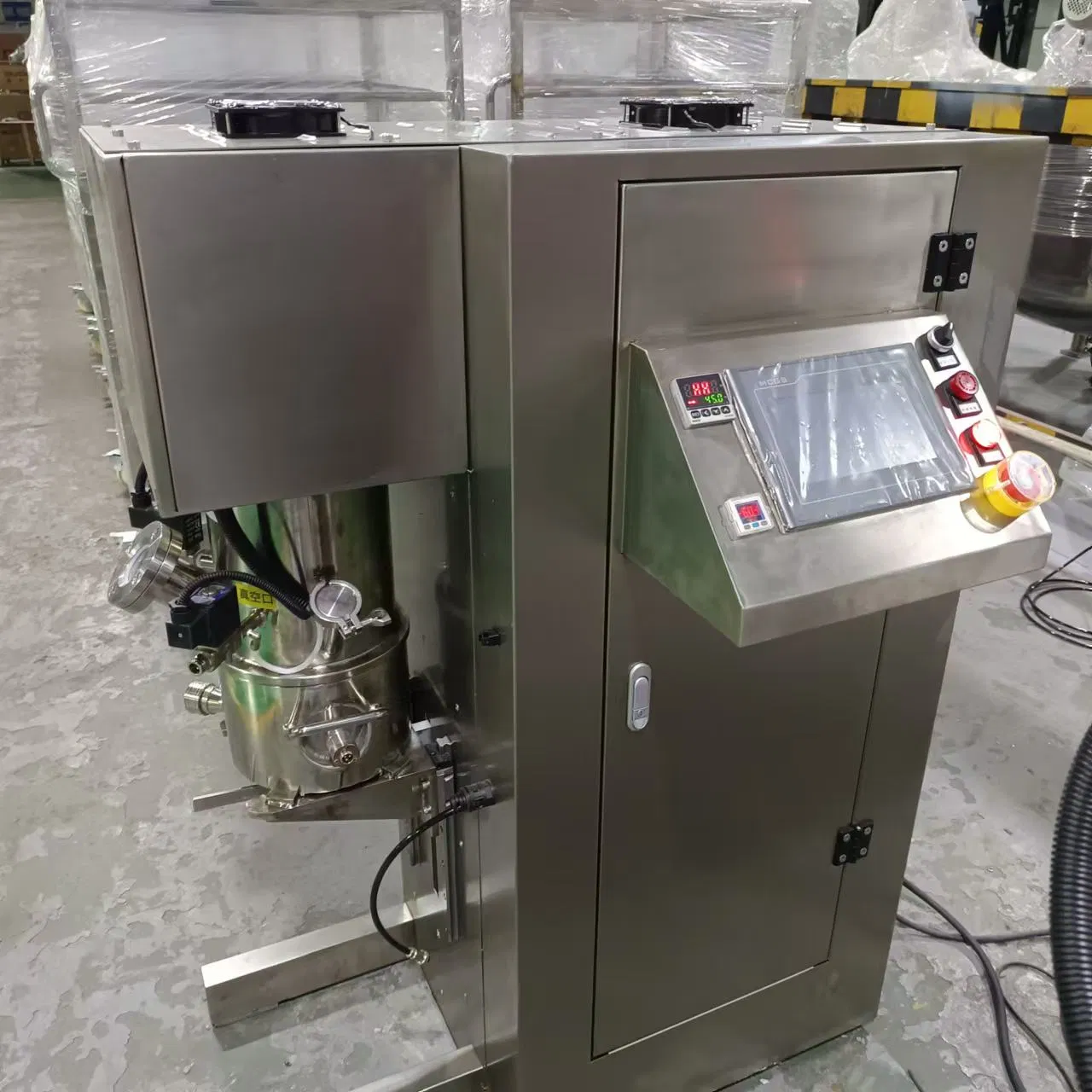

  • 5. Power Distribution Cabinet
  • 6. Motor

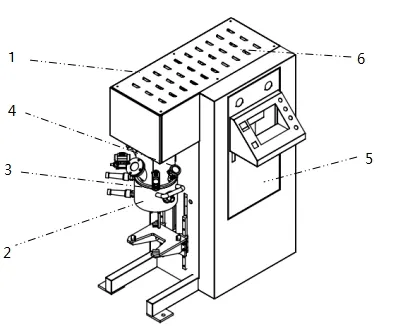

Structure Diagram

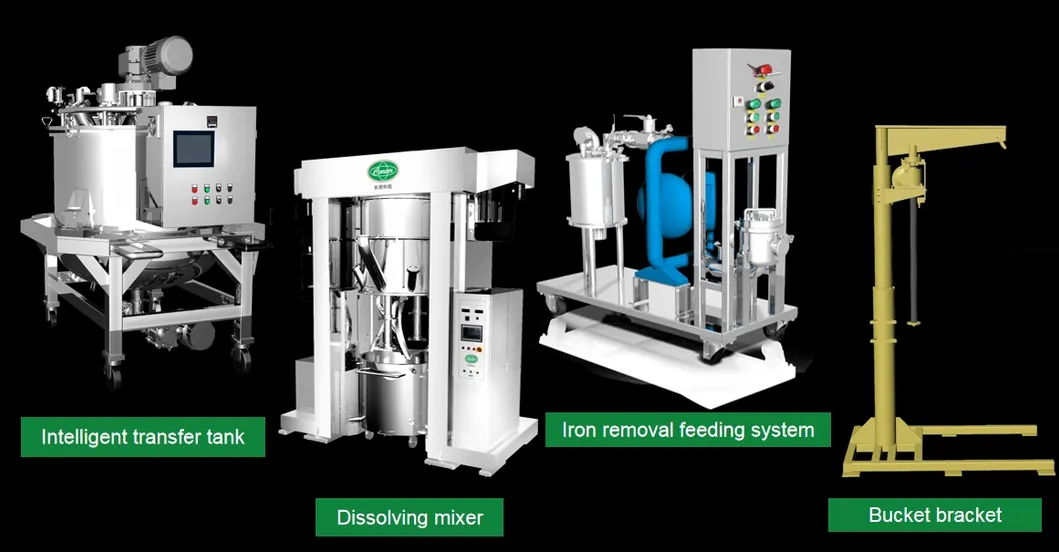

Main Equipment
Project Case Presentations

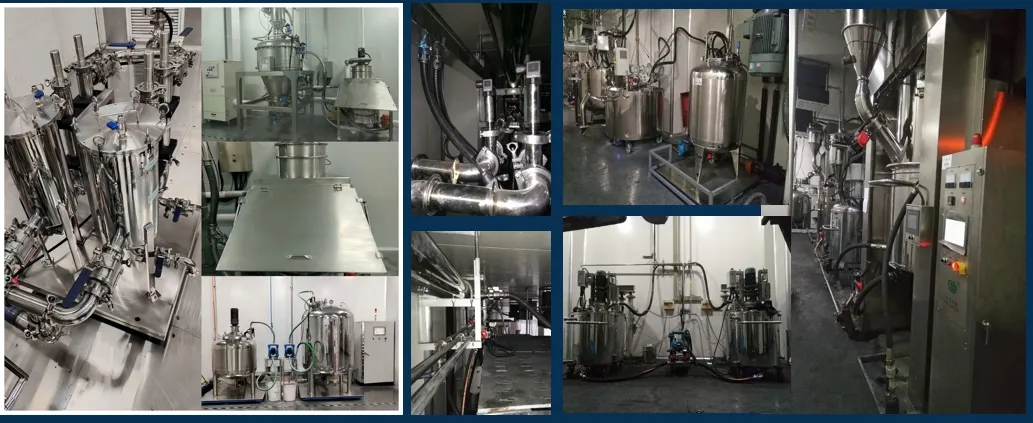

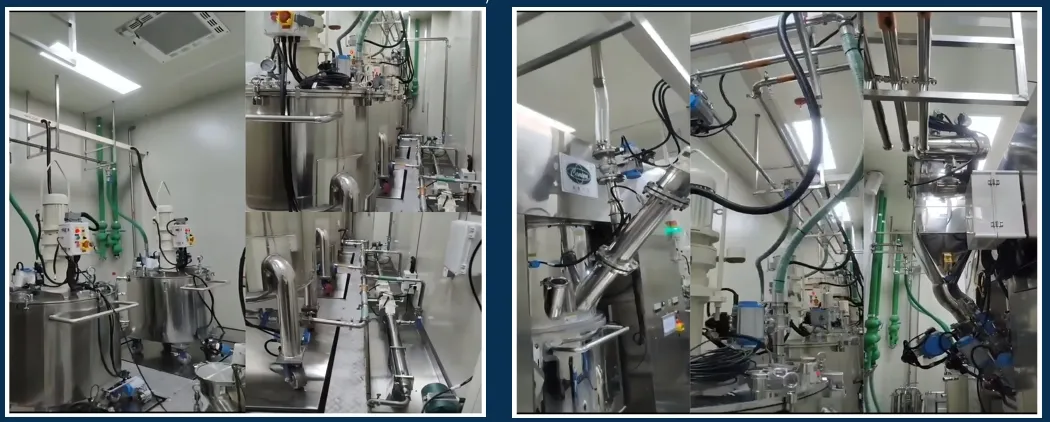

Case 1 Case 2

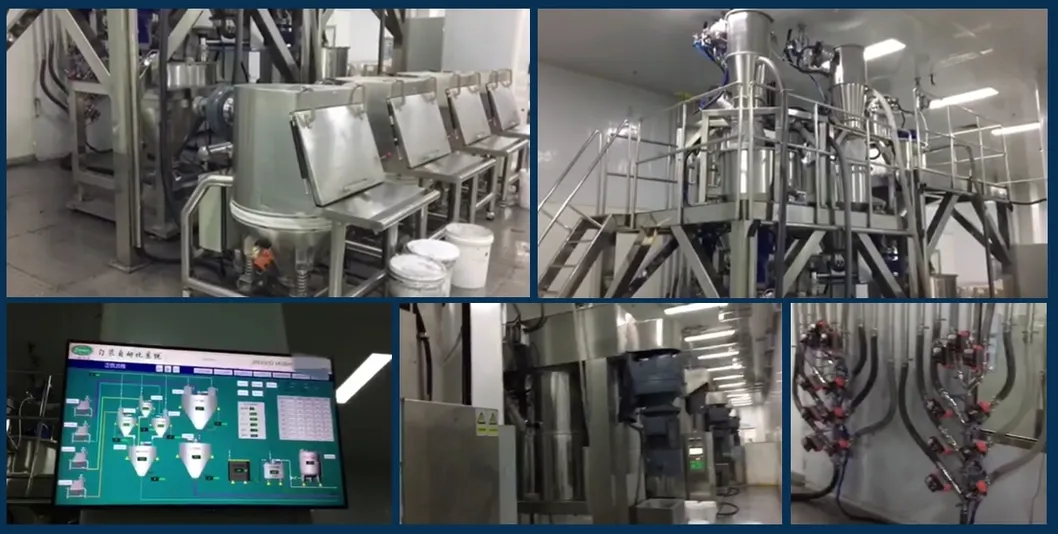

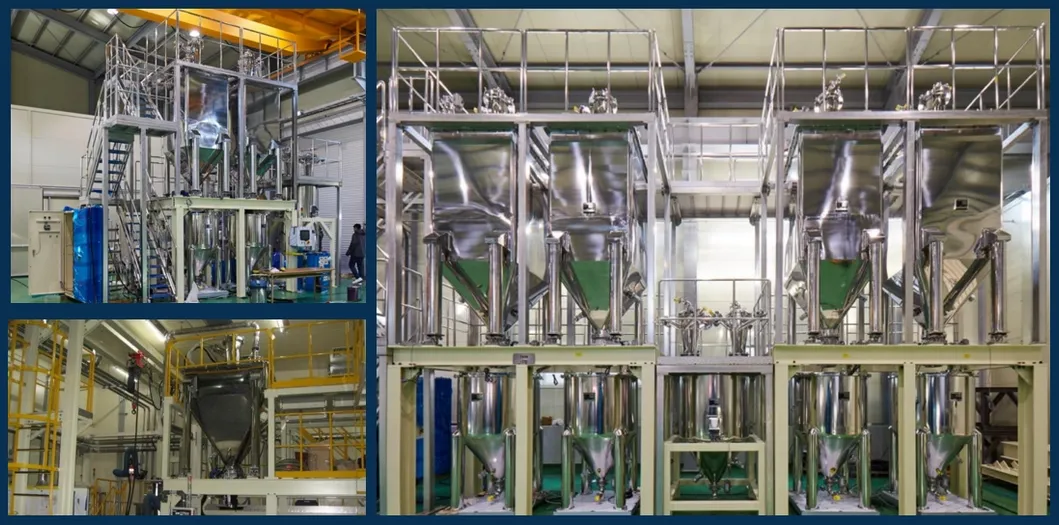

Case 3 Case 4

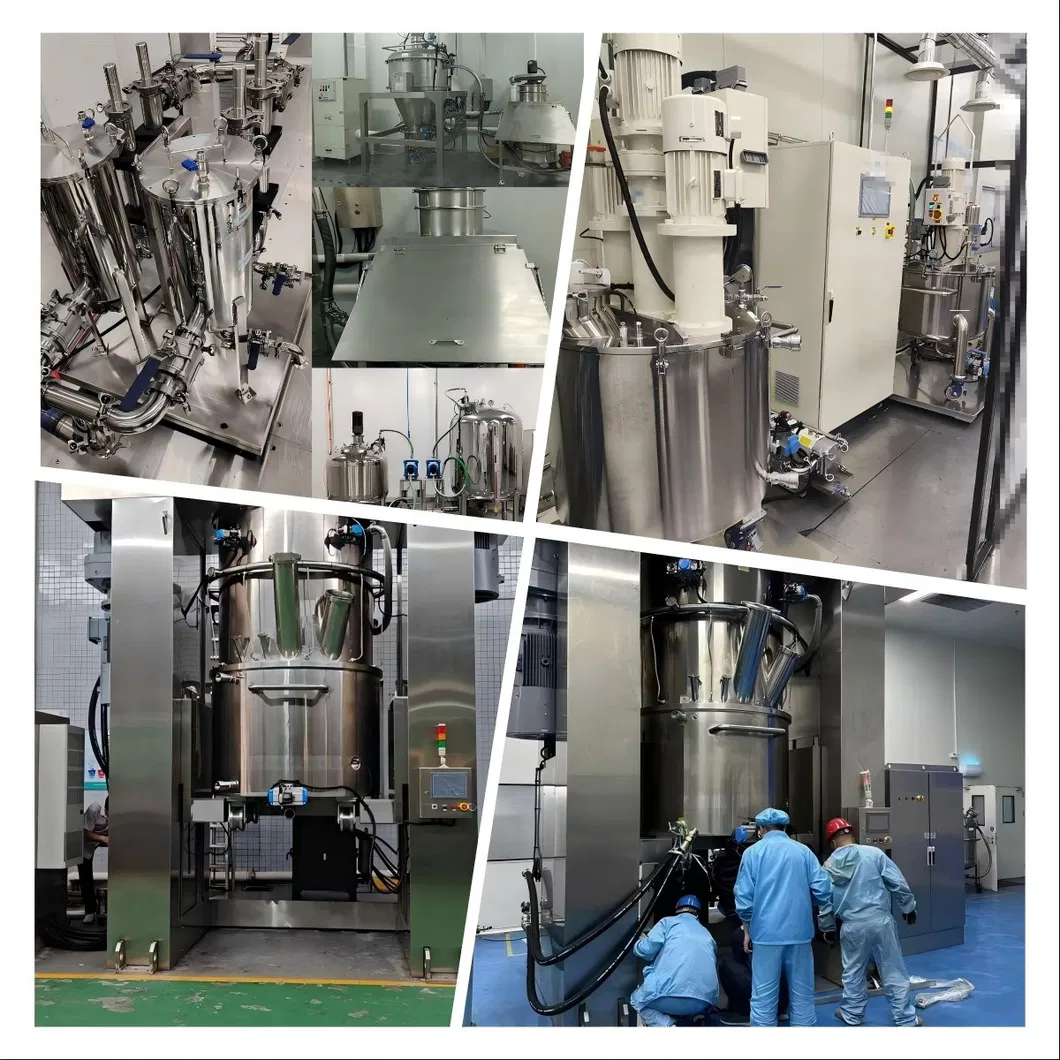

Product View
🛠️ After Sales Service
Service Commitments
Frequently Asked Questions
What is the typical delivery time after placing an order?
The usual delivery time is approximately 45-60 days, depending on specific configuration requirements.
How do you ensure the equipment meets my specific production needs?
You provide us with your production capacity and material details. We then develop a customized solution and establish a dedicated engineering communication group to ensure the equipment fits your process perfectly.
Do you provide on-site installation and debugging services?
Yes, we can send professional engineers to your local workshop to guide the installation, commissioning, and training of your staff.
Is the equipment capable of handling high-viscosity materials?
Absolutely. This dual planetary mixer is specifically designed for high-viscosity slurry, ranging from 1,000 to 100,000 MPa.s.
Can the mixing process be automated?
Yes, the equipment uses a PLC control system that allows for automatic operation based on your pre-set mixing process flow.
Does the machine support vacuum operation?
Yes, the mixing bucket is designed for vacuum sealing to effectively eliminate bubbles within the slurry during the mixing process.
