Usage
Biscuit, Cake, Pizza, Bread, Pasta, Noodle
Timing Device
With Timing Device
Control
Push Button or Touch Panel

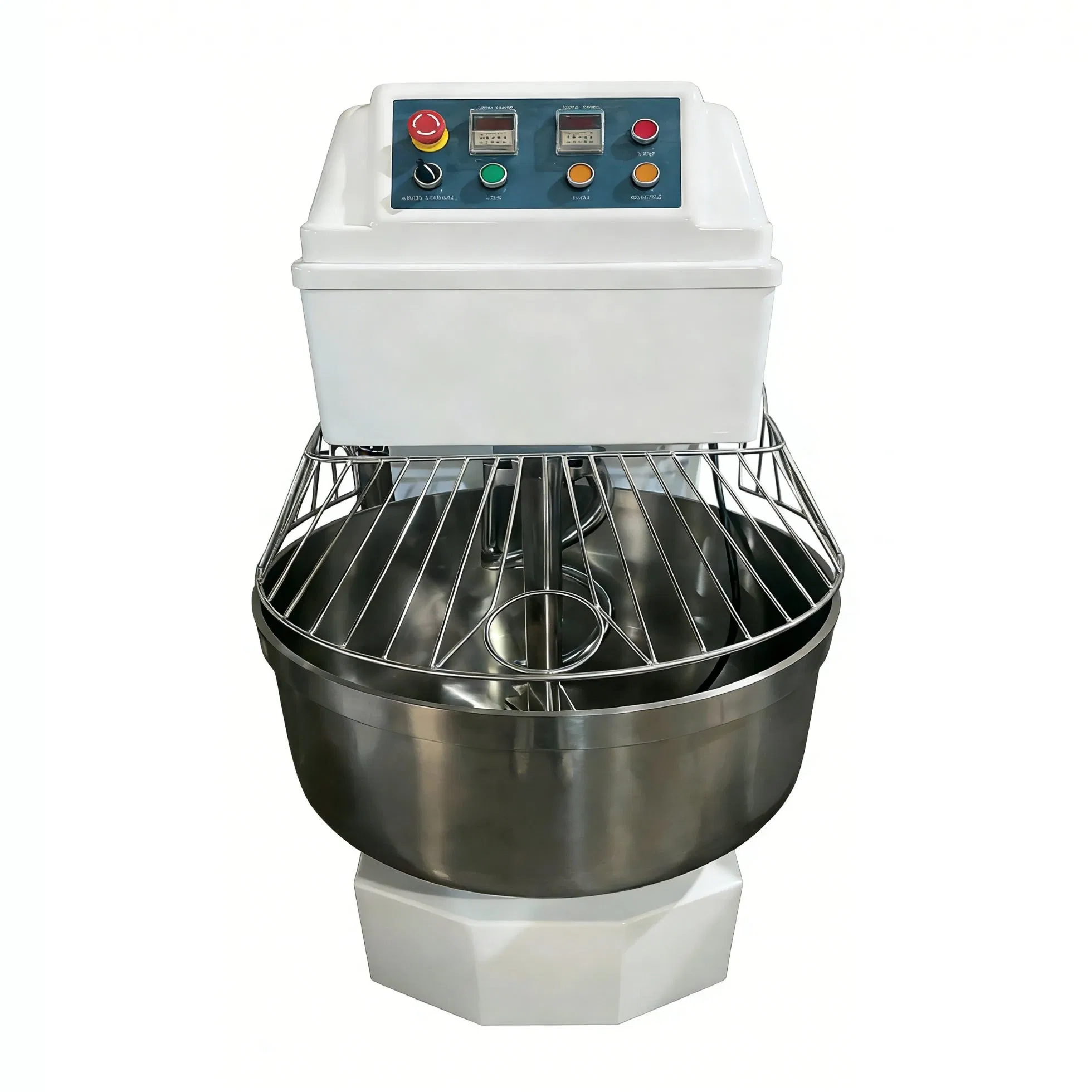

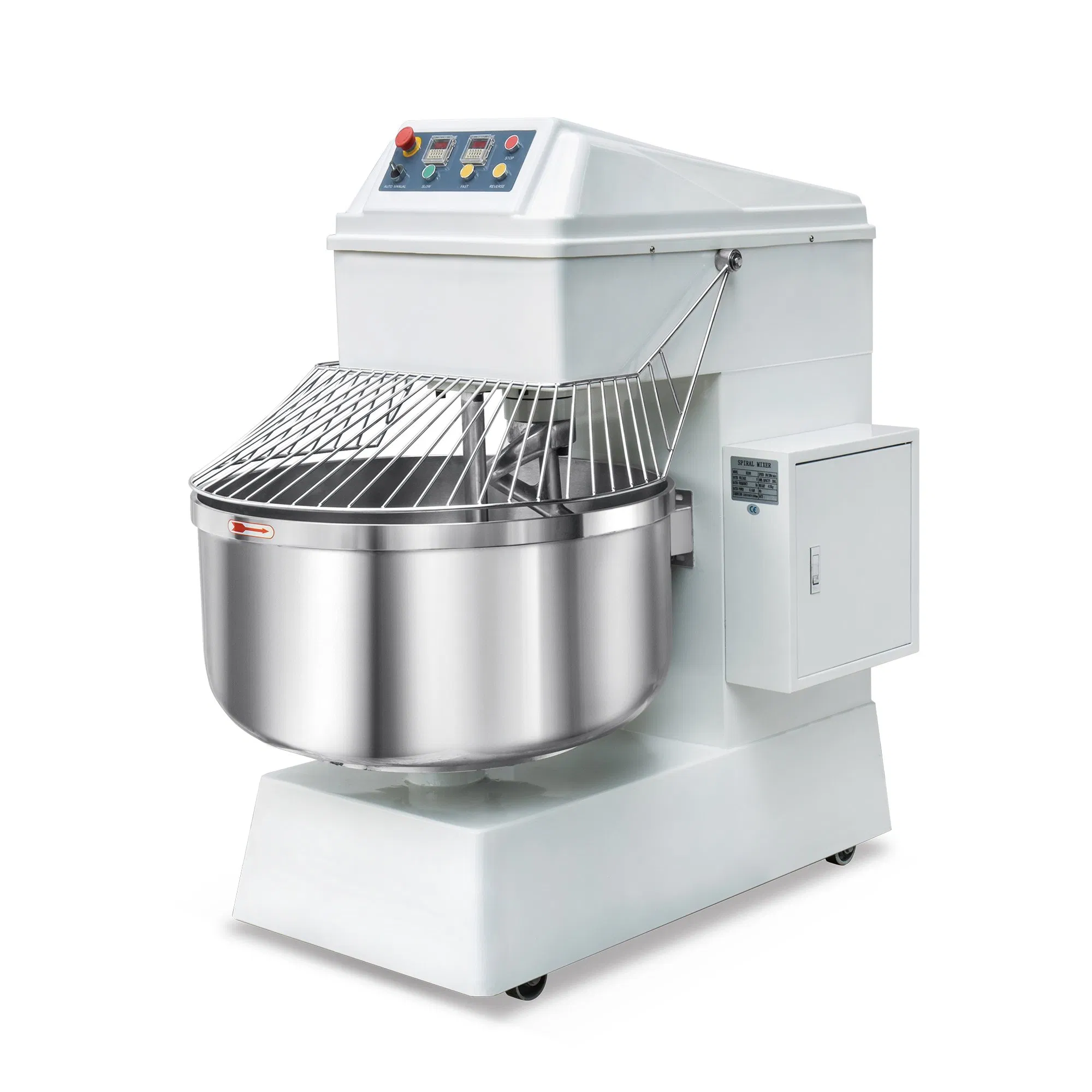

The HS260 2-Speed Double Motion Spiral Dough Mixer is a professional-grade solution designed for high-efficiency processing of bread, noodles, cakes, pizzas, buns, and dumplings. This equipment is highly versatile and applicable for food factories, large bakeries, restaurants, cafes, and commercial kitchens.
⚙️ Innovative gearless transmission structure for stable running and low noise.

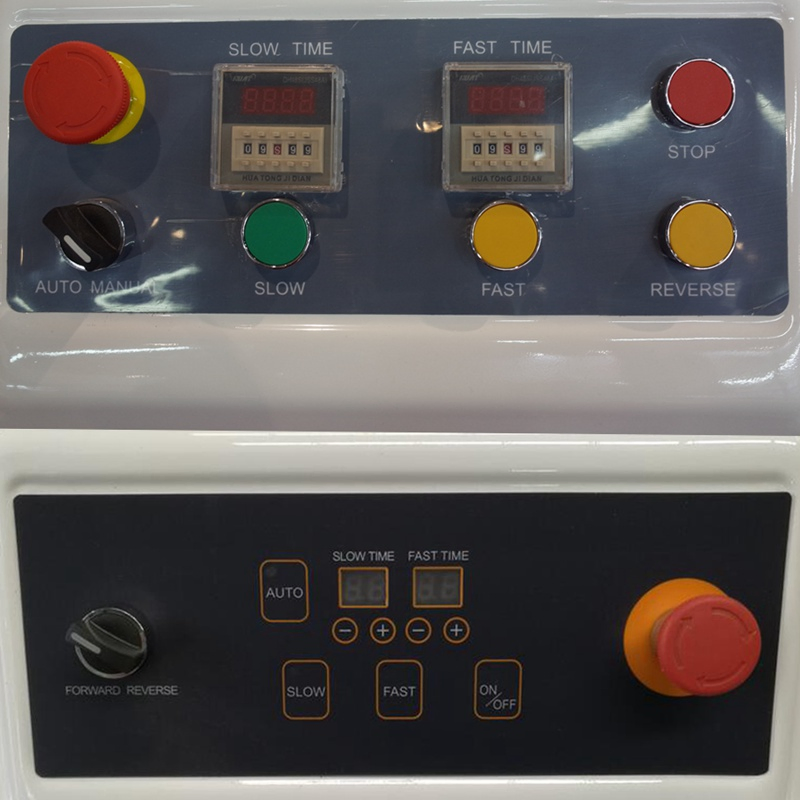

💻 Microcomputer-based touch control for precise operations.
⏱️ Automatic speed adjustment with integrated built-in timer.
🛠️ Dual control modes: Switch easily between manual and automatic operation.
💎 Exclusive technology featuring a durable stretch forming hardtop.
📜 Chinese patented product approved by State Intellectual Property Office.
Technical Specifications (HS260):
- Voltage: 380/450V 3Ph (50/60Hz)
- Power: 9000W
- Net Weight: 520kgs | Gross Weight: 580kgs
- Dimension: 133 x 84 x 156 cm
- Packing Size: 140 x 95 x 165 cm
| Model |
Bowl (L) |
Flour (kg) |
Voltage (V) |
Power (W) |
Mix Speed (RPM) |
Bowl Speed (RPM) |
Dimensions (cm) |
| HS10 | 10 | 4 | 110/220 1Ph | 750 | 0-240 | 0-24 | 55*34*53 |
| HS20 | 20 | 8 | 110/220 1Ph | 1500 | 150/200 | 15/20 | 73*39*90 |
| HS30 | 34 | 12 | 110/220 1Ph | 1500 | 150/200 | 15/20 | 75*44*90 |
| HS50 | 54 | 20 | 220-240 1Ph | 3000 | 150/200 | 15/20 | 85*51*97 |
| HS100 | 100 | 40 | 380 3Ph | 4100 | 150/200 | 15/20 | 108*65*138 |
| HS200 | 200 | 75 | 380 3Ph | 8600 | 100/200 | 10/20 | 133*84*156 |
| HS260 | 260 | 100 | 380 3Ph | 9000 | 100/200 | 10/20 | 133*84*156 |
Dough Mixer
Food Mixer
Kitchen Mixer
Electric Mixer
Cake Mixer
Frequently Asked Questions
❓ What is the production capacity of the HS260 mixer?
The HS260 model features a 260L bowl capacity and can handle up to 100kgs of dough per batch, making it ideal for high-volume commercial production.
❓ What are the benefits of the double motion spiral design?
The double motion (where both the hook and bowl rotate) ensures more thorough and uniform mixing, which is essential for developing the gluten structure in bread, pizza, and noodle dough.
❓ Can the mixing speed be controlled?
Yes, this model features 2-speed settings (100/200 RPM for mixing) and can be controlled either manually or automatically via a microcomputer touch panel with a built-in timer.
❓ Is this machine suitable for a quiet kitchen environment?
Yes. Thanks to the innovative gearless transmission structure, the HS260 operates with high stability and significantly low noise levels compared to traditional mixers.
❓ What power supply is required for operation?
The HS260 is a heavy-duty industrial machine requiring a 380V or 450V 3-Phase power source to support its 9000W high-performance motor.
❓ Is the equipment certified for international standards?
Yes, the equipment is CE certified and incorporates exclusive patented technology approved by the State Intellectual Property Office.
